| 制造商 | Molex, LLC |

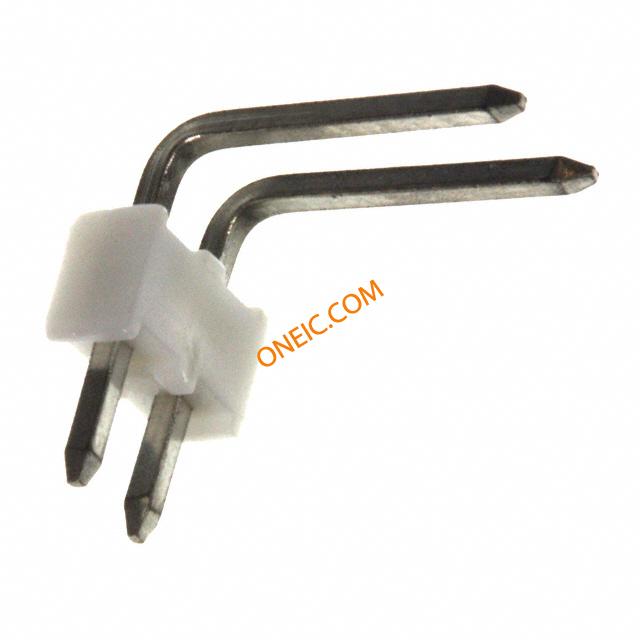

| 描述 | CONN HEADER 2POS .100 R/A TIN Molex 4094 Series 2.54mm Pitch 2 Way 1 Row Right Angle PCB Header, Solder Termination, 4A Headers & Wire Housings R/A PCB HDR 2P TIN PLATING Conn Unshrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Bag HEADER, R/A, SQ PIN, 0.1", 2WAY Header; Solid; 2; 250; 4; 20 Milliohms (Max.); 1500 V; Nylon; Brass Molex KK 254 系列 2.54mm节距 2路 (1排) 直角 PCB 针座, 焊接端接, 4A , 通孔 |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0022052021 A-4094-02A102 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 3000 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | 250 V | 极数 | :2 |
| 工作电压 | :250V | 接触电阻 | :20mohm |
| 最大额定电流 | 4A | ||
机械参数
| 颜色 | White | 间距 | 0.100" (2.54mm) |
| 重量 | 0.017 | 材料（通用） | :Nylon |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | :2.54mm |
| 安装类型 | Through Hole, Right Angle | 释放力 | :0.57N |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Tin |
| 排数 | 1 | 插入力 | :2N |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 端接样式 | Through Hole | 连接器颜色 | :White |
| 触点数 | 2 | 接触件端接 | :Solder |
| 位数 | 2 | 接触长度 - 配合 | 0.369" (9.37mm) |
| 接触镀层厚度 | 200µin (5.08µm) | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | :Header |
| 系列 | 4094 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Headers | 加载位置数 | All |
环境参数
| 工作温度 | :+75°C | ||
文档与媒体
相关型号
0022012027
molex
Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 2POS .100 W/RAMP Conn Housing F 2 POS 2.54mm Crimp ST Cable Mount Bag
0022013027
molex
Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount Bag Conn Housing F 2 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUS 2POS .100 W/RAMP/RIB
0010112023
molex
Conn Housing RCP 2 POS 2.54mm Crimp ST Bag CONN HOUSING 2POS .100 HI PRESS
0022012021
molex
Conn Housing F 2 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 2POS .100 W/O RAMP Conn Housing RCP 2 POS 2.54mm ST Bag
44812-0020
molex
Conn Socket Strip RCP 2 POS 2.54mm Solder ST Thru-Hole Tray CONN RECPT 2POS .100" 15GOLD PCB Headers & Wire Housings 2.54 Recept. 2 CKT Top/bottom Gold
22-01-2025
molex
Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount Bag 2 way socket housing,2.54mm pitch Headers & Wire Housings 2 CRT CRIMP HOUSING Conn Housing F 2 POS 2.54mm Crimp ST Cable Mount Bag CRIMP HOUSING, 2.54MM, 2WAY Header Connector,Cable Mount,PLUG,2 Contacts,SKT,0.1 Pitch,IDC Terminal .100 KK Crimp Housing; 2 Circuit Molex KK 254 系列 1 行 2.54mm 节距 2 路 直 母 电缆安装 压接连接器外壳
76650-0009
molex

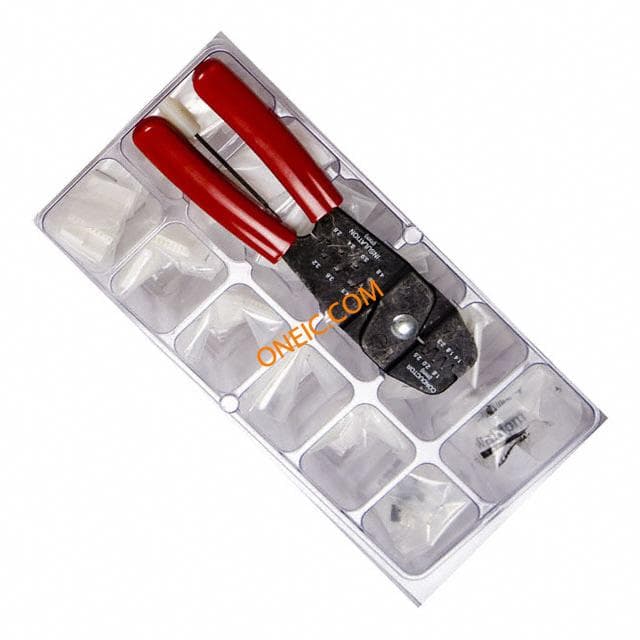

COMPONENT KITS, WIRE TO BOARD KIT 10,2,4,6,8POS 2.5A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2.54MM PITCH 250V 22-30 WIRE SIZE KIT CONN KK SERIES ASSORTED Headers & Wire Housings .100KK CONNECTOR KIT PREM CRIMPTOOL 184PC COMPONENT KITS, WIRE TO BOARD KIT 10,2,4,6,8POS 2.5A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2.54MM PITCH 250V ... Kit Description:Vertical and Right Angle Header and Receptacle, with Extraction and Premium Crimp ToolKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 12.75" by 6"Num. Pieces:184 kk-100 connector kit KK .100 Header & Housing kit with extraction tool and premium crimp tool
