点击放大查看
22-01-2025
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount Bag 2 way socket housing,2.54mm pitch Headers & Wire Housings 2 CRT CRIMP HOUSING Conn Housing F 2 POS 2.54mm Crimp ST Cable Mount Bag CRIMP HOUSING, 2.54MM, 2WAY Header Connector,Cable Mount,PLUG,2 Contacts,SKT,0.1 Pitch,IDC Terminal .100 KK Crimp Housing; 2 Circuit Molex KK 254 系列 1 行 2.54mm 节距 2 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0022012025 6471-02(I) |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 10000 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | ||
电气参数
| 量程（°/s） | :MOLEX - KK 6471 Series | 额定电压 | :250V |
| 工作电压 | :250V | 接触电阻 | :20mohm |
| 最大额定电流 | :2.5A | 绝缘电阻 | :50000Mohm |
| 连接器类型 - 电压输入 | Female | ||
机械参数
| 深度 | 12.7mm | 间距 | 2.54 mm |
| 长度 | 5.54mm | 重量 | 0.0024 |
| 导线线规 | 22-28 AWG | 安装类型 | Straight |
| 接触镀层 | :Tin | 排数 | 1 |
| 触头材料 | :Brass | 壳体材料 | Nylon |
| 触点数 | 2 | 接触件端接 | :Crimp |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | 6471 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Wire Housings | 应用细节 | Signal, Wire-to-Board |
环境参数
| 工作温度 | :+75°C | ||
文档与媒体
相关型号
08-50-0031
molex
Contact SKT Crimp ST Cable Mount Reel Crimp term,22-30AWG,hot tin,reel Headers & Wire Housings KK CE TRM 22-30G FEM Reel of 7000 CONTACT CRIMP, RECEPTACLE, KK, 30-22AWG, REEL 7K Crimp socket, reel Female 30...22 AWG, 08-50-0031, Molex Molex Cat Ear, KK 254 系列 母 压接接线端子, 压接, 镀锡触点
22-28-4023
molex
Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Bag Molex 42375 Series 2.54mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 4A Headers & Wire Housings BREAKAWAY HDR VERT 2 CONNECTOR, BREAKAWAY HEADER, 2WAY, 1ROW, 2.54MM Conn; Rect; Header; Breakaway; PCB; 2.54 mm Pitch; 2 Cir; Ver; KK Ser; Gold Molex KK 254 系列 2.54mm节距 2路 (1排) 直 引脚管座, 焊接端接, 4A , 通孔
22-01-2025
molex
Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount Bag 2 way socket housing,2.54mm pitch Headers & Wire Housings 2 CRT CRIMP HOUSING Conn Housing F 2 POS 2.54mm Crimp ST Cable Mount Bag CRIMP HOUSING, 2.54MM, 2WAY Header Connector,Cable Mount,PLUG,2 Contacts,SKT,0.1 Pitch,IDC Terminal .100 KK Crimp Housing; 2 Circuit Molex KK 254 系列 1 行 2.54mm 节距 2 路 直 母 电缆安装 压接连接器外壳
08-50-0032
molex
Contact SKT Crimp ST Cable Mount Bag Crimp terminal for socket housing Headers & Wire Housings SOCKET 22-30AWG BULK CONTACT, PIN, 22-30AWG, CRIMP, PK100 CRIMP SOCKET, 22-30AWG, PK1000 KK Cat Ear Crimp Terminal 4809, 22-30 AWG, Hot Tin, Bag Molex Cat Ear, KK 254 系列 母 压接接线端子, 压接, 镀锡触点
22-27-2021
Molex
Molex 6410 Series 2.54mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 4A Headers & Wire Housings 2 POS HEADER Conn Wire to Board HDR 2 POS 2.54mm Solder ST Thru-Hole Bag HEADER, SQUARE PIN, 2.54MM, 2WAY .100 KK Headers; Vertical; 2 Circuit Molex KK 254 系列 2.54mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 4A , 通孔

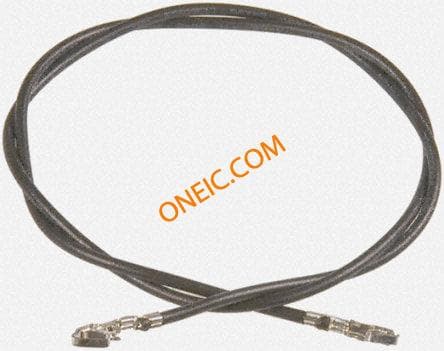

88941-0700
