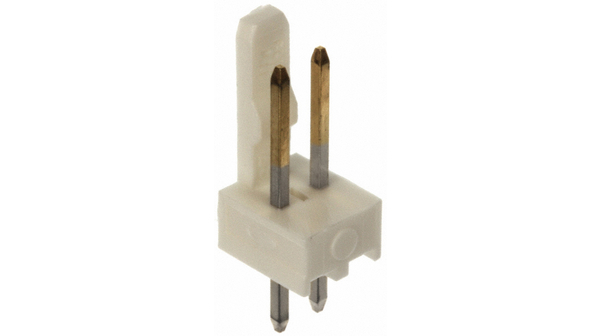

点击放大查看
22-29-2021
| 制造商 | Molex, LLC |
| 描述 | Molex 6410 Series 2.54mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 4A Headers & Wire Housings 2 PIN F/LK HEADER Conn Wire to Board HDR 2 POS 2.54mm Solder ST Thru-Hole Bag HEADER, VERTICAL, SQ PIN, 0.1", 2WAY 2.54MMKKHDRVTFRICLKVRA.5AU2CKT Pin header 1 x 2P, 22-29-2021, Molex Molex KK 254 系列 2.54mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 4A , 通孔 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | KK | 零件号别名 | 0022292021 AE-6410-02A(501) |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 2500 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :MOLEX - KK 6410 Series | 额定电压 | 250 V |
| 工作电压 | :250V | 接触电阻 | :20mohm |
| 最大额定电流 | 4A | ||
机械参数
| 间距 | 2.54mm | 重量 | 0.000216 |
| 端接方式 | Solder | 引脚间距 | :2.54mm |
| 安装类型 | Straight | 接触镀层 | Gold |
| 排数 | 1 | 材料表面处理 | :- |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 端接样式 | Through Hole | 触点数 | 2 |
| 接触件端接 | :Through Hole Vertical | 外部壳体材料 | :Nylon UL94V-0 |
产品信息
| 类型 | Wire to Board | 连接器性别 | :Header |
| 系列 | 6410 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Headers | ||
环境参数
| 工作温度 | :75°C | ||
