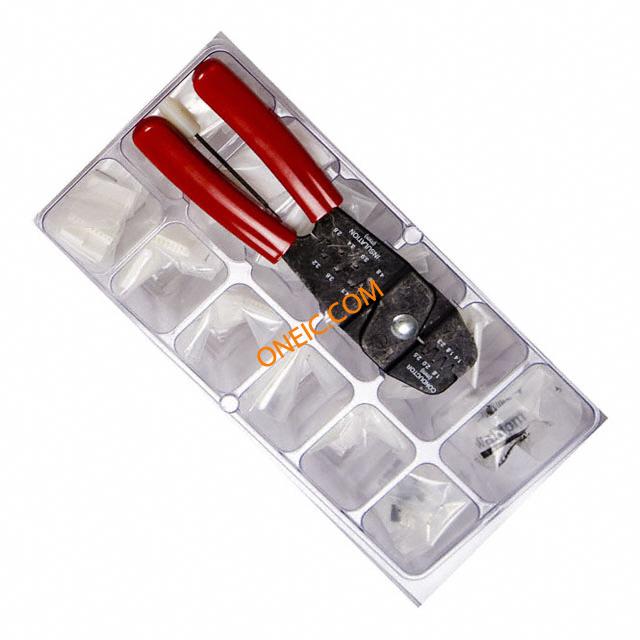

76650-0009
| 制造商 | Molex, LLC |
| 描述 | COMPONENT KITS, WIRE TO BOARD KIT 10,2,4,6,8POS 2.5A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2.54MM PITCH 250V 22-30 WIRE SIZE KIT CONN KK SERIES ASSORTED Headers & Wire Housings .100KK CONNECTOR KIT PREM CRIMPTOOL 184PC COMPONENT KITS, WIRE TO BOARD KIT 10,2,4,6,8POS 2.5A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2.54MM PITCH 250V ... Kit Description:Vertical and Right Angle Header and Receptacle, with Extraction and Premium Crimp ToolKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 12.75" by 6"Num. Pieces:184 kk-100 connector kit KK .100 Header & Housing kit with extraction tool and premium crimp tool |
| 分类 |
商业参数
| 商标名 | KK | 标准包装规格 | 1 |
| 零件号别名 | 0766500009 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 电压 | 250 V | 额定电压 | 250 V |
| 最大额定电流 | 2.5 A | ||
机械参数
| 间距 | 2.54 mm | 包装方式 | Plastic Box with Bin Guide |
| 导线线规 | 30-22 | 安装类型 | Right, Straight |
| 行程角度 | Vertical/Right Angle | 连接器类型 | Receptacle and Header |
| 端接样式 | SMD, Through Hole | 第一触头极性 | Pin (Male), Socket (Female) |
产品信息
| 系列 | 76650 | 值 | 184 pcs - Assorted 30 ~ 22 AWG Housings, Headers, Crimp Tool, Extraction Tool |
| 套件类型 | Circuit Terminal Header, Housing | 制造商全称 | 76650 |
| 产品子类型 | Connector Kits | 配置 | Wire-to-Board |
| 应用细节 | Vending and Gaming Machines, Production Equipment, Industrial Instruments, Energy and Power | ||
文档与媒体
相关型号
63811-1000
Molex
Crimpers UNIVERSAL CRIMP TOOL Hand crimper for 1.57mm dia. Standard Hand Crimper Handtool Type CRIMP TOOL Hand Tool; Non-ratched Crimping tool, 63811-1000, Molex Molex HANDTOOL 系列 接端 压接工具 , 适用于30 → 14 AWG 线规格

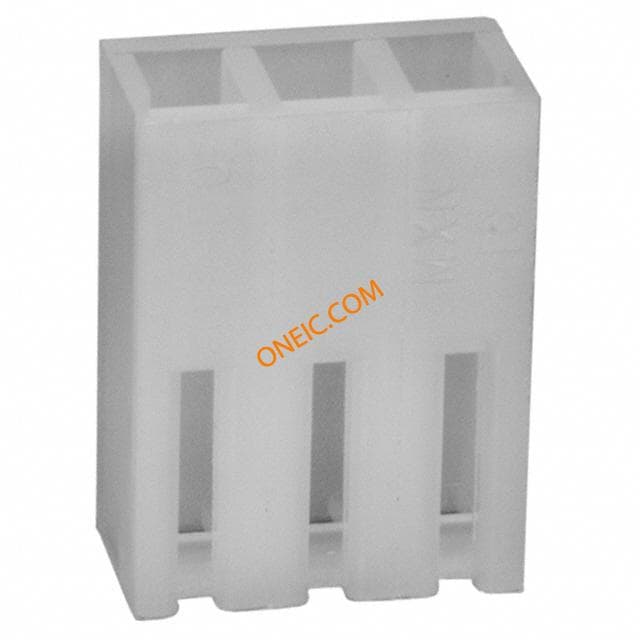

09-50-7031
Molex Connector Corporation
CONN HOUSING 3POS .156 W/O RAMP 3.96mm,KK,housing,o/ramp,nylon,3way Headers & Wire Housings HSG 3P W/O LKG RAMP Conn Housing F 3 POS 3.96mm Crimp ST Cable Mount Bag HOUSING FEMALE, 3WAY .156 TERMINAL HOUSING; W/O LCK RAMP; 3 CIRCUITS Molex KK 396 系列 3.96mm 节距 3 路 直 母 电缆安装 压接连接器外壳
09-50-7041
Molex Connector Corporation
CONN HOUSING 4POS .156 W/O RAMP 3.96mm,KK,housing,o/ramp,nylon,4way Headers & Wire Housings HSG 4P W/O LKG RAMP Conn Housing F 4 POS 3.96mm Crimp ST Cable Mount Bag HOUSING, 3.96MM, 4WAY .156 TERMINAL HOUSING; W/O LCK RAMP; 4 CIRCUITS Molex KK 396 系列 3.96mm 节距 4 路 直 母 电缆安装 压接连接器外壳
09-50-7021
Molex Connector Corporation
CONN HOUSING 2POS .156 W/O RAMP Headers & Wire Housings HSG 2P W/O LKG RAMP Conn Housing F 2 POS 3.96mm Crimp ST Cable Mount Bag PLUG & SOCKET HOUSING, RECEPTACLE, 2POS, 3.96MM .156 TERMINAL HOUSING; W/O LCK RAMP; 2 CIRCUITS Molex KK 396 系列 1 行 3.96mm 节距 2 路 直 母 电缆安装 压接连接器外壳

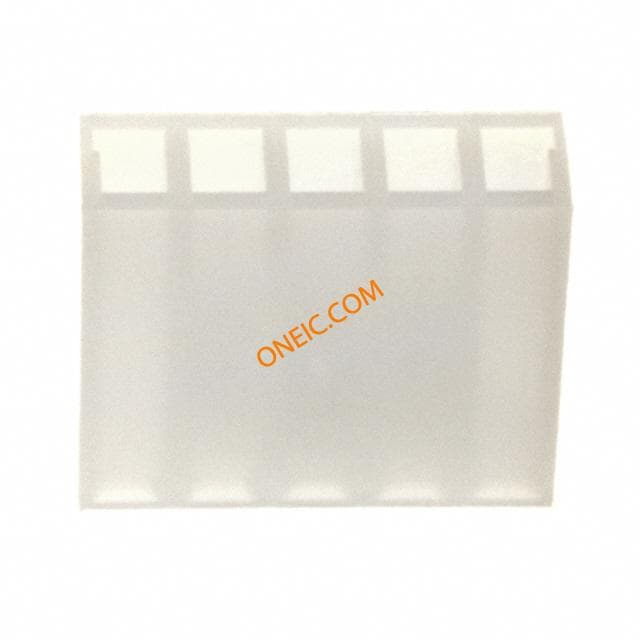

09-50-7051
Molex Connector Corporation
CONN HOUSING 5POS .156 W/O RAMP 3.96mm,KK,housing,o/ramp,nylon,5way Headers & Wire Housings HSG 5P W/O LKG RAMP Conn Housing F 5 POS 3.96mm Crimp ST Cable Mount Bag Conn Housing RCP 5 POS 3.96mm Crimp ST Cable Mount Bag HOUSING FEMALE, 5WAY .156 TERMINAL HOUSING; W/O LCK RAMP; 5 CIRCUITS Molex KK 396 系列 3.96mm 节距 5 路 直 母 电缆安装 压接连接器外壳
09-50-7061
Molex Connector Corporation
CONN HOUSING 6POS .156 W/O RAMP Headers & Wire Housings HSG 6P W/O LKG RAMP Conn Housing F 6 POS 3.96mm Crimp ST Cable Mount Bag PLUG & SOCKET HOUSING, RECEPTACLE, 6POS, 3.96MM .156 TERMINAL HOUSING; W/O LCK RAMP; 6 CIRCUITS

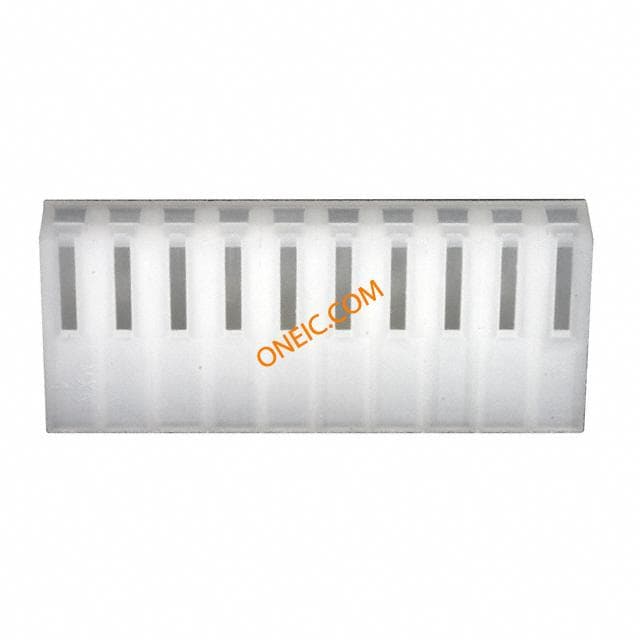

09-50-7101
