点击放大查看

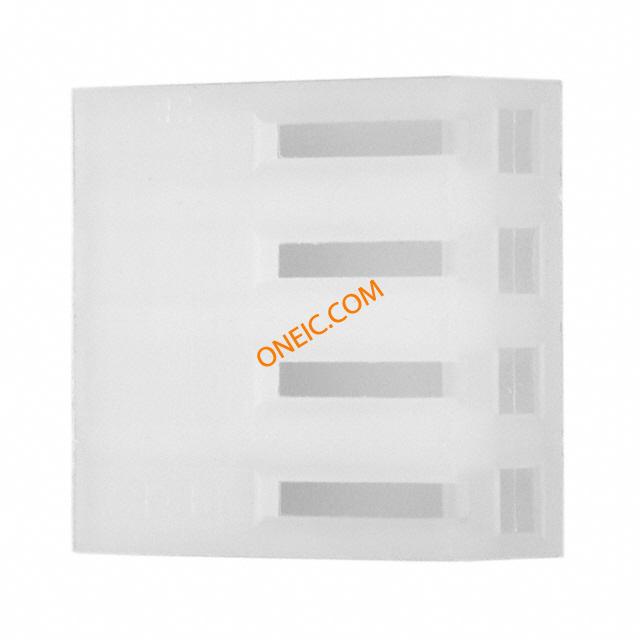

09-50-7041

制造商	Molex, LLC
描述	CONN HOUSING 4POS .156 W/O RAMP 3.96mm,KK,housing,o/ramp,nylon,4way Headers & Wire Housings HSG 4P W/O LKG RAMP Conn Housing F 4 POS 3.96mm Crimp ST Cable Mount Bag HOUSING, 3.96MM, 4WAY .156 TERMINAL HOUSING; W/O LCK RAMP; 4 CIRCUITS Molex KK 396 系列 3.96mm 节距 4 路直母电缆安装压接连接器外壳
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0009507041 2139-4C 9507041
产品类别	Headers & Wire Housings	标准包装数量	1
工厂包装数量	1500

合规参数

RoHS	Compliant	SVHC	:No SVHC (20-Jun-2013)
海关税号	85366990

电气参数

量程（°/s）

:MOLEX - KK 2139 Series

机械参数

颜色	Natural	深度	15.88mm
间距	0.156" (3.96mm)	宽度	6.4mm
长度	15.75mm	重量	0.011
包装方式	Bulk	触头类型	Non Gendered
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
接触镀层	:-	安装样式	Wire
排数	1	触头材料	:-
壳体材料	Nylon	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	4
接触件端接	Crimp	位数	4

产品信息

备注	Contacts Not Provided	连接器性别	Female
系列	2139	CAD图纸	3D CAD Model
产品子类型	Receptacles / Sockets - Housings	适用产品/相关产品	KK Connector

文档与媒体

PDF 文档

09-50-7041
