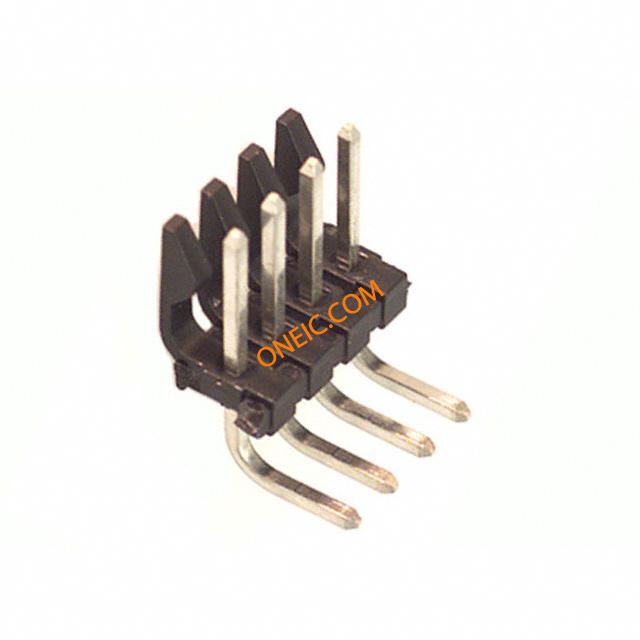

0026481046
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole Bag CONN HEADER 4POS .156 R/A TIN |
| 分类 |
商业参数
| 交货时间 | 33 Days | 子类别 | Connector Headers and PCB Receptacles |
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 mohm | 最大额定电流 | 7/Contact A |
| 最小输入电压 | 250V | 最小供电电压 | 250V |
机械参数
| 颜色 | Black | 深度 | 20.29 mm |
| 间距 | 0.156" (3.96mm) | 包装方式 | Bag |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded, Breakaway | 接触镀层 | Tin Over Copper |
| 紧固类型 | Friction Lock | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Polyester | 总长度 | 15.8 mm |
| 触点数 | 4 | 位数 | 4 |
| 接触长度 - 配合 | 0.450" (11.43mm) | 接触镀层厚度 | 60µin (1.52µm) |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 行业别名 | 26-48-1046, 26481046 | 加载位置数 | All |
环境参数
| 工作温度 | 0C to 75C | ||
相关型号
0009503041
molex
Conn Housing RCP 4 POS 3.96mm Crimp ST Cable Mount Bag Conn Housing F 4 POS 3.96mm Crimp ST Cable Mount Bag CONN HOUSING 4POS .156 W/RAMP
0009523045
molex
Conn Socket Strip RCP 4 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 4POS TIN PCB
0009482047
molex
Conn Socket Strip RCP 4 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 4POS TIN PCB
0009482049
molex
Conn Socket Strip RCP 4 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT BOTTOM 4POS TIN PCB
0009481045
Molex, LLC
Buy now, ships today. 0009481045 - 4 Position Receptacle Connector 0.156" (3.96mm) Through Hole Gold from Molex. View datasheets, pricing and availability from DigiKey now!
0009485045
molex
Conn Socket Strip RCP 4 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 4POS GOLD PCB
0009482042
molex
Conn Socket Strip RCP 4 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT BOTTOM 4POS TIN PCB
0009523048
molex
Conn Socket Strip RCP 4 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 4POS TIN PCB
0009508043
Molex
Conn Housing F 4 POS 3.96mm Crimp ST Cable Mount Bag CONN HOUSING 4POS .156 W/POLAR Connector
0009484048
Molex
Conn Socket Strip RCP 4 POS 3.96mm Solder ST Thru-Hole Tray CONN RECEPT 4POS .156 VERT PCB
0009624047
Molex
Conn Socket Strip RCP 4 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 4POS GOLD
0009482040
Molex
Conn Socket Strip RCP 4 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 4POS TIN PCB
0009521046
Molex
Conn Socket Strip RCP 4 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 4POS TIN PCB
09-62-3043
Molex Connector Corporation
CONN RECEPT 4POS .156 VERT PCB Headers & Wire Housings 3.96MM PCB CONN Top Entry 4 CKT Conn Socket Strip SKT 4 POS 3.96mm Solder ST Thru-Hole Tray
09-52-3043
Molex Connector Corporation
CONN RECEPT 4POS .156 VERT PCB Headers & Wire Housings PCB RECPT 4P TOP ENTRY Conn Socket Strip RCP 4 POS 3.96mm Solder ST Thru-Hole Tray

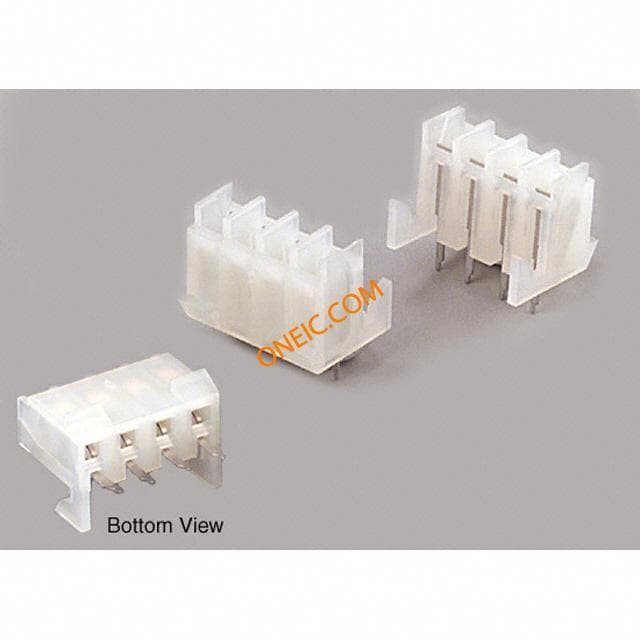

09-52-3042
Molex Connector Corporation
CONN RECEPT 4POS .156 VERT PCB Headers & Wire Housings PCB RECPT 4P BOTTOM ENTRY Conn Socket Strip RCP 4 POS 3.96mm Solder ST Thru-Hole Tray
09-62-3042
Molex Connector Corporation
CONN RECEPT 4POS .156 VERT PCB Headers & Wire Housings 3.96MM PCB CONN Bottom Entry 4 CKT Conn Socket Strip RCP 4 POS 3.96mm Solder ST Thru-Hole Tray

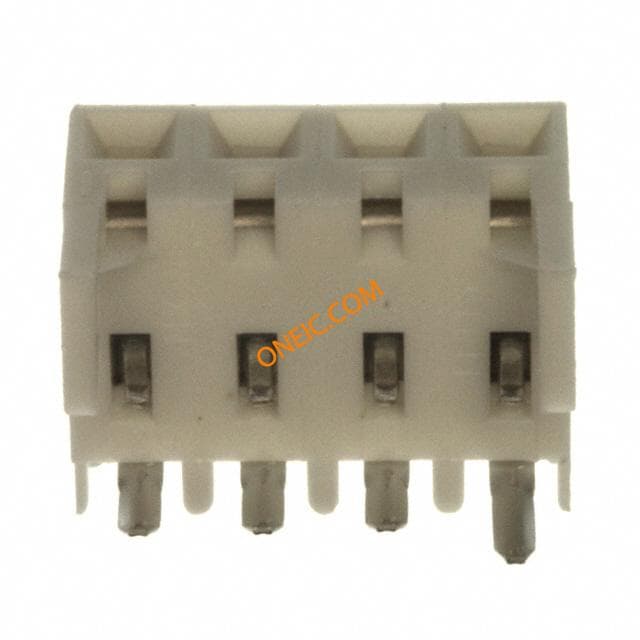

09-48-3045
Molex Connector Corporation
CONN RECEPT 4POS .156 R/A PCB Headers & Wire Housings 3.96MM BOARD CONN RA 4POS GOLD Conn Socket Strip RCP 4 POS 3.96mm Solder RA Thru-Hole Tray
09-50-7041
Molex Connector Corporation
CONN HOUSING 4POS .156 W/O RAMP 3.96mm,KK,housing,o/ramp,nylon,4way Headers & Wire Housings HSG 4P W/O LKG RAMP Conn Housing F 4 POS 3.96mm Crimp ST Cable Mount Bag HOUSING, 3.96MM, 4WAY .156 TERMINAL HOUSING; W/O LCK RAMP; 4 CIRCUITS Molex KK 396 系列 3.96mm 节距 4 路 直 母 电缆安装 压接连接器外壳

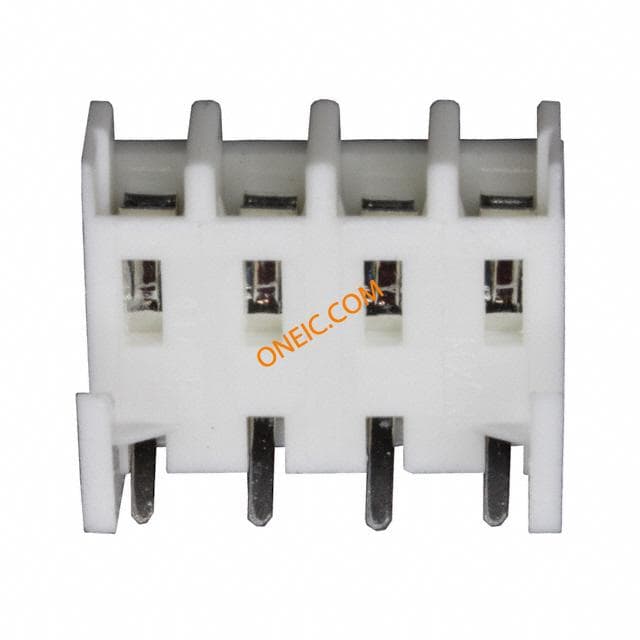

09-48-4049
