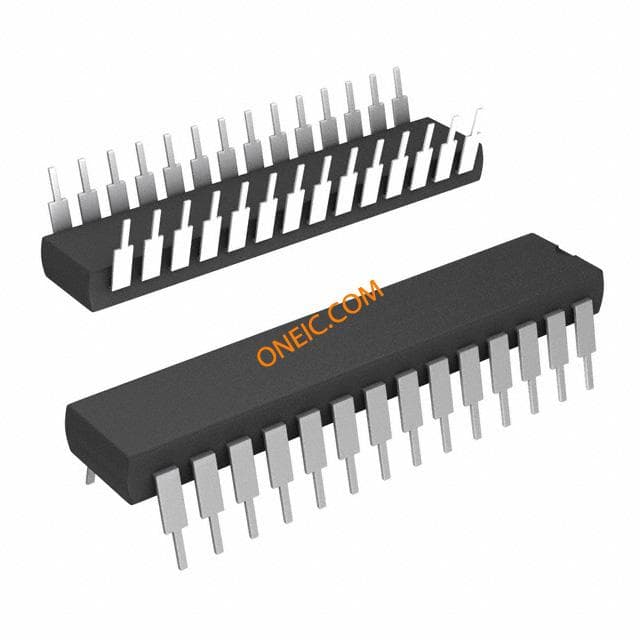

PIC16F873A-I/SP
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-Bit PIC16 PIC RISC 7KB Flash 5V 28-Pin SPDIP Tube MCU 8-bit PIC16 PIC RISC 7KB Flash 5V 28-Pin SPDIP Tube 8 bit MCU SPDIP28 IC MCU 8BIT 7KB FLASH 28SDIP PIC16F873A-I/SP, 8 bit Microcontroller PIC 20MHz 7.2kb Flash, 192B RAM, I2C SPI 28-Pin SPDIP 8-bit Microcontrollers - MCU 7KB 192 RAM 22 I/O IC, 8BIT FLASH MCU, 16F873, SDIL28 IC, 8-BIT FLASH MCU, TUBE15 28-Pin,7KBFlash,192RAM,22I/O PIC microcontroller; EEPROM:128B; SRAM:192B; 20MHz; DIP28; 2÷5.5V Microcontroller 8 Bit DIL-28, PIC16F873A-I/SP, Microchip Microchip PIC16F 系列 8 bit PIC MCU, 20MHz, 7.2 kB、128 B ROM 闪存, 192 B RAM, 28针 SPDIP封装 PIC16F 7K SPDIP28 85°C |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 15 |
| 产品类别 | 8-bit Microcontrollers - MCU | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 15 | 标准封装名称 | PDIP |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | :16F873 | 无铅定义 | RoHS-conform |
| 认证机构 | No | ||
电气参数
| 输入端 | 22 | 转速 | 20 MHz |
| 定时器 | 1 x 16 bit, 2 x 8 bit | 存储器 | 7KBytes |
| RAM 大小 | 192 byte | 内核大小 | 8-Bit |
| 核心类型 | PIC | 接口 | I2C/SPI/USART |
| 时钟速率 | 20 MHz | 比较器数量 | 2 |
| 分辨率 | 10bit | EEPROM容量 | 128Byte |
| 存储器容量 | 7KByte | 存储器类型 | FLASH |
| I/O 数量 | 22 | 电压范围 | 2-5.5V |
| 位数 | 10 | 额定电压 | 4 → 5.5 V |
| 看门狗定时器 | 1 | 时钟频率 | :20MHz |
| 数据转换器 | A/D 5x10b | 最大频率 | 20MHz |
| DAC数量 | 2 | 振荡器类型 | External |
| 供电电压 | 5 V | 数字I/O线数 | 22pins |
| 分辨率（位） | 10Bit | 串行接口 | 1 |
| 通道数量 | 1 | 模拟输入/输出 | 2 |
| 非易失性存储器 | 128Bytes | 程序存储器大小 | 7 KB |
| 程序存储器类型 | Flash | ADC/DAC 数量 | 5 |
| 8位定时器数量 | 2 | 最小供电电压 | 2...5.5V |
| 频率（中心/带宽） | 16 bit, 8 bit | 每元件位数 | 10 bit |
| 供电电压 (Vcc/Vdd) | 4 V ~ 5.5 V | ||
机械参数
| 宽度 | 7.49mm | 高度 | 3.43mm |
| 长度 | 35.18mm | 重量 | 0.000001 |
| 包装方式 | TUBE | 引脚样式 | Through Hole |
| 端接方式 | :Through Hole | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 引脚数 | :28 |
| 封装形式 | 28SPDIP | 冷却的封装 | SPDIP |
| 材料表面处理 | :- | 总长度 | 34.67 |
| 包装数量 | SPDIP | 尺寸/外形 | 35.18 x 7.49 x 3.43mm |
| 位数 | 28 | 外壳尺寸-插件 | 3.3 |
| 供应商器件封装 | 28-SPDIP | 核心数/总线宽度 | 8 Bit |
| 脉冲宽度失真（最大） | 2(10 bit) (CCP) | ||
产品信息
| SPI | 1 | SPG | 150 |
| USB | No | 类型 | PIC microcontroller |
| 系列 | PIC16 | 协议 | 1 |
| 匹配码 | PIC16F873A-I/SP | CAN编号 | 0 |
| 闪存大小 | :7KB | SPI编号 | 1 |
| 片内RAM（通道数×位宽） | 5-chx10-bit | 外设 | Brown-out Detect/Reset, POR, PWM, WDT |
| 架构 | RISC | 连接性 | I²C, SPI, UART/USART |
| 核心处理器 | PIC | 单元数量 | 1 |
| 定时器数量 | 3 | 控制器系列 | :PIC16F |
| 标准交期 | 14 weeks | 射频系列/标准 | PIC16 |
| 使用的IC/零件 | :PIC16F873A-I/SP | DigiKey可编程 | Yes |
| 印刷电路板数量 | 28 | 微控制器特性 | :ISP/AUSART/MI²C, PWM, BOR, WDT, ADC, CCP, COMPARATOR |
| A/D转换器数量 | :5 | ||
环境参数
| 温度范围 | :Industrial | 测试温度 | -40°C |
| 工作温度 | -40 to 85 °C | ||
