DV164120
| 制造商 | Microchip Technology Inc. |

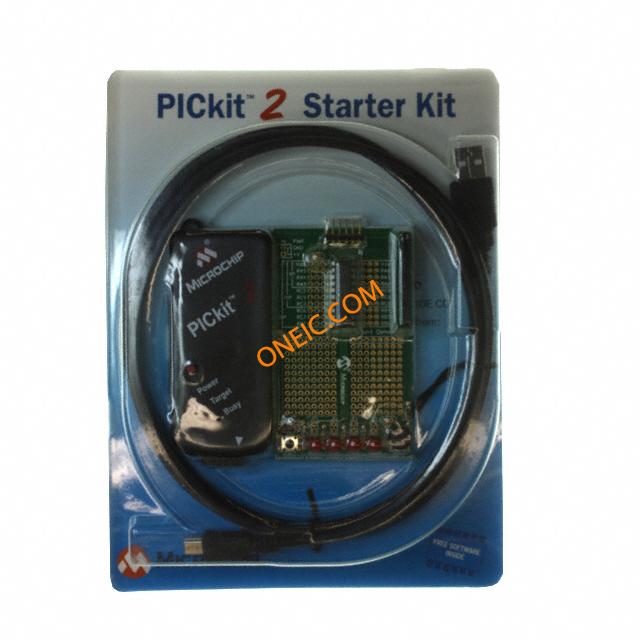

| 描述 | Starter Kit Contains A PIC Kit 2 Microcontroller Programmer And A PIC Kit 2 Low Pin Count DEMO Board In-Circuit Debuggers PICkit 2 8/14/20P Flash FLASH Starter Kit PICkit 2 KIT STARTER PICKIT 2 DV164120, Development Kit, 8 bit, PIC PICKIT 2, FS USB, STARTER KIT PICKIT2STARTERKIT Programmer: microcontrollers; USB; ICSP, USB B; No.of diodes:3 |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | In-Circuit Debugger Kits |
| 单位包装 | 1 | 产品类别 | In-Circuit Debuggers |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Supplier Unconfirmed | 海关税号 | 85423190 |
| FWFT支持（先入先出温度） | :PICmicro | 无铅定义 | RoHS-conform |
电气参数
| 核心类型 | PIC | 接口 | USB |
| 工作模式 | PC Host mode, standalone programmer | 供电电压 | 2.5 V to 5 V |
| 元件数量 | 3 | ||
机械参数
| 重量 | 0.24 | ||
产品信息
| 类型 | Development Kit | 内容 | Board, PICkit™ 2 Programmer, Cable, CD |

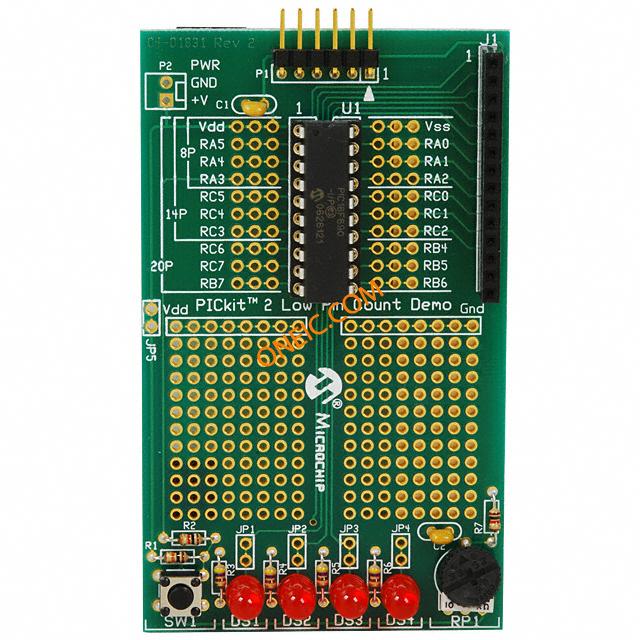

| 产品特性 | :Low Pin Count Demo Board Supporting 8/14/20-Pin Mid-Range PICmicro Microcontrollers | 功能 | PICkit 2 starter kit contains a PICkit 2 microcontroller programmer and a PICkit 2 Low pin count demo board containing a PIC16F690 PDIP for getting started with programming baseline and midrange flash microcontrollers |
| 包含附件 | PIC16F690 | 匹配码 | PICKIT 2 |
| 套件内容 | :PICkit 2 Development Programmer, PICkit 2 Starter Kit CD ROM | 通信接口 | USB |
| 按键数 | 1 | 开发套件 | STARTERKIT |
| 单元数量 | 1 | 可编程类型 | microcontrollers |
| 标准交期 | 6 weeks | 工具类型/特性 | PIC16F690 |
| 使用的IC/零件 | :Programmer | 适用产品/相关产品 | AC162061, AC164110, DM164120-1 |
