点击放大查看

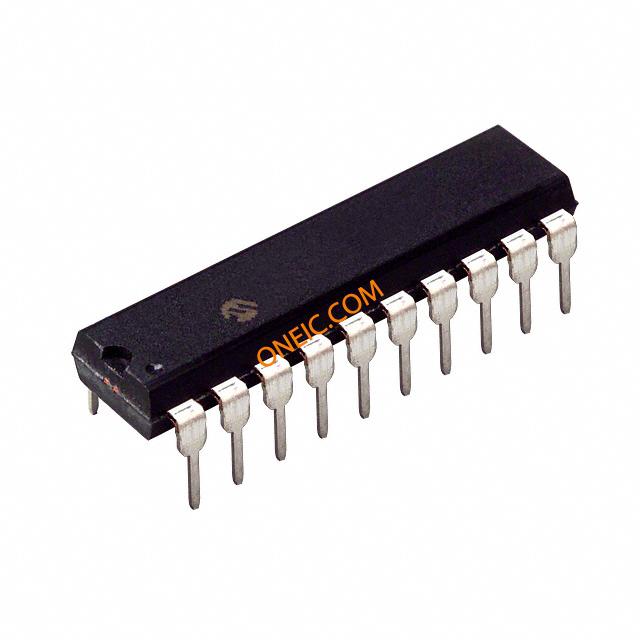

PIC16F690-I/P
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-bit PIC16 PIC RISC 7KB Flash 5V 20-Pin PDIP Tube 8 bit MCU PDIP20 IC MCU 8BIT 7KB FLASH 20DIP PIC16F690-I/P, 8 bit Microcontroller PIC 20MHz 4096 Flash, 256B RAM, I2C SPI 20-Pin PDIP IC, 8BIT FLASH MCU, 16F690, DIP20 IC, 8-BIT FLASH MCU, TUBE22 20-Pin,7KBFlash,256RAM,18I/O PIC microcontroller; EEPROM:256B; SRAM:256B; 20MHz; DIP20; 2÷5.5V Microcontroller 8 Bit DIL-20, PIC16F690-I/P, Microchip Microchip PIC16F 系列 8 bit PIC MCU, 20MHz, 256B，4096x14 字 ROM 闪存, 256 B RAM, 20针 PDIP封装 8-bit Microcontrollers - MCU 7KB FL 256R 18 I/O PIC16F 7K PDIP20 85°C |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 22 |
| 其他名称 | PIC16F690IP | 标准包装数量 | Rail / Tube |
| 标准封装名称 | PDIP | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | :16F690 | 无铅定义 | RoHS-conform |
| 认证机构 | No | ||
电气参数
| 输入端 | 18 | 转速 | 20 MHz |
| 定时器 | 1 x 16 bit, 2 x 8 bit | 存储器 | 7KBytes |
| RAM 大小 | 256 byte | 内核大小 | 8-Bit |
| 核心类型 | PIC | 接口 | I2C/SPI/USART |
| 时钟速率 | 20 | 比较器数量 | 2 |
| EEPROM容量 | 256Byte | 存储器容量 | 7KByte |
| 存储器类型 | FLASH | 显示类型 | no |
| I/O 数量 | 17 | 电压范围 | 2-5.5V |
| 位数 | 10 | 额定电压 | 2 → 5.5 V |
| 看门狗定时器 | 1 | 时钟频率 | :20MHz |
| 数据转换器 | A/D 12x10b | 最大频率 | 20MHz |
| DAC数量 | 0 | 振荡器类型 | Internal |
| 供电电压 | 5 V | 数字I/O线数 | 12pins |
| 分辨率（位） | 10Bit | 串行接口 | 1 |
| 通道数量 | 0 | 模拟输入/输出 | 2 |
| 非易失性存储器 | 256Bytes | 程序存储器大小 | 7 KB |
| 程序存储器类型 | Flash | ADC/DAC 数量 | 12 |
| 8位定时器数量 | 2 | 最小供电电压 | 2...5.5V |
| 频率（中心/带宽） | 16 bit, 8 bit | 最大功耗 | 800 mW |
| 每元件位数 | :16 | 供电电压 (Vcc/Vdd) | 2 V ~ 5.5 V |
机械参数
| 宽度 | 0.28in | 高度 | 0.195in |
| 长度 | 1.06in | 重量 | 0.002 |
| 包装方式 | TUBE | 引脚样式 | Through Hole |
| 安装类型 | Through Hole | 引脚数 | :20 |
| 封装形式 | 20PDIP | 冷却的封装 | PDIP |
| 材料表面处理 | :- | 总长度 | 26.16 |
| 包装数量 | PDIP | 尺寸/外形 | 1.06 x 0.28 x 0.195in |
| 位数 | 20 | 外壳尺寸-插件 | 3.3 |
| 供应商器件封装 | 20-PDIP | 核心数/总线宽度 | 8 Bit |
产品信息
| SPI | 1 | SPG | 352 |
| USB | No | 类型 | PIC microcontroller |
| 协议 | 1 | 匹配码 | PIC16F690-I/P |
| CAN编号 | 0 | 闪存大小 | :7KB |
| SPI编号 | 0 | 片内RAM（通道数×位宽） | 12-chx10-bit |
| 外设 | Brown-out Detect/Reset, POR, PWM, WDT | 架构 | RISC |
| 连接性 | I²C, SPI, UART/USART | 核心处理器 | PIC |
| 内置振荡器 | 32kHz, 8MHz | 单元数量 | 1 |
| 定时器数量 | 3 | 控制器系列 | :PIC16F |
| 标准交期 | 14 weeks | 射频系列/标准 | PIC16 |
| 使用的IC/零件 | :PIC16F690-I/P | DigiKey可编程 | Yes |
| 印刷电路板数量 | 20 | 微控制器特性 | :POR, PWRTE, OST, BOR, WDT, SPI, I²C, ICSP, 2 Comparators, SSP, ECCP+, EUSART |
| A/D转换器数量 | :12 | ||
环境参数
| 温度范围 | :Industrial | 测试温度 | -40°C |
| 工作温度 | -40 to 85 °C | ||
