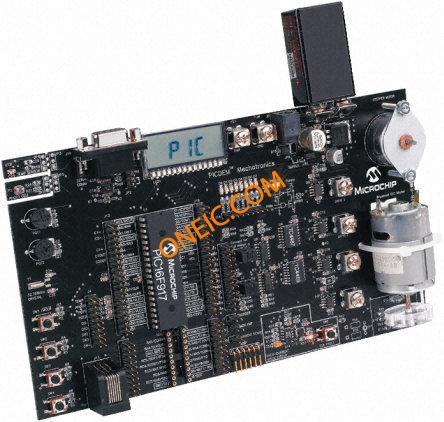

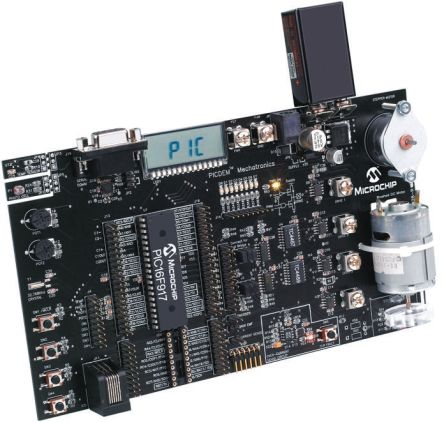

DM163029

制造商	Microchip Technology Inc.
描述	PICDEM Mechatronics Demonstration Kit Development Boards & Kits - PIC / DSPIC PICDEM Mechatronics PICDEM Mechatronics Kit BOARD PICDEM FOR MECHATRONICS DM163029, Development Kit, 8 bit, PIC PIC16F917, MECHATRONICS, DEMO KIT PICDEMMechatronics Development kit: Microchip; PIC12F509,PIC16F690; 9÷12V Microchip 8 位 MCU 微控制器开发套件
分类	嵌入式系统与开发工具嵌入式MCU与DSP评估板MCU评估板

商业参数

最小起订量	1	产品	Demonstation Kits
单位包装	1	产品类别	Development Boards & Kits - PIC / DSPIC
标准包装数量	Boxed	工厂包装数量	1

合规参数

RoHS	RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
海关税号	85423190	无铅定义	RoHS-conform

电气参数

核心类型	PIC	接口	RS-232
供电电压	9 V to 12 V	元件数量	:PIC16F
最小供电电压	9...12V

机械参数

重量

0.18

核心数/总线宽度

8 bit

产品信息

类型	Development Kit	内容	Board, Samples, Software
嵌入式	Yes, MCU, 8-Bit	产品特性	:Analog Temperature Sensor, Over-current Protection Circuit, RS-232 Interface
套件类型	Microchip	匹配码	DM163029

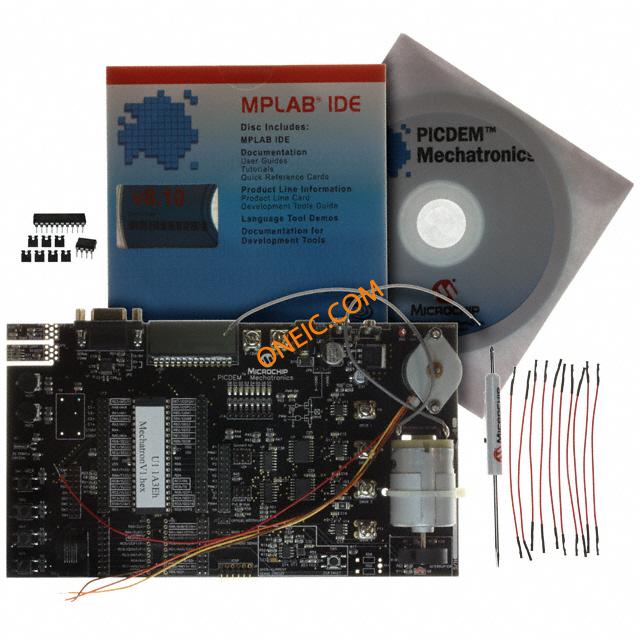

技术	8 bit	套件内容	10 Wire Jumpers, CD with Documentation & Software, PICDEM Mechatronics Board populated with the PIC16F917, Sample Kit Including the PIC16F690 and PIC12F509
主要用途	Power Management, Motor Control	制造商全称	:PIC16F9xxx
卡标准	Development Kit	通信接口	RS232
开发套件	STARTERKIT	单元数量	1
标准交期	6 weeks	工具类型/特性	PIC16F917
使用的IC/零件	PIC16F917	芯片组制造商	:Microchip
次要特性	LED Status Indicators

文档与媒体

idcplg?IdcService=SS_GET_PAGE&nodeId=1406&dDocName=en023837&part=DM163029

PICDEM Mechatronics Demonstration Kit
