点击放大查看

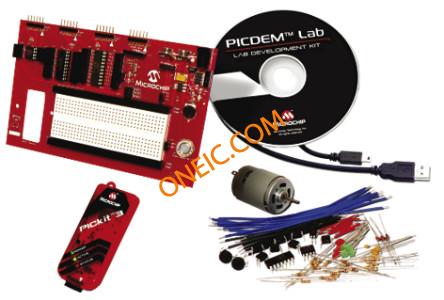

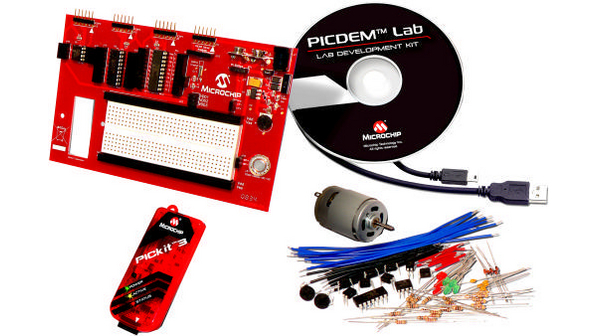

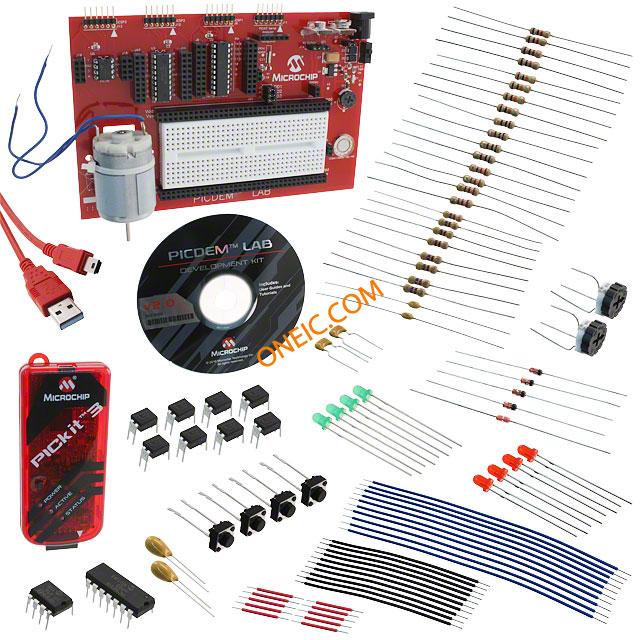

DM163045
| 制造商 | Microchip Technology Inc. |
| 描述 | PICDEM LAB DEVELOPMENT KIT (WITH PICKIT 3) Development Boards & Kits - PIC / DSPIC PICDEM Lab Dev Kit (with PICkit 3) PICDEM Lab Development Kit (with PIC KIT DEV PICDEM W/PICKIT 3 PICDEM Lab Development Kit with PICkit 3 PICDEM Lab Development Kit Provide A Comprehensive Development For Virtually All Of Flash PICDEM, LAB DEV, PICKIT 3, DEV KIT PICDEMLabDevelopmentKitwithPICkit3 Development kit: Microchip; Communication with PC: USB PICDEM Lab Development Kit PC hosted mode PIC16F690, PIC16F88, PIC16F616, PIC12F615, PIC10F206 9 V, DM163045, Microchip |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Development Kits |
| 单位包装 | 1 | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 核心类型 | PIC | 接口 | USB |
| 位数 | :8 bit | 供电电压 | 9 V to 12 V |
| 元件数量 | :PIC10F206, PIC12F615, PIC16Fxxx | ||
机械参数
| 重量 | 0.3 | 包装数量 | 1 |
| 核心数/总线宽度 | 8 bit | ||
产品信息
| SPG | 1 | 类型 | MCU |
| 内容 | Board, PIC kit 3 | 产品特性 | :(Not Applicable) |
| 功能 | PICDEM Lab Development Kit is designed to provide a comprehensive development and learning platform for Microchip's FLASH-based 6-, 8-, 14-, 18- and 20-pin 8-bit PIC microcontrollers | 套件类型 | :Microcontroller |
| 技术 | 8 bit | 套件内容 | PICDEM Development Board, PICkit 3 |
| 制造商全称 | :PIC10, PIC12, PIC16 | 卡标准 | Development Kit |
| 通信接口 | USB | 单元数量 | 1 |
| 工具类型/特性 | PIC16F616, PIC12F615 | 芯片组制造商 | :Microchip |
| 可编程特性 | prototyping area | 适用产品/相关产品 | PIC Micro® MCU |
