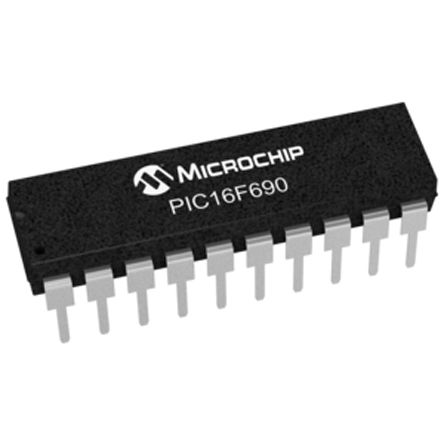

PIC16F690-E/P
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-Bit PIC16 PIC RISC 7KB Flash 5V 20-Pin PDIP Tube 7 KB Flash, 256 RAM, 18 I/O IC MCU 8BIT 7KB FLASH 20DIP 8-bit Microcontrollers - MCU 7KB FL 256R 18 I/O IC, MCU, 8-BIT, 7K FLASH, PDIP20 20-Pin,7KBFlash,256RAM,18I/O Microchip PIC16F 系列 8 bit PIC16F MCU, 20MHz, 7 kB ROM 闪存, 256 B RAM, 1xUSB, 20针 PDIP封装 |
| 分类 |
商业参数
| 最小起订量 | 342 | 单位包装 | 22 |
| 其他名称 | PIC16F690EP | 产品类别 | 8-bit Microcontrollers - MCU |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 22 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85411000 | 零件状态 | :16F690 |
电气参数
| 输入端 | 18 | 转速 | 20 MHz |
| 定时器 | 2-8-bit,1-16-bit | 存储器 | 7KBytes |
| RAM 大小 | 256 byte | 内核大小 | 8-Bit |
| 核心类型 | PIC | 接口 | I2C/SPI/USART |
| 时钟速率 | 20 MHz | 比较器数量 | 2 |
| EEPROM容量 | 256 x 8 | 存储器容量 | 256 B |
| 存储器类型 | Flash | I/O 数量 | 17 |
| 电压范围 | 2-5.5V | 位数 | :8 |
| 看门狗定时器 | 1 | 时钟频率 | :20MHz |
| 数据转换器 | A/D 12x10b | DAC数量 | :4 |
| 振荡器类型 | Internal | 供电电压 | 5 V |
| 通道数量 | 12 | 模拟输入/输出 | 2 |
| 非易失性存储器 | 256Bytes | 程序存储器大小 | 7 KB |
| 程序存储器类型 | Flash | 最大功耗 | 800 mW |
| 每元件位数 | 10 bit | 供电电压 (Vcc/Vdd) | 2 V ~ 5.5 V |
机械参数
| 重量 | 0.2273 | 包装方式 | Tube |
| 端接方式 | :Through Hole | 安装样式 | Through Hole |
| 引脚数 | :20 | 封装形式 | 20PDIP |
| 材料表面处理 | :- | 位数 | :16F690 |
| 供应商器件封装 | 20-PDIP | 核心数/总线宽度 | 8 Bit |
产品信息
| 系列 | PIC16 | 闪存大小 | :7KB |
| 片内RAM（通道数×位宽） | 12-chx10-bit | 外设 | Brown-out Detect/Reset, POR, PWM, WDT |
| 连接性 | I²C, SPI, UART/USART | 核心处理器 | PIC |
| 定时器数量 | 3 | 控制器系列 | :PIC16F6xx |
| 射频系列/标准 | PIC16 | 使用的IC/零件 | :PIC16F690-E/P |
| A/D转换器数量 | :12 | ||
环境参数
| 温度范围 | :Extended | 工作温度 | -40 to 125 °C |
