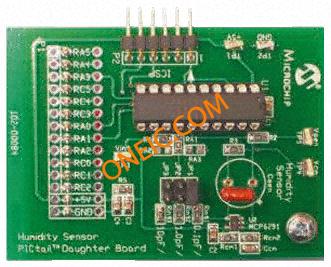

点击放大查看
PIC16F690DM-PCTLHS
| 制造商 | Microchip Technology Inc. |
| 描述 | Humidity Sensor Pictail DEMO Board Development Boards & Kits - PIC / DSPIC Hum Sensor PICtail Demo Bd Humidity Sensor PICtail Demo Bd BOARD DEMO PICTAIL HUMIDITY SNSR PIC16F690DM-PCTLHS, Development Kit Microchip PICtail 模拟开发套件 |
| 分类 |
商业参数
| 最小起订量 | 3 | 产品 | Demonstration Boards |
| 单位包装 | 1 | 其他名称 | PIC16F690DMPCTLHS |
| 产品类别 | Development Boards & Kits - PIC / DSPIC | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 零件状态 | PICtail |
电气参数
| 核心类型 | PIC | 接口 | Analog |
| 传感器类型 | Humidity | 感应范围 | 1 ~ 99% RH |
| 供电电压 | 5V | ||
机械参数
| 核心数/总线宽度 | 8 bit | ||
产品信息
| 类型 | Development Kit | 内容 | Board, Samples, Software |
| 嵌入式 | Yes, MCU, 8-Bit | 功能 | Demonstration board for measuringhumidity |
| 套件类型 | 演示板 | 技术 | Sensor & Transducer |

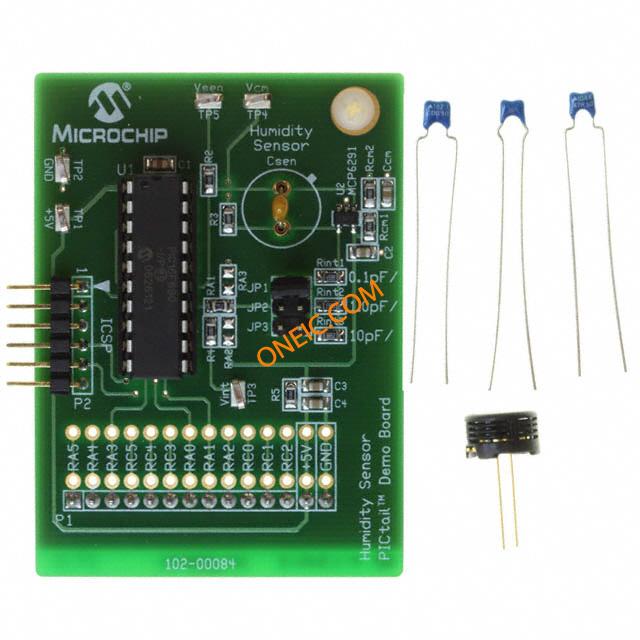

| 套件内容 | Assembled Humidity Sensor PICtail Demo Board, Bag of Capacitors, CD with Documentation & Software, Humidity Sensor (HS1101LF) | 卡标准 | Development Kit |
| 工具类型/特性 | MCP6291, PIC16F690 | 使用的IC/零件 | MCP6291, PIC16F690 |
| 适用产品/相关产品 | PIC16F690 | ||
