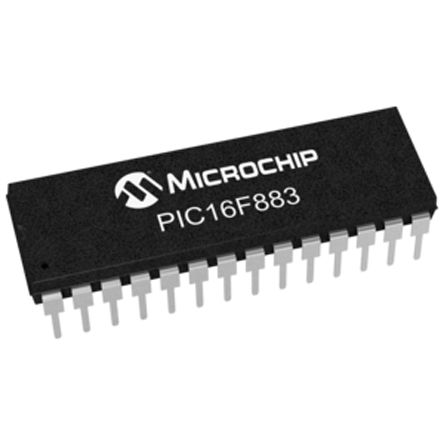

PIC16F883-I/SP
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-bit PIC16 PIC RISC 7KB Flash 2.5V/3.3V/5V 28-Pin SPDIP Tube 7KB Flash, 256 RAM, 25 I/O IC MCU 8BIT 7KB FLASH 28SDIP PIC16F883-I/SP, 8 bit Microcontroller PIC 20MHz 4096 Flash, 256B RAM, I2C SPI 28-Pin SPDIP 8-bit Microcontrollers - MCU 7KB Flash 256 RAM 25 I/O IC, MCU 8BIT 4K FLASH, SPDIP28 MCU,8-Bit,4KWFlash,256RAM,25I/O,SPDIP-28 PIC microcontroller; EEPROM:256B; SRAM:256B; 20MHz; DIP28; 2÷5.5V Microcontroller 8 Bit DIL-28, PIC16F883-I/SP, Microchip Microchip PIC16F 系列 8 bit PIC MCU, 20MHz, 4096 x 14 字，256 B ROM 闪存, 256 B RAM, 28针 SPDIP封装 8 bit MCU SPDIP28 |
| 分类 |
商业参数
| 最小起订量 | 423 | 单位包装 | 15 |
| 其他名称 | PIC16F883ISP | 产品类别 | 8-bit Microcontrollers - MCU |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 15 |
| 标准封装名称 | PDIP | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 零件状态 | :16F883 | 认证机构 | No |
电气参数
| 输入端 | 25 | 转速 | 20 MHz |
| 定时器 | 1 x 16 bit, 2 x 8 bit | 存储器 | 7KBytes |
| RAM 大小 | 256 byte | 内核大小 | 8-Bit |
| 核心类型 | PIC | 接口 | I2C/SPI/USART |
| 时钟速率 | 20 MHz | 比较器数量 | 2 |
| 分辨率 | 10bit | EEPROM容量 | 256 x 8 |
| 存储器容量 | 256 B | 存储器类型 | Flash |
| I/O 数量 | 24 | 电压范围 | 2-5.5V |
| 位数 | 10 | 额定电压 | 2 → 5.5 V |
| 看门狗定时器 | 1 | 时钟频率 | :20MHz |
| 数据转换器 | A/D 11x10b | 最大频率 | 20MHz |
| DAC数量 | 2 | 振荡器类型 | Internal |
| 供电电压 | 2.5|3.3|5 V | 分辨率（位） | 10bit |
| 串行接口 | 1 | 通道数量 | 0 |
| 模拟输入/输出 | 2 | 非易失性存储器 | 256Bytes |
| 程序存储器大小 | 7 KB | 程序存储器类型 | Flash |
| ADC/DAC 数量 | 11 | 8位定时器数量 | 2 |
| 最小供电电压 | 2...5.5V | 频率（中心/带宽） | 16 bit, 8 bit |
| 最大功耗 | 800 mW | 每元件位数 | 10 bit |
| 供电电压 (Vcc/Vdd) | 2 V ~ 5.5 V | ||
机械参数
| 宽度 | 0.295in | 高度 | 0.15in |
| 长度 | 1.4in | 重量 | 0.006669 |
| 包装方式 | Tube | 引脚样式 | Through Hole |
| 端接方式 | :Through Hole | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 引脚数 | :28 |
| 封装形式 | 28SPDIP | 冷却的封装 | SPDIP |
| 材料表面处理 | :- | 总长度 | 34.67 |
| 包装数量 | SPDIP | 尺寸/外形 | 1.4 x 0.295 x 0.15in |
| 位数 | 28 | 外壳尺寸-插件 | 3.43 |
| 供应商器件封装 | 28-SPDIP | 核心数/总线宽度 | 8 Bit |
| 脉冲宽度失真（最大） | 1(10 bit) (CCP), 1(10 bit) (ECCP) | ||
产品信息
| SPI | 1 | SPG | 15 |
| USB | 0 | 类型 | PIC microcontroller |
| 系列 | PIC16 | 协议 | 1 |
| 闪存大小 | :4KB | 片内RAM（通道数×位宽） | 11-chx10-bit |
| 外设 | Brown-out Detect/Reset, POR, PWM, WDT | 架构 | RISC |
| 连接性 | I²C, SPI, UART/USART | 核心处理器 | PIC |
| 内置振荡器 | 32kHz, 8MHz | 单元数量 | 1 |
| 定时器数量 | 3 | 控制器系列 | :PIC16F8xx |
| 射频系列/标准 | PIC16 | 使用的IC/零件 | :PIC16F883-I/SP |
| DigiKey可编程 | Yes | 印刷电路板数量 | 28 |
| A/D转换器数量 | :11 | ||
环境参数
| 工作温度 | -40 to 85 °C | ||
文档与媒体
相关型号
AC162051
microchip
Evaluation Kit For Connecting The MPLAB ICD 2 Module To A Target Board Sockets & Adapters 28/40 PDIP for ICD MPLAB ICD Header Interface (28/40 PD HEADER INTRFC ICD,ICD2 28/40 DIP AC162051, Header, 8 bit, PIC, Header Interface MPLAB ICD HEADER, FOR MPLAB ICD2 HeaderInterface(28/PDIP-40)FORICDANDICD2Debuggers Microchip 8 位 MCU 针座 处理器和微控制器开发套件
DM163022
microchip
Demonstration Board To Support Different PIC Microcontroller Devices Development Boards & Kits - PIC / DSPIC PICDEM 2 Plus PIC16C62/63/64/65/73/74 Demo-B BOARD DEMO PICDEM-2 PLUS PICDEM 2 PLUS, LCD, DEMO BOARD PICDEM2PlusDemoBoardforPIC16xxxandPIC18xxxDevices
DV164035
microchip
MPLAB ICD 3 In Circuit Debugger In-Circuit Debuggers MPLAB ICD3 MPLAB ICD3 In-Circuit Debugger MPLAB ICD3 IN-CIRC DEBUGGER DV164035, Programmer, 16 bit, PIC DEBUGGER, MPLAB ICD 3, DSPIC FOR PIC MPLAB ICD 3 In-Circuit Debugger Kit MPLABICD3IncircuitDebugger Programmer: microcontrollers; USB; No.of diodes:3 In-Circuit Debugger/Programmer ICD3 PC hosted mode, DV164035, Microchip Microchip MPLAB ICD 3 在线调试器 处理器和微控制器开发套件
DVA18XP280
microchip
Evaluation Board For Device Adapter PIC12C50X, CE51X PDIP And SOIC 8 LD Device Adapter Sockets & Adapters Processor MOD DEVICE ADAPTER 18F2220 PDIP 28LD PIC18F2220,2320PDIP28LDDEVICEADAPTER
PIC16F883-I/SP
microchip
MCU 8-bit PIC16 PIC RISC 7KB Flash 2.5V/3.3V/5V 28-Pin SPDIP Tube 7KB Flash, 256 RAM, 25 I/O IC MCU 8BIT 7KB FLASH 28SDIP PIC16F883-I/SP, 8 bit Microcontroller PIC 20MHz 4096 Flash, 256B RAM, I2C SPI 28-Pin SPDIP 8-bit Microcontrollers - MCU 7KB Flash 256 RAM 25 I/O IC, MCU 8BIT 4K FLASH, SPDIP28 MCU,8-Bit,4KWFlash,256RAM,25I/O,SPDIP-28 PIC microcontroller; EEPROM:256B; SRAM:256B; 20MHz; DIP28; 2÷5.5V Microcontroller 8 Bit DIL-28, PIC16F883-I/SP, Microchip Microchip PIC16F 系列 8 bit PIC MCU, 20MHz, 4096 x 14 字，256 B ROM 闪存, 256 B RAM, 28针 SPDIP封装 8 bit MCU SPDIP28
DM164120-3
microchip
PICKIT 2 Development Programmer/Debugger Development Boards & Kits - PIC / DSPIC PICkit 2 Count Demo Board PICkit 2 28-Pin Demo Board BOARD DEMO PICKIT2 28-PIN DM164120-3, Development Kit, 8 bit, PIC PICKIT, PIC16F886, DEMO BOARD PICkit228PinCountDemoBoard Development kit: Microchip; PIC16F886; Connector type: ICSP PICkit 28-Pin Demo Board PC hosted mode PIC16F886, PIC16F1938 and PIC18F26K22, DM164120-3, Microchip Microchip 8 位 MCU 微控制器开发套件
SW500005
microchip
Compiler, HI Tech C Compiler For PIC10/12/16 MCUs Development Software HI-TECH PICC STD Compiler Hi-Tech C Comp.for PIC10/PIC12/PIC16ROHS PICC STD Compilers,HI-TECHCCompilerforPIC10/12/16MCUs-Standard Hi-Tech C Compiler for PIC10/12/16 Microcontrollers

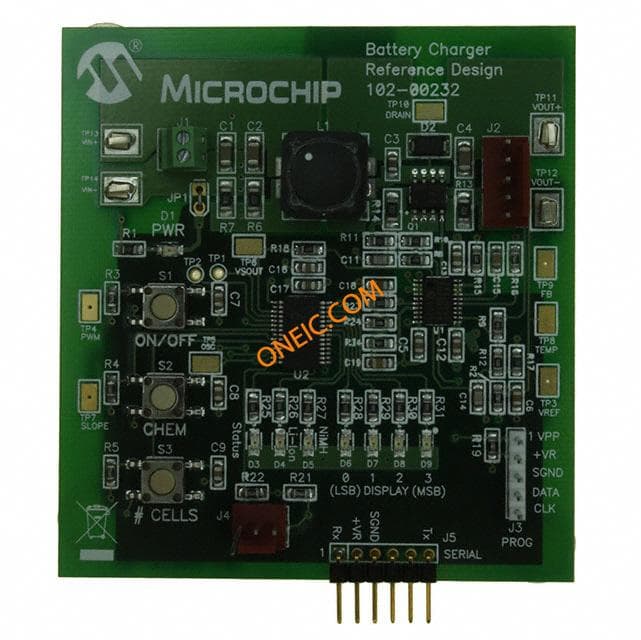

MCP1631RD-MCC2
