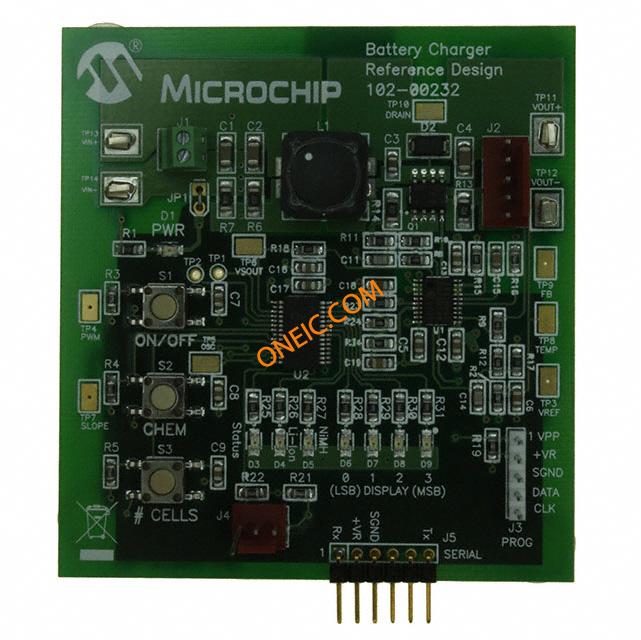

MCP1631RD-MCC2

制造商	Microchip Technology Inc.
描述	MCP1631HV MULTI-CHEMISTRY BUCK Evalbaord MCP1631 SO-20 SMD REFERENCE DESIGN MCP1631HV Power Management IC Development Tools MCP1631HV Multi-Chem BuckBst Chg Ref Dsgn
分类	嵌入式系统与开发工具嵌入式开发工具评估与开发套件

商业参数

最小起订量	4	产品	Reference Design Boards
单位包装	1	其他名称	MCP1631RDMCC2
标准包装数量	1	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	汽车级	NO
无铅定义	RoHS-conform

电气参数

额定电压

16 V

输出电流

2 A

产品信息

类型	Evalboard	内容	Board, Software
嵌入式	Yes, MCU, 8-Bit	功能	Reference design board for multi-chemistry battery and LED management
匹配码	MCP1631RD-MCC2	主要用途	Power Management, Battery Charger
标准交期	18 weeks	工具类型/特性	MCP1631HV, PIC16F883
主要特性	1 ~ 2 Cell- Li-Ion, 1 ~ 5 Cell- NiCd/NiMH, 1 ~ 2 1W LEDs	使用的IC/零件	MCP1631HV, PIC16F883
次要特性	Status LEDs

文档与媒体

MCP1631 Family AppNote (AN1137)

MCP1631HV Battery Charger RD

MCP1631(HV,V,VHV)

PIC16F882-84/86-87

51791a.pdf

22063b.pdf

相关型号

PIC16F883-I/ML

microchip

MCU 8-bit PIC16 PIC RISC 7KB Flash 2.5V/3.3V/5V 28-Pin QFN EP Tube 8 bit MCU QFN28 IC MCU 8BIT 7KB FLASH 28QFN PIC16F883-I/ML, 8 bit Microcontroller PIC 20MHz 4096 Flash, 256B RAM, I2C SPI 28-Pin QFN 8-bit Microcontrollers - MCU 7KB Flash 256 RAM 25 I/O MCU, 8BIT, PIC16F, 20MHZ, QFN-28 28-Pin,7KBFlash,256RAM,25I/O,QFN PIC16F 7K QFN28 85°C

¥9.0600

详情

PIC16F883-I/SO

microchip

MCU 8-bit PIC16 PIC RISC 7KB Flash 2.5V/3.3V/5V 28-Pin SOIC W Tube 8-bit Microcontrollers - MCU 7KB Flash 256 RAM 25 I/O 8 bit MCU SOIC28 IC MCU 8BIT 7KB FLASH 28SOIC PIC16F883-I/SO, 8 bit Microcontroller PIC 20MHz 4096 Flash, 256B RAM, I2C SPI 28-Pin SOIC IC, MCU 8BIT 7K FLASH, SMD, SOIC28 SOIC-8.300inTUBE,7KBFlash,256RAM,25I/O Microcontroller 8 Bit SO-28, PIC16F883-I/SO, Microchip Microchip PIC16F 系列 8 bit PIC MCU, 20MHz, 4096 x 14 字，256 B ROM 闪存, 256 B RAM, 28针 SOIC封装 PIC16F 7K SOIC28 85°C

¥9.0600

详情

PIC16F883-E/SO

microchip

MCU 8-bit PIC16 PIC RISC 7KB Flash 2.5V/3.3V/5V 28-Pin SOIC W Tube IC MCU 8BIT 7KB FLASH 28SOIC 8-bit Microcontrollers - MCU 7KB Flash 256 RAM 25 I/O IC, 8BIT MCU, PIC16F, 20MHz, SOIC-28 PIC16F 7K SOIC28 125°C

¥9.0600

详情

PIC16F883-E/SS

microchip

MCU 8-bit PIC16 PIC RISC 7KB Flash 2.5V/3.3V/5V 28-Pin SSOP Tube IC MCU 8BIT 7KB FLASH 28SSOP 8-bit Microcontrollers - MCU 7KB Flash 256 RAM 25 I/O IC, 8BIT MCU, PIC16F, 20MHz, SSOP-28 PIC16F 7K SSOP28 125°C

¥10.7280

详情

PIC16F883-E/ML

microchip

MCU 8-bit PIC16 PIC RISC 7KB Flash 2.5V/3.3V/5V 28-Pin QFN EP Tube IC MCU 8BIT 7KB FLASH 28QFN 8-bit Microcontrollers - MCU 7KB Flash 256 RAM 25 I/O

¥12.6720

详情

MCP1631HVT-330E/SS

Microchip Technology Inc.

Buy now, ships today. MCP1631HVT-330E/SS - Sepic Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC 20-SSOP from Microchip Technology. View datasheets, pricing and availability from DigiKey now!

¥7.5600

详情

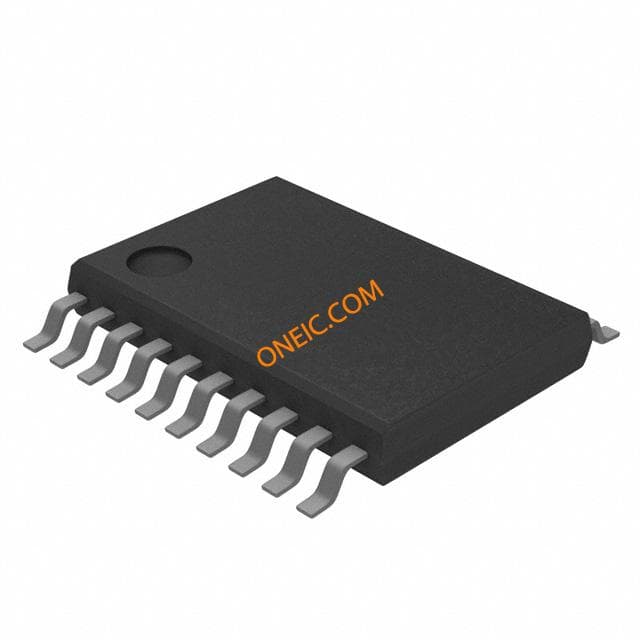

MCP1631HV-500E/ST
