点击放大查看

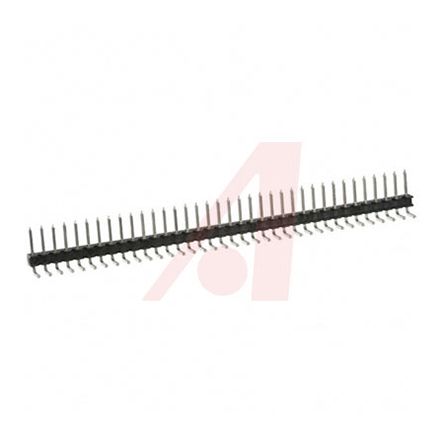

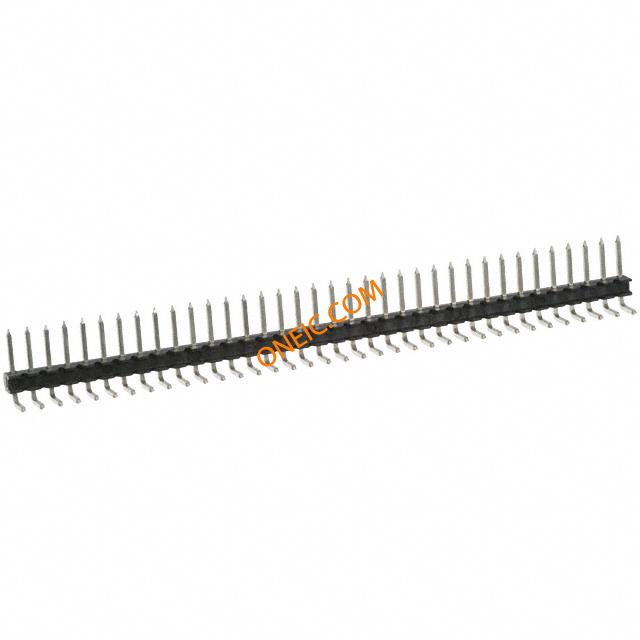

929835-01-36-RK
| 制造商 | 3M Company |
| 描述 | ヘッダ & ワイヤハウジング FULL STICK HDR .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER .100 SNGL R/A 36POS Headers & Wire Housings FULL STICK HDR Header;PinStrip;CopperAlloy;GlassFilledPolyester;36Cnts;2.5A;RtAngle;929Series 3M 929 系列 2.54mm节距 36路 (1排) 直角 引脚管座, 焊接端接, 2.5A , 通孔 |
| 分类 |
商业参数
| 零件号别名 | 05111166451 80000908378 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 300 | 工厂包装数量 | 300 |
合规参数
| RoHS | Lead free / RoHS Compliant | RoHS合规（认证） | Yes |
电气参数
| 额定电压 | 1.5 kV | 最大额定电流 | 2.5 A |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 方向 | 直角 |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Unshrouded, Breakaway |
| 接触镀层 | Tin-Lead | 排数 | 1 |
| 触头材料 | Copper Alloy | 端接排数 | 焊接 |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 1 | 位数 | 36 |
| 接触长度 - 配合 | 0.235" (5.97mm) | 接触镀层厚度 | 100µin (2.54µm) |
产品信息
| 类型 | Pin Strip | 系列 | 929 |
| 覆盖范围 | 无覆盖 | 产品子类型 | Headers |
| 加载位置数 | All | ||
文档与媒体
相关型号
929974-01-36
3m interconnect solutions
Conn Socket Strip SKT 36 POS 2.54mm Solder ST Thru-Hole CONN RECEPT .100 SNGL STR 36POS Socket; Boardmount; 36; Copper Alloy; 100 uin. 90/10 Tin/Lead; 100 uin. Nickel BOARD-BOARD CONN, SOCKET, 36WAY, 1ROW Socket;Boardmount;36;.100",Straight,SolderTail,tin-leadplating 3M 929 系列 36路 直 2.54mm节距 通孔 印刷电路板插座, 板安装
929974-01-36-RK
3m interconnect solutions
Conn Socket Strip SKT 36 POS 2.54mm Solder ST Thru-Hole .100" and .100" Ã .100" Straight, Solder Tails, 1 row (1-40 contacts) or 2 row (2-80 contacts) CONN RECEPT .100 SNGL STR 36POS Headers & Wire Housings BOARDMOUNT SOCKET SOCKET, THT, PCB, 36WAY 3M(TM)BOARDMOUNTSOCKET,929SERIES,929974-01-36-RK 3M 929 系列 36路 直 2.54mm节距 通孔 印刷电路板插座, 板安装
929870-01-36-RA
3M Electronic Solutions Division
Headers & Wire Housings 36P BRD MNT SKT GOLD 1 ROW 10MICRO AU .100" Low Profile, Straight, Solder Tails CONN RCPT 36POS STR .100" GOL
929850-01-36-RA
3M Electronic Solutions Division
Headers & Wire Housings FULL STICK HDR/36POS .100" and .100" Ã .100" Straight, Solder Tails, 1 row (1-40 contacts) or 2 row (2-80 contacts) CONN RECEPT .100 SNGL STR 36POS Series:929 Socket;Boardmount;36;.100",Straight,SolderTail,goldplating
929850-01-36-10
3M Electronic Solutions Division
Headers & Wire Housings 36P 1ROW STRT SOCKET CONN RECEPT .100 SNGL STR 36POS Socket; Boardmount; 36; Copper Alloy; 100 uin. 90/10 Tin/Lead; 100 uin. Nickel BOARD-BOARD CONN, SOCKET, 36WAY, 1ROW Socket;Boardmount;36;.100",Straight,SolderTail,goldplating 3M 929 系列 36路 直 2.54mm节距 通孔 印刷电路板插座, 板安装
929984-01-36-RK
3M Electronic Solutions Division
Headers & Wire Housings 36 CON LOW PROFILE .100" Low Profile, Straight, Solder Tails CONN RCPT 36POS STR .100" TIN
929984-01-36
3m interconnect solutions
Conn Socket Strip SKT 36 POS 2.54mm Solder ST Thru-Hole .100" Low Profile, Straight, Solder Tails CONN RCPT 36POS STR .100" TIN Headers & Wire Housings 36P STRT LOPRO SKT

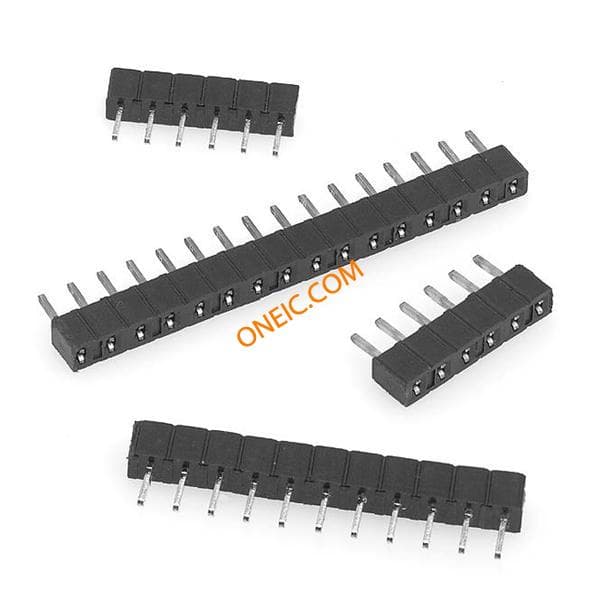

929870-01-36-10
