929850-01-36-RA

点击放大查看

929850-01-36-RA

制造商
3M Company
描述Headers & Wire Housings FULL STICK HDR/36POS .100" and .100" × .100" Straight, Solder Tails, 1 row (1-40 contacts) or 2 row (2-80 contacts) CONN RECEPT .100 SNGL STR 36POS Series:929 Socket;Boardmount;36;.100",Straight,SolderTail,goldplating
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名05111166504 80000908907产品类别Headers & Wire Housings
标准包装数量300工厂包装数量300

合规参数

RoHSRoHS Compliant海关税号85366930
认证机构cUL,UL材料阻燃等级UL94V-0

电气参数

最大额定电流1 A

机械参数

颜色Black间距0.100" (2.54mm)
重量0包装方式Bulk
端接方式Solder触头类型Forked
安装类型Through Hole行程角度Straight
连接器类型Receptacle接触镀层Gold
外壳涂层Tin-Lead排数1
触头材料Copper Alloy壳体材料Polyester
总长度1.8"主要材料Boardmount
插针孔直径0.1"端接样式Through Hole
第一触头极性Socket (Female)触点数36
接触件端接:Through Hole Vertical介电材料PBT
位数36安装孔直径0.04"
接触镀层厚度10µin (0.25µm)

产品信息

类型PCBSocket系列929
制造商全称929Series产品子类型Receptacles / Sockets - PCB
加载位置数All

环境参数

工作温度-40to+105°C

文档与媒体

在线文档
929 Series Boardmount Socket
在线文档
mediawebserver?mwsId=66666UuZjcFSLXTt4Xf_LXs6EVuQEcuZgVs6EVs6E666666--

相关型号

暂无图片

929705-11-36-EU

3m interconnect solutions

Conn Unshrouded Header HDR 36 POS 2.54mm Solder ST Thru-Hole .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER 36POS STR .100" GOLD Headers & Wire Housings FULL STICK HDR/36POS

¥20.2640
详情
929834-05-36-RK

929834-05-36-RK

3m interconnect solutions

Conn Unshrouded Header HDR 36 POS 2.54mm Solder ST Thru-Hole .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER .100 SNGL STR 36POS Headers & Wire Housings FULL STICK HDR/36POS

¥9.0600
详情
929805-01-36-EU

929805-01-36-EU

3m interconnect solutions

Conn Unshrouded Header HDR 36 POS 2.54mm Solder ST Thru-Hole .100" and .100" × .100", .093" Mating Length, Straight, Solder Tails CONN HEADER 36POS STR .100" GOLD

¥11.1078
详情
暂无图片

929647-08-36-EU

3m interconnect solutions

Conn Unshrouded Header HDR 36 POS 2.54mm Solder ST Thru-Hole CONN HEADER 36POS STR .100" GOLD

¥11.2200
详情
929835-02-36-RK

929835-02-36-RK

3m interconnect solutions

Conn Unshrouded Header HDR 36 POS 2.54mm Solder RA Thru-Hole CONN HEADER 36POS R/A .100" TIN

¥6.2560
详情
暂无图片

929648-02-36-EU

3m interconnect solutions

Conn Unshrouded Header HDR 36 POS 2.54mm Solder RA Thru-Hole CONN HEADER 36POS R/A .100" GOLD

¥13.2654
详情
暂无图片

929648-05-36-EU

3m interconnect solutions

Conn Unshrouded Header HDR 36 POS 2.54mm Solder RA Thru-Hole CONN HEADER 36POS R/A .100" GOLD

¥30.0560
详情
929450-01-36-I

929450-01-36-I

3m interconnect solutions

Conn Unshrouded Header HDR 36 POS 2.54mm Solder ST Thru-Hole .100", .295" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER .100 SNGL STR 36POS Headers & Wire Housings 36P STRT 1 ROW GOLD Conn;Rect;Header;PinStrip;0.100in;0.295inMateL;Str/Rt;SolderTail;929 3M 929 系列 2.54mm节距 36路 (1排) 直 引脚管座, 焊接端接, 2.5A , 通孔

¥15.8440
详情
929805-01-36-I

929805-01-36-I

3m interconnect solutions

Conn Unshrouded Header HDR 36 POS 2.54mm Solder ST Thru-Hole .100" and .100" × .100", .093" Mating Length, Straight, Solder Tails CONN HEADER 36POS STR .100" GOLD Headers & Wire Housings 36P STRT 1 ROW GOLD

¥18.9170
详情
暂无图片

929648-01-36-EU

3M Electronic Solutions Division

Headers & Wire Housings PIN STRP HDR 36 POS .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER 36POS R/A .100" GOLD

¥17.1360
详情
929700-06-36

929700-06-36

3M Electronic Solutions Division

Headers & Wire Housings 36P STRT 1 ROW TIN .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER 36POS STR .100" TIN Header; Pin Strip; 36; Flange; 4-40; Copper Alloy; 2.5 A; Black Insulation Header;PinStrip;36;.100#,.318#MatingL,Straight,Soldertail,tin-leadpltg 3M 929 系列 2.54mm节距 36路 (1排) 直 引脚管座, 焊接端接, 2.5A , 通孔

¥10.1320
详情
暂无图片

929834-08-36-RK

3M Electronic Solutions Division

Headers & Wire Housings 36P PIN STRIP HEADER STRAIGHT, TIN, 1ROW CONN HEADER 36POS STR .100" TIN

¥6.2560
详情

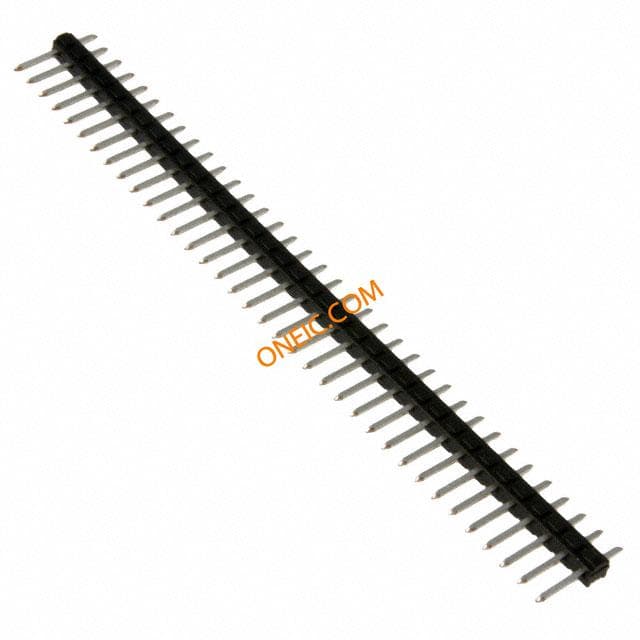

929834-01-36-RK
