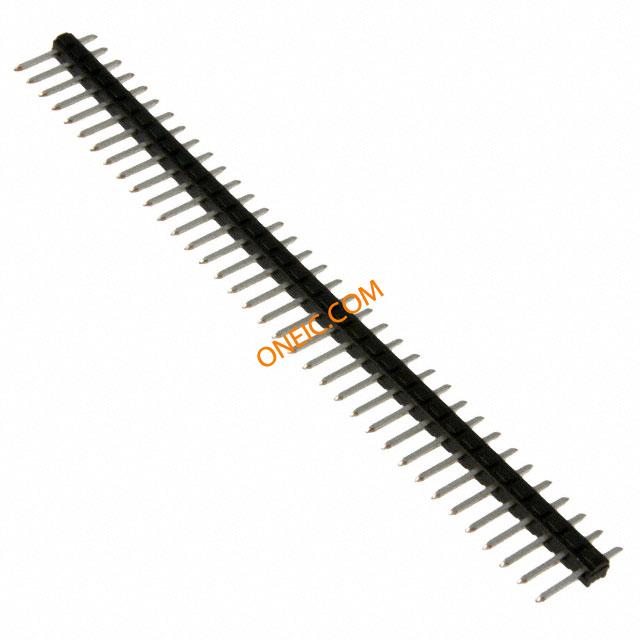

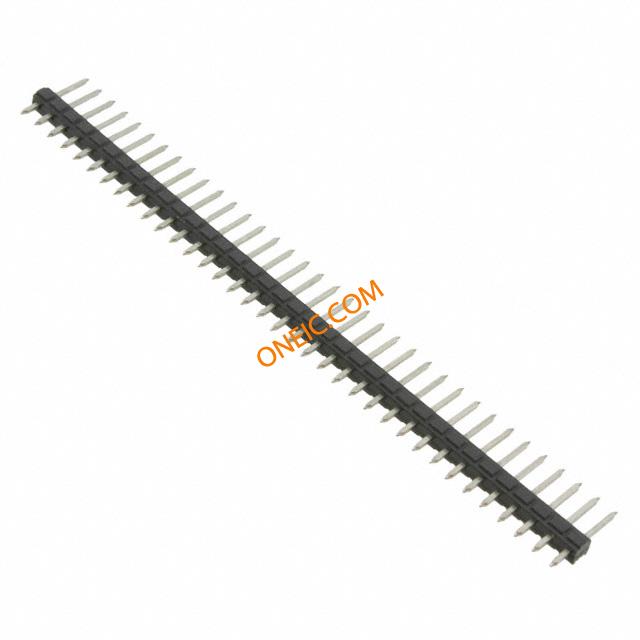

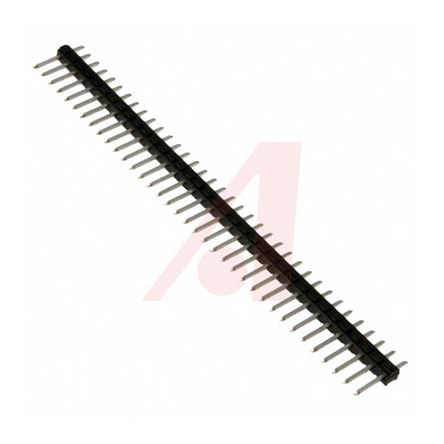

929834-01-36-RK
| 制造商 | 3M Company |
| 描述 | Conn Unshrouded Header HDR 36 POS 2.54mm Solder ST Thru-Hole CONN HEADER 36POS SNGL .100 STR Headers & Wire Housings FULL STICK HDR/36POS Header;PinStrip;CopperAlloy;GlassFilledPolyester;36Cnts;2.5A;Straight;929Series 3M 929 系列 2.54mm节距 36路 (1排) 直 引脚管座, 焊接端接, 2.5A , 通孔 |
| 分类 |
商业参数
| 零件号别名 | 05111166440 80000908261 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 300 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 1.5 kV | 开关功能 | Unlatched |
| 最大额定电流 | 2.5 A | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 包装方式 | Bulk | 方向 | 直 |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded, Breakaway |
| 接触镀层 | Tin Over Nickel | 排数 | 1 |
| 触头材料 | Copper Alloy | 壳体材料 | Polycyclohexylenedimethylene Terephthalate (PCT) |
| 端接排数 | 焊接 | 第一触头极性 | Pin (Male) |
| 触点数 | 36 | 位数 | 36 |
| 接触长度 - 配合 | 0.235" (5.97mm) | 接触镀层厚度 | 200µin (5.08µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | 929 | 覆盖范围 | 无覆盖 |
| 产品子类型 | Headers | 加载位置数 | All |
