929648-01-36-EU
| 制造商 | 3M Company |
| 描述 | Headers & Wire Housings PIN STRP HDR 36 POS .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER 36POS R/A .100" GOLD |
| 分类 |
商业参数
| 零件号别名 | 05111166387 80000907735 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 300 | 工厂包装数量 | 300 |
合规参数
| RoHS | Lead free / RoHS Compliant | RoHS合规（认证） | Yes |
电气参数
| 额定电压 | 1.5 kV | 开关功能 | Unlatched |
| 最大额定电流 | 2.5 A | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Unshrouded, Breakaway | 接触镀层 | Gold |
| 排数 | 1 | 触头材料 | Copper Alloy |
| 壳体材料 | Polycyclohexylenedimethylene Terephthalate (PCT) | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 触点数 | 36 |
| 位数 | 36 | 接触长度 - 配合 | 0.235" (5.97mm) |
| 接触镀层厚度 | 10µin (0.25µm) | ||
产品信息
| 类型 | Pin Strip | 系列 | 929 |
| 产品子类型 | Headers | 加载位置数 | All |
文档与媒体
相关型号

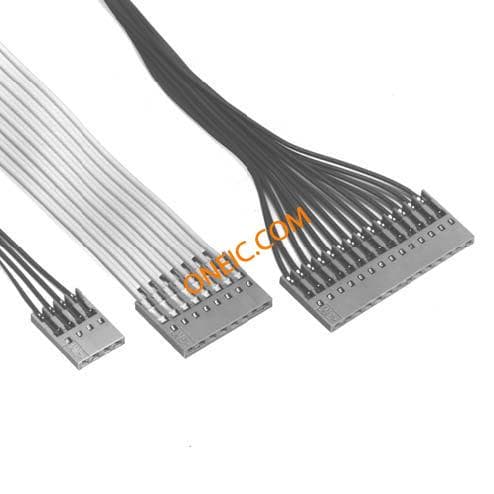

CHG-1036-001010-KCP
