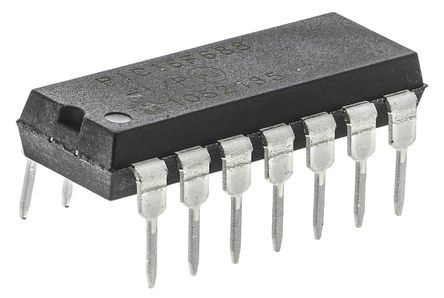

PIC16F688-I/P
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-bit PIC16 PIC RISC 7KB Flash 2.5V/3.3V/5V 14-Pin PDIP Tube 8 bit MCU PDIP14 IC MCU 8BIT 7KB FLASH 14DIP PIC16F688-I/P, 8 bit Microcontroller PIC 20MHz 4096 Flash, 256B RAM, 14-Pin PDIP IC, 8BIT MCU, PIC16, 8MHZ, 14PDIP IC, 8BIT FLASH MCU, 16F688, DIP14 14-Pin,7KBFlash,256RAM,12I/O PIC microcontroller; EEPROM:256B; SRAM:256B; 20MHz; DIP14; 2÷5.5V Microcontroller 8 Bit DIL-14, PIC16F688-I/P, Microchip Microchip PIC16F 系列 8 bit PIC MCU, 20MHz, 256B，4096x14 字 ROM 闪存, 256 B RAM, 14针 PDIP封装 8-bit Microcontrollers - MCU 7KB 256 RAM 12 I/O PIC16F 7K PDIP14 85°C |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 30 |
| 其他名称 | PIC16F688IP | 标准包装数量 | Rail / Tube |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 85423190 | 零件状态 | :16F688 |
| 抗辐射加固 | No | 无铅定义 | RoHS-conform |
电气参数
| 输入端 | 12 | 转速 | 20 MHz |
| 定时器 | 1 x 16 bit, 1 x 8 bit | 存储器 | 7KBytes |
| RAM 大小 | 256 byte | 内核大小 | 8-Bit |
| 核心类型 | PIC | 频率 | 20 MHz |
| 接口 | USART | 比较器数量 | 2 |
| EEPROM容量 | 256Byte | 存储器容量 | 7KByte |
| 存储器类型 | FLASH | 显示类型 | no |
| I/O 数量 | 12 | 电压范围 | 2-5.5V |
| 位数 | :8 | 额定电压 | 2 → 5.5 V |
| 时钟频率 | :20MHz | 数据转换器 | A/D 8x10b |
| 最大频率 | 20MHz | DAC数量 | 0 |
| 振荡器类型 | Internal | 供电电压 | 2.5|3.3|5 V |
| 数字I/O线数 | 12pins | 分辨率（位） | 10Bit |
| 通道数量 | 0 | 模拟输入/输出 | 8-Channel,10-Bit |
| 非易失性存储器 | 256Bytes | 程序存储器大小 | 7 KB |
| 程序存储器类型 | Flash | ADC/DAC 数量 | 8channels |
| 8位定时器数量 | 1 | 最小供电电压 | 2 V |
| 频率（中心/带宽） | 16 bit, 8 bit | 最大功耗 | 800 mW |
| 每元件位数 | :10 | 供电电压 (Vcc/Vdd) | 2 V ~ 5.5 V |
机械参数
| 宽度 | 0.28in | 高度 | 0.195in |
| 长度 | 0.775in | 重量 | 0.0002 |
| 包装方式 | TUBE | 安装类型 | Through Hole |
| 引脚数 | :14 | 封装形式 | 14PDIP |
| 冷却的封装 | PDIP | 材料表面处理 | :- |
| 包装数量 | 30 | 尺寸/外形 | 0.775 x 0.28 x 0.195in |
| 位数 | 14 | 供应商器件封装 | 14-PDIP |
| 核心数/总线宽度 | 8 Bit | ||
产品信息
| SPG | 30 | USB | No |
| 类型 | PIC microcontroller | 匹配码 | PIC16F688-I/P |
| CAN编号 | 0 | 闪存大小 | :7KB |
| SPI编号 | 0 | 片内RAM（通道数×位宽） | 8-chx10-bit |
| 外设 | Brown-out Detect/Reset, POR, WDT | 架构 | RISC |
| 连接性 | UART/USART | 可编程性 | Yes |
| 核心处理器 | PIC | 内置振荡器 | 32kHz, 8MHz |
| 单元数量 | 1 | 定时器数量 | 2 |
| 控制器系列 | :PIC16F6xxx | 标准交期 | 14 weeks |
| 射频系列/标准 | PIC16 | 使用的IC/零件 | :PIC16F688-I/P... |
| 微控制器特性 | :POR, PWRT, OST, BOD, WDT, ADC, USART | A/D转换器数量 | :8 |
环境参数
| 温度范围 | :Industrial | 工作温度 | -40 to 85 °C |
| 结工作温度 | 85C | ||
