点击放大查看

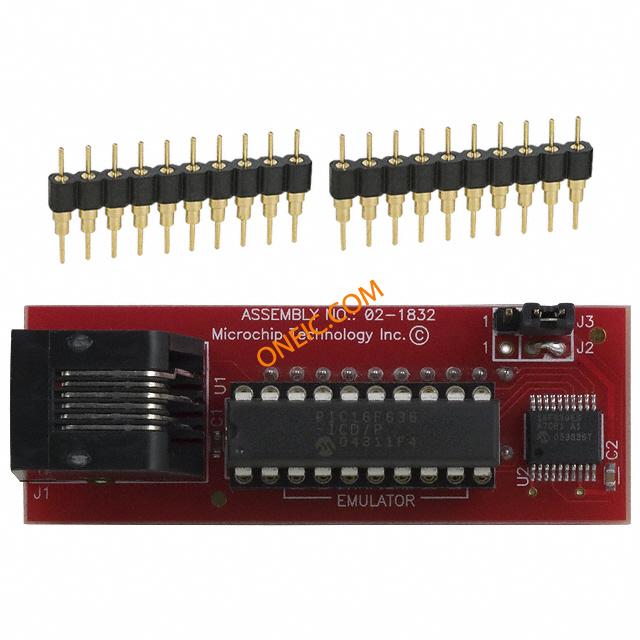

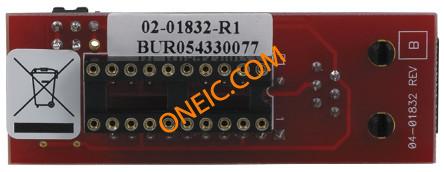

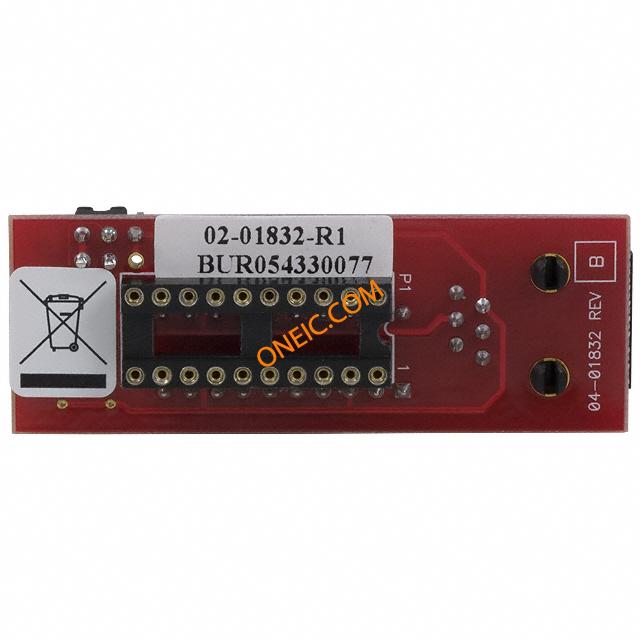

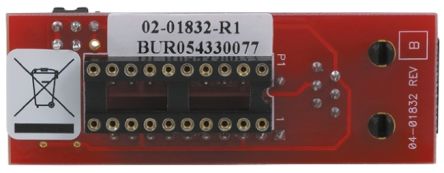

AC162066
| 制造商 | Microchip Technology Inc. |
| 描述 | Evaluation Board For Headers For ICD Devices Sockets & Adapters ICD 2 Header Intrfce MPLAB ICD Header Interface for PIC16 HEADER INTRFC MPLAB ICD2 20PIN AC162066, Header, 8 bit, PIC, Header Interface for PIC16F639 MPLAB ICD HEADER, FOR PIC16F639 HEADERINTERFACE,AC162066 Microchip 8 位 MCU 针座 微控制器开发套件 |
| 分类 |
商业参数
| 最小起订量 | 4 | 单位包装 | 1 |
| 产品类别 | Sockets & Adapters | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 核心类型 | PIC | 供电电压 | :5.5V |
机械参数
| 重量 | 0.25 | 安装类型 | :PCB Through Hole |
| 核心数/总线宽度 | 8 bit | ||
产品信息
| 类型 | Debugger | 产品特性 | :- |
| 技术 | 8 bit | 套件内容 | Header Interface for PIC16F639 |
| 卡标准 | Header | 附件类型 | Transition Header |
| 转换端（适配器端） | :PIC16F785-ICD | 转换自（适配器端） | :20-pin PIC16F785/HV785 |
| 适用产品/相关产品 | ICD2, PIC16F636 | ||
文档与媒体
