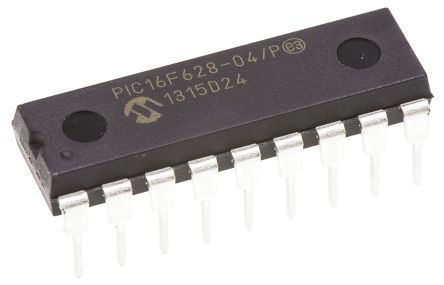

PIC16F628-04/P
| 制造商 | Microchip Technology Inc. |
| 描述 | Buy now, ships today. PIC16F628-04/P - PIC PIC® 16F Microcontroller IC 8-Bit 4MHz 3.5KB (2K x 14) FLASH 18-PDIP from Microchip Technology. View datasheets, pricing and availability from DigiKey now! |
| 分类 |
商业参数
| 最小起订量 | 294 | 单位包装 | 25 |
| 其他名称 | PIC16F62804P | 产品类别 | 8-bit Microcontrollers - MCU |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 25 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 零件状态 | :16F628 |
| 抗辐射加固 | No | ||
电气参数
| 输入端 | 16 | 转速 | 4 MHz |
| 定时器 | 3 x 8 bit | 存储器 | 3.5KBytes |
| RAM 大小 | 224 byte | 内核大小 | 8-Bit |
| 核心类型 | PIC | 频率 | 4 MHz |
| 接口 | SCI/USART | 时钟速率 | 4 MHz |
| 比较器数量 | 2 | 分辨率 | 16bit |
| EEPROM容量 | 128 x 8 | 存储器容量 | 224 B |
| 存储器类型 | :Flash | I/O 数量 | 16 |
| 电压范围 | 3-5.5V | 位数 | :8 |
| 额定电压 | 3 → 5.5 V | 看门狗定时器 | 1 |
| 时钟频率 | :4MHz | 最大频率 | 4MHz |
| DAC数量 | 1 | 振荡器类型 | Internal |
| 供电电压 | 3.3|5 V | 通道数量 | 0 |
| 模拟输入/输出 | 2 | 非易失性存储器 | 128Bytes |
| 程序存储器大小 | 3.5 KB | 程序存储器类型 | Flash |
| 8位定时器数量 | 2 | 最小供电电压 | 3 V |
| 频率（中心/带宽） | 8bit | 最大功耗 | 800 mW |
| 供电电压 (Vcc/Vdd) | 3 V ~ 5.5 V | ||
机械参数
| 宽度 | 6.6mm | 高度 | 3.68mm |
| 长度 | 22.99mm | 重量 | 0.000001 |
| 包装方式 | Tube | 端接方式 | :Through Hole |
| 安装类型 | Through Hole | 安装样式 | Through Hole |
| 引脚数 | :18 | 封装形式 | 18PDIP |
| 冷却的封装 | PDIP | 材料表面处理 | :- |
| 包装数量 | 275 | 尺寸/外形 | 22.99 x 6.6 x 3.68mm |
| 位数 | 18 | 供应商器件封装 | 18-PDIP |
| 核心数/总线宽度 | 8 Bit | 脉冲宽度失真（最大） | 1(16 bit) (CCP) |
产品信息
| SPG | 275 | USB | 0 |
| 类型 | PIC microcontroller | 系列 | PIC16 |
| 闪存大小 | :3.5KB | 片内RAM（通道数×位宽） | No |
| 外设 | Brown-out Detect/Reset, POR, PWM, WDT | 架构 | RISC |
| 连接性 | UART/USART | 可编程性 | Yes |
| 核心处理器 | PIC | 单元数量 | 1 |
| 定时器数量 | 3 | 控制器系列 | :PIC16F |
| 射频系列/标准 | PIC16 | 使用的IC/零件 | :PIC16F628-04/P |
| 微控制器特性 | :2 Kbytes FLASH | ||
