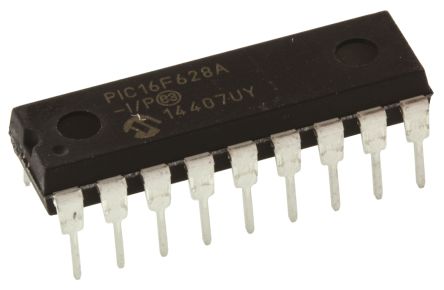

PIC16F628A-I/P
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-bit PIC16 PIC RISC 3.5KB Flash 3.3V/5V 18-Pin PDIP Tube 8-bit Microcontrollers - MCU 3.5KB 224 RAM 16 I/O 8 bit MCU PDIP18 IC MCU 8BIT 3.5KB FLASH 18DIP PIC16F628A-I/P, 8 bit Microcontroller PIC 20MHz 2048 Flash, 224B RAM, 18-Pin PDIP IC, 8BIT FLASH MCU, 16F628, DIP18 IC, 8-BIT FLASH MCU, TUBE25 18-Pin,3.5KBFlash,224RAM,16I/O PIC microcontroller; EEPROM:128B; SRAM:224B; 20MHz; DIP18; 2÷5.5V Microcontroller 8 Bit DIL-18, PIC16F628A-I/P, Microchip Microchip PIC16F 系列 8 bit PIC MCU, 20MHz, 2048 x 14 字，128 B ROM 闪存, 224 B RAM, 18针 PDIP封装 PIC16F 3,5K PDIP18 85°C |
| 分类 |
商业参数
| 最小起订量 | 1 | 单位包装 | 25 |
| 其他名称 | PIC16F628AIP | 产品类别 | 8-bit Microcontrollers - MCU |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 25 |
| 标准封装名称 | PDIP | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | :16F628 | 抗辐射加固 | No |
| 无铅定义 | RoHS-conform | 认证机构 | No |
电气参数
| 输入端 | 16 | 转速 | 20 MHz |
| 定时器 | 1 x 16 bit, 2 x 8 bit | 存储器 | 3.5KBytes |
| RAM 大小 | 224 byte | 内核大小 | 8-Bit |
| 核心类型 | PIC | 频率 | 20 MHz |
| 接口 | USART | 时钟速率 | 20 MHz |
| 比较器数量 | 2 | 分辨率 | 10bit |
| EEPROM容量 | 128Byte | 存储器容量 | 224 B |
| 存储器类型 | FLASH | I/O 数量 | 16 |
| 电压范围 | 2-5.5V | 位数 | :8 |
| 额定电压 | 3 → 5.5 V | 看门狗定时器 | 1 |
| 时钟频率 | :20MHz | 最大频率 | 20MHz |
| DAC数量 | 1 | 振荡器类型 | Internal |
| 供电电压 | 3.3|5 V | 数字I/O线数 | 16pins |
| 分辨率（位） | 0Bit | 串行接口 | 1 |
| 通道数量 | 0 | 模拟输入/输出 | 2 |
| 非易失性存储器 | 128Bytes | 程序存储器大小 | 3.5 KB |
| 程序存储器类型 | Flash | 最小输入电压 | 5.5V |
| 8位定时器数量 | 2 | 最小供电电压 | 3 V |
| 频率（中心/带宽） | 16 bit, 8 bit | 最大功耗 | 800 mW |
| 供电电压 (Vcc/Vdd) | 3 V ~ 5.5 V | ||
机械参数
| 宽度 | 0.28in | 高度 | 0.195in |
| 长度 | 0.92in | 重量 | 0.000001 |
| 包装方式 | Tube | 引脚样式 | Through Hole |
| 端接方式 | :Through Hole | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 引脚数 | :18 |
| 封装形式 | 18PDIP | 冷却的封装 | PDIP |
| 材料表面处理 | :- | 总长度 | 22.86 |
| 包装数量 | PDIP | 尺寸/外形 | 0.92 x 0.28 x 0.195in |
| 位数 | 18 | 外壳尺寸-插件 | 3.3 |
| 供应商器件封装 | 18-PDIP | 核心数/总线宽度 | 8 Bit |
| 脉冲宽度失真（最大） | 1(10 bit) (CCP) | ||
产品信息
| SPG | 400 | USB | No |
| 类型 | PIC microcontroller | 系列 | PIC16 |
| 匹配码 | PIC16F628A-I/P | CAN编号 | 0 |
| 闪存大小 | :3.5KB | SPI编号 | 0 |
| 片内RAM（通道数×位宽） | No | 外设 | Brown-out Detect/Reset, POR, PWM, WDT |
| 架构 | RISC | 连接性 | UART/USART |
| 可编程性 | Yes | 核心处理器 | PIC |
| 内置振荡器 | 4MHz | 单元数量 | 1 |
| 定时器数量 | 3 | 控制器系列 | :PIC16F |
| 标准交期 | 14 weeks | 射频系列/标准 | PIC16 |
| DigiKey可编程 | Yes | 印刷电路板数量 | 18 |
| 微控制器特性 | :BOD, COMP, ICSP, POR, TIMERS, WDT | ||
环境参数
| 温度范围 | :Industrial | 测试温度 | -40°C |
| 工作温度 | -40 to 85 °C | 结工作温度 | 85C |
