01000057H
| 制造商 | |
| 描述 | Fuse Clips PC Auto Clip Brass & Tin Plated Fuse Holder Through Hole FUSE CLIP BLADE 125V 15A PCB |
| 分类 |
商业参数
| 产品 | Blade Clips | 产品类别 | Fuse Clips |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电压 | 125V | 额定电压 | 250 V |
| 供电电压 | 125V | 最大额定电流 | 15 A |
机械参数

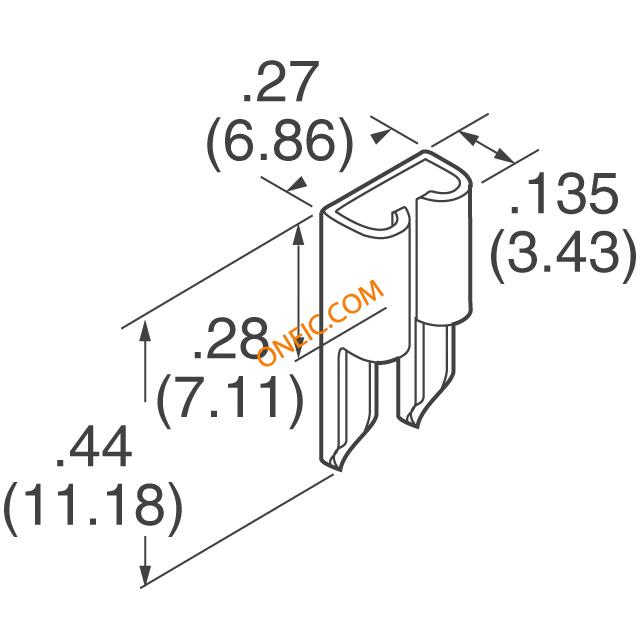

| 宽度 | 3.43 mm | 高度 | 7.11 mm |
| 长度 | 6.86 mm | 包装方式 | Bulk |
| 方向 | Vertical | 基体材料 | Spring Brass |
| 安装类型 | PCB | 接触镀层 | Tin |
| 安装样式 | Through Hole | 保险丝座类型 | Clip |
| 触头材料 | Spring Brass | 总长度 | 6.9 |
| 端接样式 | PC Pin | ||
产品信息
| 类型 | Fuse Clip | 系列 | 100_57 |
| 保险丝尺寸 | ATO | 保险丝类型 | Blade |
| 制造商全称 | Littelfuse | 电路数 | 1 |
| 输出配置 | PCB | 适用产品/相关产品 | ATO |
环境参数
| 机械寿命 | Obsolete | ||
