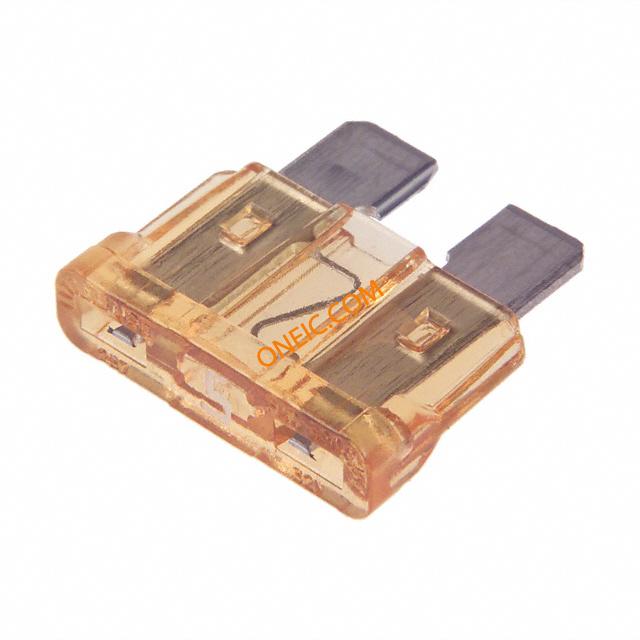

点击放大查看
0257005.PXPV
| 制造商 | |
| 描述 | Fuses 32V 5A Fuse Blade Fast Acting 5A 32V Socket 19.05 X 5.08 X 12.19mm FUSE BLADE 5A 32V ATO FAST-ACT FUSE, ATO, 5A, 32V, FAST ACTING 5A32VATOFUSEW/VISION Automotive fuse ATO 5 A 32 VDC beige, 0257005.PXPV, Littelfuse |
| 分类 |
商业参数
| 产品 | Automotive Fuses | 零件号别名 | 257005 576-257005 |
| 产品类别 | Fuses | 标准包装数量 | 2,000 |
| 工厂包装数量 | 2000 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85361010 |
电气参数
| 指示器 | Without Indicator | 电阻 | 0.018 Ohms |
| 熔断I²t | 26 | 响应时间 | Fast |
| 额定电压 | 32 V | 中断输出 | 1 kA |
| 直流冷态电阻 | 0.01785 Ohm | 最大额定电流 | 5 A |
| 熔断特性 | :Fast Acting | 最小供电电压 | 1000A |
机械参数
| 颜色 | Tan | 深度 | :5.25mm |
| 宽度 | 12.19 mm | 高度 | 12.19 |
| 长度 | :12.3mm | 重量 | 0.141 |
| 直径 | 5.08 mm | 包装方式 | Bulk |
| 插片宽度 | :0.64mm | 刀片尺寸 | :5.22mm |
| 端接方式 | Blade | 基体材料 | Polyamide |
| 安装类型 | Socket | 刀片长度 | :6.4mm |
| 安装样式 | Holder | 封装形式 | 5.08 mm |
| 本体材料 | Thermoplastic | 总长度 | 19.05 |
| 主要材料 | Automotive | 尺寸/外形 | 19.05 mm L x 12.19 mm W x 5.08 mm D |
| 端接样式 | Blade | 连接器颜色 | :Tan |
| 触点数 | 2 | ||
产品信息
| 类型 | ATO Blade Fuse | 系列 | 257 |
| 保险丝尺寸 | ATO | 保险丝类型 | Fast Blow |
| 产品子类型 | Blade Fuse | ||
环境参数
| 必须动作（继电器术语，指必须吸合） | Fast | 工作温度 | - 40 C to + 105 C |
