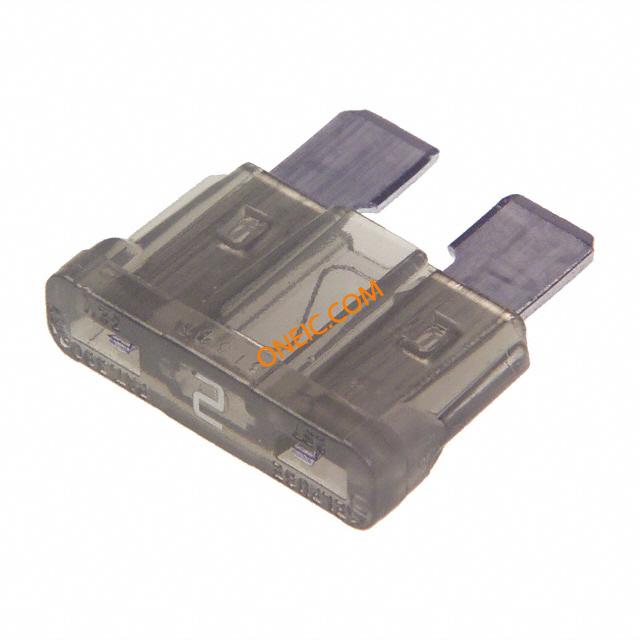

点击放大查看
0257002.PXPV
| 制造商 | |
| 描述 | Fuses 32V 2A Fuse Blade Fast Acting 2A 32V Socket 19.05 X 5.08 X 12.19mm FUSE BLADE 2A 32V ATO FAST FUSE, ATO, 2A 2A32VATOFUSEW/VISION Automotive fuse ATO 2 A 32 VDC grey, 0257002.PXPV, Littelfuse |
| 分类 |
商业参数
| 产品 | Automotive Fuses | 零件号别名 | 257002 576-257002 |
| 产品类别 | Fuses | 标准包装数量 | 2,000 |
| 工厂包装数量 | 2000 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85361010 |
| 抗辐射加固 | No | ||
电气参数
| 指示器 | Without Indicator | 电阻 | 0.05 Ohms |
| 熔断I²t | 1.4 | 响应时间 | Fast |
| 额定电压 | 32 V | 中断输出 | 1 kA |
| 直流冷态电阻 | 0.0535 Ohm | 最大额定电流 | 2 A |
| 熔断特性 | :Fast Acting | 最小供电电压 | 1000A |
| 直流反向电压（Vr）（最大） | 32 V | 额定电压下分断能力 | :1000A |
机械参数
| 颜色 | Gray | 深度 | 5.08 mm |
| 宽度 | 12.19 mm | 高度 | 12.19 mm |
| 长度 | :12.3mm | 重量 | 0.002 |
| 直径 | 5.08 mm | 包装方式 | Bulk |
| 插片宽度 | :0.64mm | 刀片尺寸 | :5.22mm |
| 基体材料 | Polyamide | 安装类型 | Socket |
| 刀片长度 | :6.4mm | 安装样式 | Holder |
| 封装形式 | 5.08 mm | 总长度 | 19.05 mm |
| 尺寸/外形 | 19.05 mm L x 12.19 mm W x 5.08 mm D | 端接样式 | Blade |
| 连接器颜色 | :Grey | 触点数 | 2 |
| 位数 | 2 | ||
产品信息
| 类型 | ATO Blade Fuse | 系列 | 257 |
| 保险丝尺寸 | ATO | 保险丝类型 | Fast Blow |
| 产品子类型 | Blade Fuse | ||
环境参数
| 必须动作（继电器术语，指必须吸合） | Fast | 工作温度 | - 40 C to + 105 C |
