0257003.PXPV
| 制造商 | |
| 描述 | Fuses 32V 3A 3A 32V AUTO ATO violet FUSE BLADE 3A 32V ATO FAST-ACT 3A32VATOFUSEW/VISION Automotive fuse ATO 3 A 32 VDC violet, 0257003.PXPV, Littelfuse |
| 分类 |
商业参数
| 最小起订量 | 2000 | 产品 | Automotive Fuses |
| 单位包装 | 2000 | 产品类别 | Fuses |
| 标准包装数量 | 2,000 | 工厂包装数量 | 2000 |
合规参数
| RoHS | RoHS Compliant | 汽车级 | NO |
| 无铅定义 | RoHS-conform | 认证机构 | UL/CSA |
电气参数
| 电流 | 3A | 电压 | 32V |
| 指示器 | Without Indicator | 电阻 | 0.031 Ohms |
| 熔断I²t | 7.4 | 响应时间 | Fast |
| 额定电压 | 32 V | 中断输出 | 1 kA |
| 直流冷态电阻 | 0.0311 Ohm | 最大额定电流 | 3 A |
| 最小供电电压 | 1000 | ||
机械参数
| 轴 | RADIAL | 颜色 | Violet |
| 间距 | 4.1mm | 宽度 | 12.19 mm |
| 直径 | 5.08 mm | 包装方式 | Bulk |
| 基体材料 | Polyamide | 安装类型 | Holder |
| 安装样式 | Holder | 封装形式 | 5.08 mm |
| 尺寸/外形 | 19.05 mm L x 12.19 mm W x 5.08 mm D | 端接样式 | Blade |
产品信息
| 类型 | ATO Blade Fuse | 系列 | 257 |
| 保险丝尺寸 | ATO | 保险丝类型 | Fast Blow |
| 匹配码 | FU3AAUTO | 产品子类型 | Blade Fuse |
| 固件版本 | violet | 标准交期 | 99 weeks |
环境参数
| 工作温度 | - 40 C to + 105 C | ||
文档与媒体
相关型号
01550300Z
Littelfuse
Fuse Holders Inline Fuse Holder In Line Bulk ACS INLINE FUSEHLDR FUSE HLDR BLADE 32V 20A PNL MNT Fuse Holder 2-Pin Bulk FUSE HOLDER, IN LINE Fuse Holder Inline FUSEHOLDER FOR ATO ASSEMB. 8" W
01550400Z
Littelfuse
Fuse Holders Inline Fuse Holder 20A 32V Wire In Line ACS In-Line Fuseholder for ATO FUSE HLDR BLADE 32V 30A PNL MNT FUSE HOLDER, IN LINE Fuse Holder Inline
01550430ZXU
Littelfuse
Fuse Holders ATO INLINE UNASSMBLD ACS INLINE FUSEHLDR UNASSEMBLED FUSE HLDR BLADE 32V 30A PNL MNT FUSE HOLDER, IN LINE Fuse Holder ATO INLINE UNASSMBLD
3544-2
Keystone Electronics
Fuse Clips AUTO FUSEHOLDER .032 FUSE BLOCK BLADE 500V 15A PCB Fuse Clip 30A 500VAC Faston Through Hole FuseClip;500VAC;30A;PCB;For0.110in.x0.032in.minibladefuses
01000057H
Littelfuse
Fuse Clips PC Auto Clip Brass & Tin Plated Fuse Holder Through Hole FUSE CLIP BLADE 125V 15A PCB
FHAC0001Z
Littelfuse
Fuse Holders Fuseholder w/ Cover Box FUSE HLDR BLADE 32V 20A IN LINE
3555
Littelfuse Inc
FUSE CLIP FOR FK3/TOE BLADE FUSE FUSE CLIP BLADE

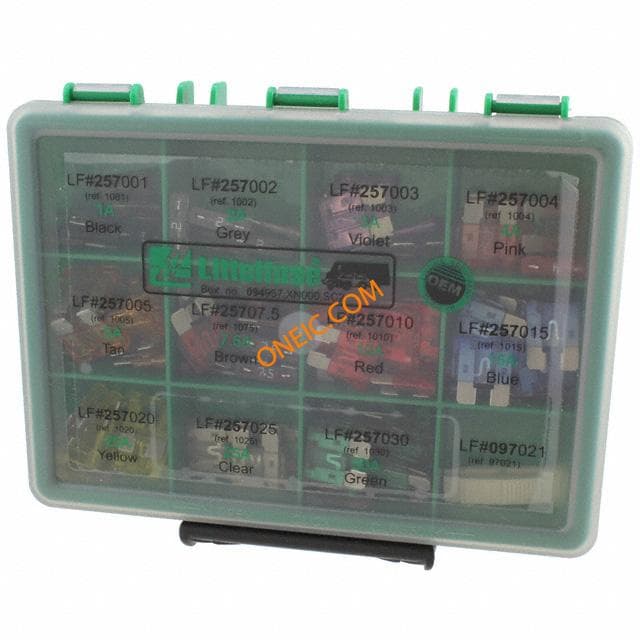

00940957XXN
