点击放大查看

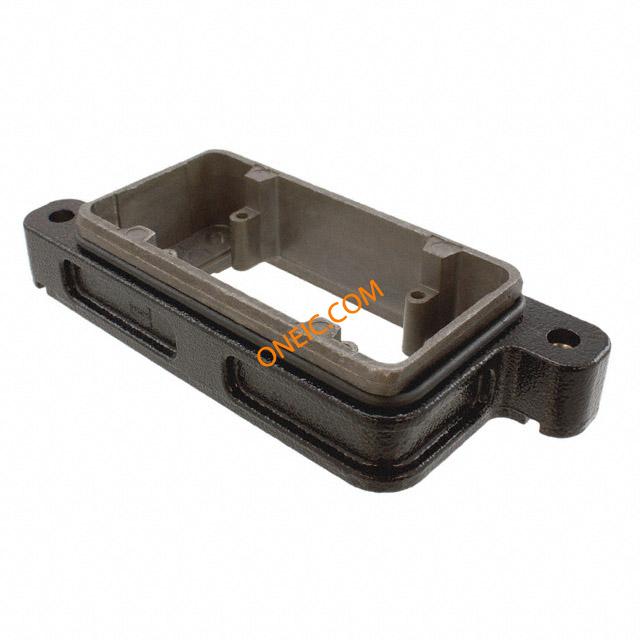

09400100311

制造商	HARTING Technology Group
描述	HAN 10 HPR BASE PANEL SCREW LOC Heavy Duty Power Connectors BULKHEAD MOUNTING HAN 10B SCW LCK IP68 metal panel mount housing,Size 10B 10BHPRPANELMOUNT Han HPR Housings: Han 10 HPR Base Panel Screw locking Harting Han B, Han HPR 系列电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	010 0311 09 09-40-010-0311 40	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

Compliant

机械参数

尺寸	10B	包装方式	Bulk
外壳颜色	Black	连接器类型	Base - Panel Mount
外壳涂层	Epoxy Powder Paint	安装样式	Vertical
壳体材料	Aluminum, Die Cast	尺寸/外形	5.709" L x 2.283" W x 1.138" H (145.01mm x 58.00mm x 28.90mm)

产品信息

类型	CONNECTORS	样式	Bottom Entry
系列	Han C	CAD图纸	3D CAD Model
产品子类型	Housings	锁定位置	Screw Locks on Hood

环境参数

防护等级

IP68/69K - Dust Tight, Waterproof

工作温度

-40°C ~ 125°C
