09330006115

制造商	HARTING Technology Group
描述	HAN E M CRIMP CONTACT AU 18AWG Heavy Duty Power Connectors MALE INSERT STD GOLD PLATED Han E Male Crimp Contact Au 0.75mm 18AWG CrimpPowerContact,GoldPlated,18AWG,Male Contact; male; 0.75mm2; Han E; gold plated; crimped; 16A; 1mΩ Han E Contacts Male: Han E M Crimp Contact Au 0.75 mm/18AWG Harting Han Contacts 系列公插压接触点 , 额定电流 16A/ 830 V, 适用于大负荷电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	000 09 09-33-000-6115 33 6115	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	100

合规参数

RoHS

Compliant

电气参数

电压	830V	额定电压	830 V
接触电阻	1mΩ	最大额定电流	16A
反向漏电流 @ Vr	16A

机械参数

重量	1.33 g	包装方式	Bulk
导线线规	18 AWG	安装类型	crimped
插针或插孔	Pin	连接器类型	male
接触镀层	Gold	插入力	Male
材料表面处理	Gold	触头材料	Copper Alloy
包装数量	100	连接器 - 电缆	contact
端接样式	Crimp	接触件端接	Crimp
接触镀层厚度	78.7µin (2.00µm)	线规或范围 - AWG	18
线规或范围 - mm²	0.75mm2	触点材料 - 镀层	gold plated

产品信息

SPG	100	类型	18AWG
连接器性别	Male	系列	Han-EEE
产品子类型	Contacts	附件类型	Crimp Contact
适配器系列	Han E	测量范围	Han Coax、Han Com、Han E、Han EE、Han EEE、Han Modular 70A 混合
单元数量	1	适用产品/相关产品	Heavy Duty Power Connector

环境参数

机械寿命

500cycles

相关型号

09990000110

HARTING

Crimpers HAN CRIMP TOOL FOR C D E CONTACTS Crimp Tool Han Hand Tools HAN CRIMP TOOL FOR C D E CONTACTS HAN HAND CRIMP TOOL Parallel action crimp tool for HAN conn HartingCrimpTool Tool: for crimping; terminals; 0.14÷4mm2; 26÷12AWG; Series: Han Han Tools: Han Hand Crimp Tool Harting Crimp Contact 压接工具 , 适用于26 → 12 AWG 线规格

¥4962.1572

详情

09990000001

HARTING

Crimpers HAN C CRIMP TOOL Crimping Tool For Contacts Han-Yellock Hand Tools HAN C CRIMP TOOL BUCHANAN CRIMPING TOOL. HAN Power Tool; Industrial; Crimp; Single; 6.3 mm PowerTool,Industrial;Crimp;Single;6.3mm Tool: for crimping; terminals; 0.14÷2.5mm2; Series: Han E Han Tools: Buchanan Crimping Tool Han Harting Han D 系列压接工具 , 适用于Han D 触点

¥3727.5560

详情

09990000021

HARTING

Crimpers HAN D CRIMP TOOL D/ Han Contacts 0.14-1/1.5/2.5mm Hand Tools HAN D CRIMP TOOL HAN CRIMP TOOL WITH LOCATOR Service crimp tool for HAN connector HandcrimpingToolf.HanD/HanE0,14-1/ Tool: for crimping; terminals; Series: Han D Han Tools: Han Crimp Tool with Locator Harting 压接工具 , 适用于0.5 → 2.5 mm² 线规格

¥1521.8400

详情

09140203001

Harting Technology Group

Conn Housing M 20 POS Crimp ST Cable Mount Heavy Duty Power Connectors HAN 20 MOD-M HAN EEE MODULE, CRIMP MALE HAN20Mod-M Connector: HAN; module; male; Han Modular EEE; PIN:20; 16A; 500V Han-Modular Modules: Han 20 Mod-M Harting HAN Modular 系列 20 路公插 RJ45-Rangierfeld , 额定电流 16A/ 500 V

¥26.8940

详情

09320183001

Harting Technology Group

Conn Housing M 18 POS Crimp ST Heavy Duty Power Connectors HAN EE 18P M CRIMP ORDER CONTACTS SEP HAN EE 18POS INSERT MALE CRIMP HanEE18Pos.InsertMaleCrimp Connector: HAN; male; Han EE; PIN:18; w/o terminals; 500V Harting Han EE 系列 4行 18针 18P+E极插头插入式插件

¥56.1237

详情

09320323001

Harting Technology Group

Conn Housing M 33 POS Crimp ST Heavy Duty Power Connectors HAN EE 32P M CRIMP ORDER CONTACTS SEP HAN 32EE CRIMP TERM INSERT MALE RECTANGULAR HAN INSERT, PLUG 32WAY CRIMP Connector,MaleInsert,32Contacts Connector: rectangular; male; Han EE; PIN:32; size 16B; 16A; 500V Han EE Male Insert Crimp: Han 32EE Crimp Term Insert Male Harting Han EE 系列 4行 32针 32P+E极插头插入式插件

¥84.0840

详情

09320463001

Harting Technology Group

Conn Rectangular M 46 POS Crimp ST Panel Mount Heavy Duty Power Connectors HAN EE 46P M CRIMP ORDER CONTACTS SEP HAN EE CRIMP TERM INSERT MALE Connector, han EES,46 way, male HANEECRIMPTERMINSERTMALE Connector: rectangular; male; Han EE; PIN:46; size 24B; 16A; 500V Han EE Male Insert Crimp: Han EE Crimp Term Insert Male Harting Han EE 系列 4行 46针 46P+E极插头电源连接器

¥212.1021

详情

09330242602

Harting Technology Group

Conn Housing F 24 POS Crimp ST Panel Mount Heavy Duty Power Connectors HAN E 24P M CRIMP ORDER CONTACTS SEP HAN E 24 POS. M INSERT CRIMP Han E 24P+E insert for plg contact,16A Connector,MaleInsert,24Contacts Connector: HAN; male; Han E; PIN:24; 24+PE; size 24B; w/o terminals Han E Male Insert-Crimp: Han E 24 Position M Insert Crimp Harting Han E 系列 2行 24针插头电源连接器

¥86.0200

详情

09320103001

Harting Technology Group

Conn Housing M 11 POS Crimp ST Heavy Duty Power Connectors HAN EE 10P M CRIMP ORDER CONTACTS SEP HAN EE 10 POS INSERT MALE CRIMP HanEE10Pos.InsertMaleCrimp Connector: HAN; male; Han EE; PIN:10; 10+PE; size 6B; w/o terminals Harting Han EE 系列 10针插头电源连接器

¥49.6547

详情

09140083001

Harting Technology Group

Conn Housing M 8 POS Crimp ST Heavy Duty Power Connectors HAN EE 8P MALE ORDER CONTACTS SEP HAN EE MODULE, CRIMP MALE HanEEModule,MaleInsert,8contacts,400volts,16Amps Connector: rectangular; module; male; Han Modular EE; PIN:8; 16A Han-Modular Modules: Han 8 Mod-Male-C 16 A Harting HAN Modular 系列公插插入式触点模块 , 额定电流 16A/ 400 V, 适用于大负荷电源连接器

¥46.4834

详情

09380323001

Harting Technology Group

Conn Housing M 8Power/24Signal/1Ground POS Crimp ST Heavy Duty Power Connectors MALE INSERT HAN 10B CRIMP TERM HAN K 8/24 POS. M INSERT CRIMP Han-Com(R) 8/24P+E crimp skt insert Male HANK8/24POS.MINSERTCRIMP Connector: HAN; male; Han Com; PIN:32(8+24); size 10B; Inom 1:16A Han HSC Male Insert: Han K 8/24 Position M Insert Crimp Harting Han K 系列 33针插头电源连接器外壳

¥225.4968

详情

09140063041

Harting Technology Group

Conn Housing M 6 POS Crimp ST Heavy Duty Power Connectors MOD FOR MALE CON HAN E 6 CRIMP CON HAN E PROTECTED MOD CRIMP MALE HanEProtectedModule,MaleInsert,6Contacts,830Volts,16Amps Connector: HAN; module; male; Han Modular E Protected; PIN:6; 16A Harting HAN Modular 系列 2行 6针插头电源连接器外壳

¥28.0280

详情

09120083001

Harting

HAN Q 8/0 MALE INSERT CRIMP TERM Heavy Duty Power Connectors MALE INSERT 8 POLE CRIMP TERM MALE INSERT HAN Q 8/0 MALEINSERTHANQ8/0 Han Q Male Insert: Han Q 8/0 Male Insert Crimp Term Harting Han Q 系列 3行 9针插头电源连接器 , 电缆安装

¥78.0300

详情

09320403001

Harting

HAN 40 EEE-M-C Han 40EEE Male Connector Heavy Duty Power Connectors 40+PE 16A 500V MALE INSERT 40EEEMALE Connector: HAN; male; Han EEE; PIN:40; 40+PE; size 16B; crimped; 16A Han EE Male Insert Crimp: Han 40 EEE-M-C Harting Han EEE 系列 41针插头电源连接器外壳 , 电缆安装

¥126.8400

详情

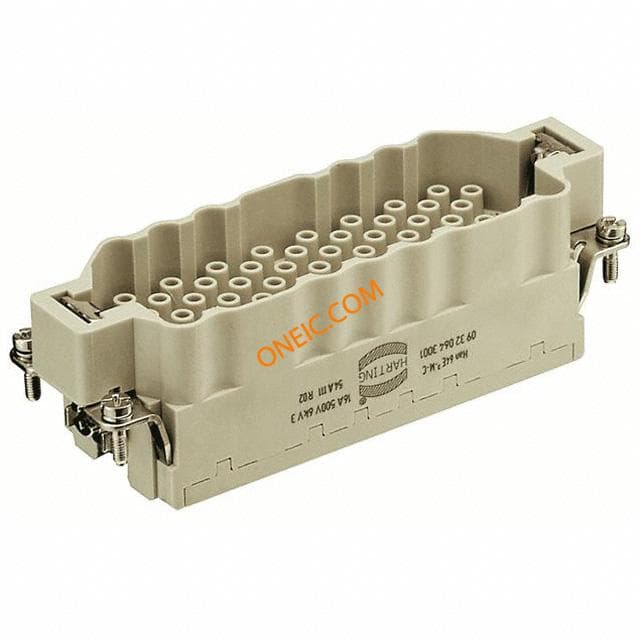

09320643001
