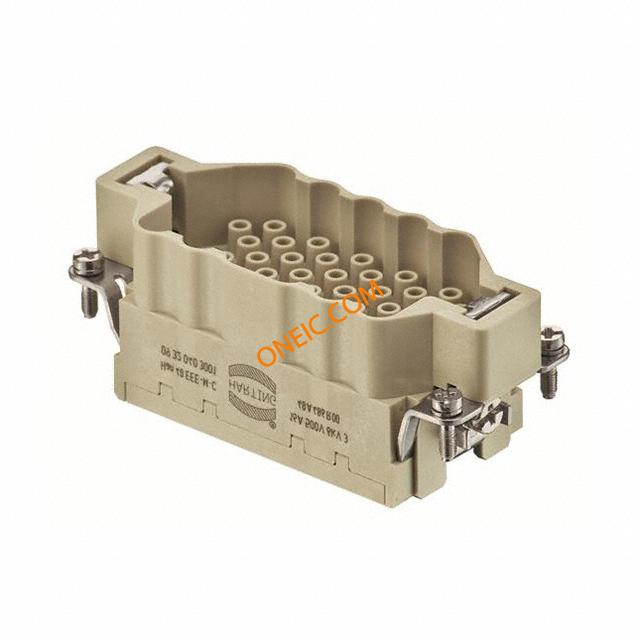

芯天下
09320403001

点击放大查看

09320403001

制造商
HARTING Technology Group
描述
HAN 40 EEE-M-C Han 40EEE Male Connector Heavy Duty Power Connectors 40+PE 16A 500V MALE INSERT 40EEEMALE Connector: HAN; male; Han EEE; PIN:40; 40+PE; size 16B; crimped; 16A Han EE Male Insert Crimp: Han 40 EEE-M-C Harting Han EEE 系列 41针 插头 电源连接器外壳 , 电缆安装
分类
连接器解决方案重载连接器重载连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名040 09 09-32-040-3001 3001 32产品类别Heavy Duty Power Connectors
标准包装数量1

合规参数

RoHSCompliant材料阻燃等级UL94 V-0

电气参数

额定电压500V最大额定电流16A
连接器类型 - 电压输入w/o terminals

机械参数

尺寸16B颜色Gray
重量0.04 kg包装方式Bulk
方向直重量（g）78.00000
触头类型Han®安装类型crimped
连接器类型Insert without Contacts安装样式Straight
封装形式size 16B插入力Male
壳体材料Polycarbonate (PC)包装数量1
尺寸/外形16B端接样式Crimp
触点数41位数40+Ground
第一连接器安装特征40+PE

产品信息

SPG1类型CONNECTORS
连接器性别Male系列Han EEE
CAD图纸3D CAD Model产品子类型Inserts
适配器系列Han EEE单元数量1

环境参数

工作温度-40°C ~ 125°C

相关型号

09330006119

09330006119

Harting Technology Group

Contact PIN Crimp ST Cable Mount Heavy Duty Power Connectors MALE INSERT STD GOLD PLATED HAN E M CRIMP CONTACT AU WG 4MM HanEMCrimpContactAuWG4mm Harting Han E 系列 公插 触点

¥19.0944
详情

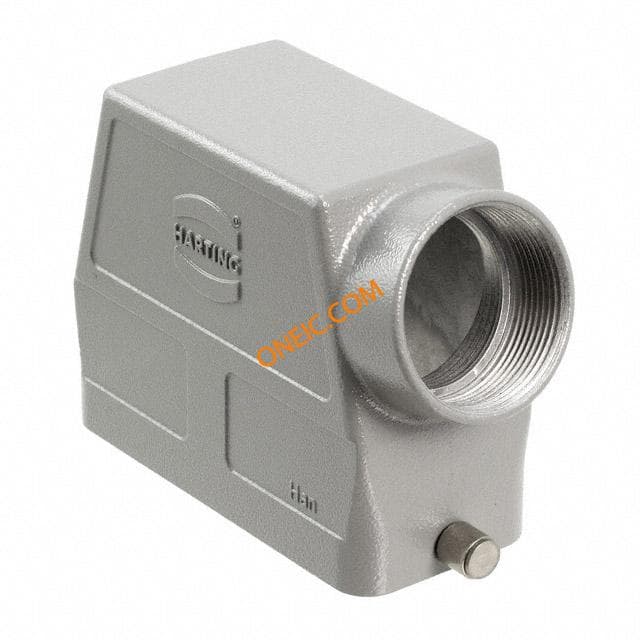

09300160541

09300160541

Harting Technology Group

Connector Accessories 9 POS Hood Metal Heavy Duty Power Connectors HAN 16B PG29 SIDE METAL HOOD CONN HAN 16B HOOD SIDE PG29 Han B Hood Side Entry 2 Pegs PG 29 HanBHoodSideEntry2PegsPG29 Enclosure: for Han connectors; Han; size 16B; for cable; angled Han B Hoods: Han B Hood Side Entry 2 Pegs PG 29 Harting Han B 系列 侧入 电源连接器

¥181.0099
详情

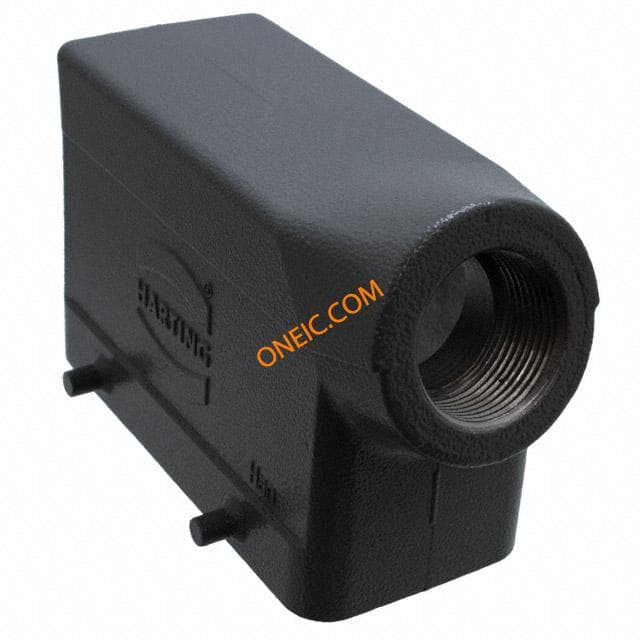

19300161521

19300161521

Harting Technology Group

Connector Accessories 9 POS Hood Metal Heavy Duty Power Connectors HAN 16B M25 SIDE METAL HOOD HAN B HOOD SIDE LC 4 PEGS M25 Low type side entry metric hood,M25 16B HOOD, 16B, SIDE ENTRY, M25, LC HAN16BHOODSIDEENTRYLC4PEGSM25 Enclosure: for rectangular connectors; Han; size 16B; for cable Han B Hoods: Han B Hood Side Entry LC 4 Pegs M25 Harting Han B 系列 侧入 电源连接器

¥89.6444
详情
09330006123

09330006123

Harting Technology Group

Contact PIN Crimp ST Cable Mount Heavy Duty Power Connectors HAN 16A MALE AWG14 GOLD PLATED HAN E M CRIMP CONTACT AU 14AWG Han E Male Crimp Contact Au 2.5 mm 14AWG CrimpPowerContact,GoldPlated,14AWG,Male HanE-Kontaktstift-c2,5mm# Contact; male; 2.5mm2; Han E; gold plated; crimped; 16A; 1mΩ Han E Contacts Male: Han E M Crimp Contact Au 2.5 mm/14AWG Harting Han Contacts 系列 公插 压接触点 , 额定电流 16A/ 830 V, 适用于大负荷电源连接器

¥19.3120
详情

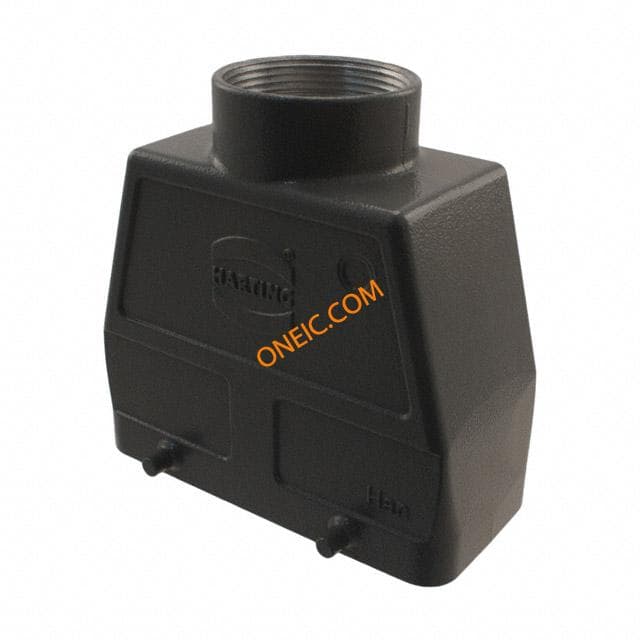

09300160421

09300160421

Harting Technology Group

Connector Accessories 9 POS Hood Metal Heavy Duty Power Connectors HAN 16B PG29 TOP METAL HOOD HAN B HOOD TOP HC 4 PEGS PG 29 High type top entry hood,PG29 16B Hood;Metal;93.5mmLx57mmWx92mmH;TwoLever;RoHSCompliant Han B Hood Top Entry HC 4 Pegs, gray Harting Han B 系列 顶入 护罩

¥163.0800
详情

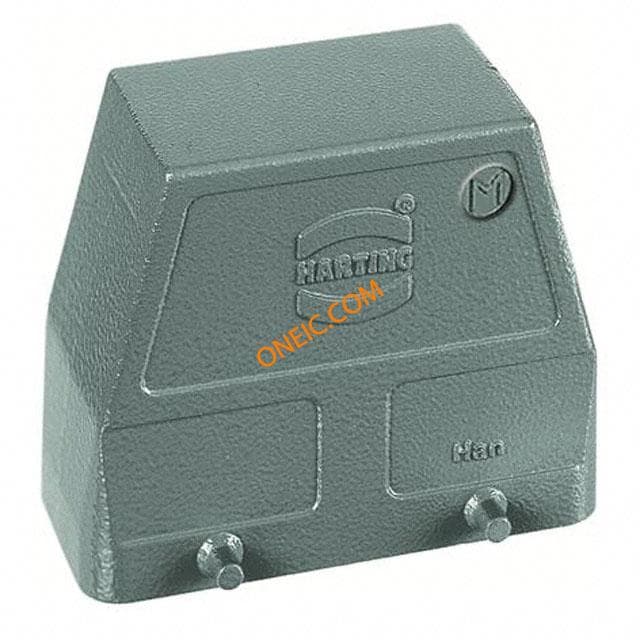

19300160527

19300160527

Harting Technology Group

Connector Accessories Hood Metal Heavy Duty Power Connectors HAN 16B M32 SIDE METAL HOOD HAN B HOOD SIDE HC 4 PEGS M32 High type side entry metric hood,M32 16B HANBHOODSIDEENTRYHCPEGSM32 Enclosure: for rectangular connectors; Han; size 16B; for cable Han B hood standard side entry, size 16 B, high construction, 2 lever locking system Harting Han B 系列 侧入 电源连接器

¥89.2202
详情
09330006104

09330006104

Harting Technology Group

Contact PIN Crimp ST Cable Mount Heavy Duty Power Connectors HAN E MALE AWG 16 SILVER PLATED CRIMP HAN E M CRIMP CONTACT AG 16AWG Han-Com(R) crimp male contact,1.5sq.mm Conn Contact M 1Power POS Crimp ST Cable Mount CrimpPowerContact,SilverPlated,16AWG,Male Contact; male; 1.5mm2; Han E; silver plated; crimped; 16A; 1mΩ Han E Contacts Male: Han E M Crimp Contact Ag WG 16AWG Harting Han Contacts 系列 公插 压接触点 , 额定电流 16A/ 500 V, 适用于大负荷电源连接器

¥1.2054
详情
09300160420

09300160420

Harting

HAN B HOOD TOP HC 4 PEGS PG 21 Heavy Duty Power Connectors HAN 16B PG21 TOP ENT METAL HOOD High type top entry hood,PG21 16B Connector,Hood,6Position Han B Hoods: Han B Hood Top Entry HC 4 Pegs PG 21 Harting Han B 系列 顶入 护罩

¥135.1160
详情

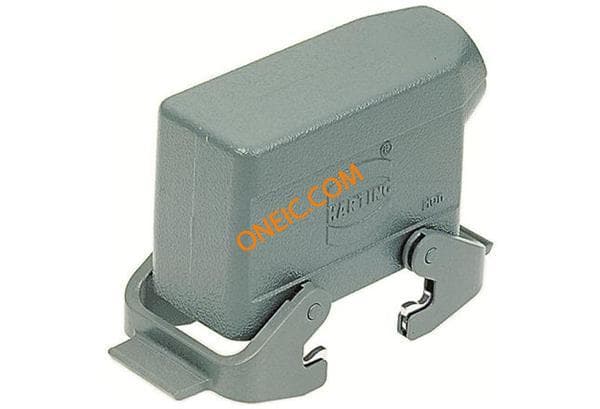

09300161530

09300161530

Harting

HAN B HOOD SIDE LC 2 LEVER PG 21 Heavy Duty Power Connectors METAL HOOD HAN 16B 2 LVR LCKING Low type side entry 2lever hood,PG21 16B HanMHoodSideEntryHC4PegsPG29 HOODSIDEENTRYSIZE16B Enclosure: for Han connectors; Han; size 16B; for cable; angled Han B Hoods: Han B Hood Side Entry LC 2 Levers PG 21 Harting Han B 系列 侧入 电源连接器

¥82.5366
详情

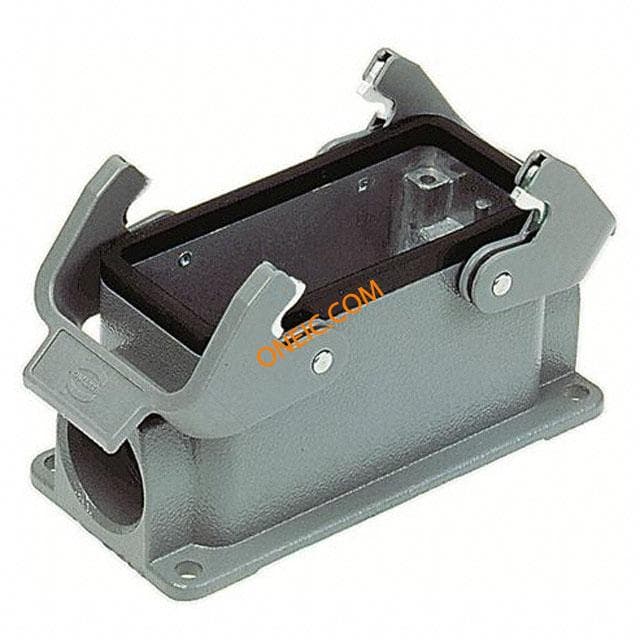

19300161271

19300161271

Harting

HAN 16B BASE SURFACE LC 2 X M25 Heavy Duty Power Connectors HAN16B-ASG2-QB-M25 HAN16BBASESURFACELC2xM25 Enclosure: for Han connectors; Han; size 16B; with double latch Han B Housings: Han 16B Base Surface LC 2 x M25 Harting Han B 系列 电源连接器 , 表面安装

¥201.0254
详情
19300160447

19300160447

Harting

HAN 16 B HOOD TOP M32 Heavy Duty Power Connectors HAN 16B M32 TOP METAL HOOD HAN 16 B HOOD TOP ENTRY 2 PEGS M32 HAN16BHOODTOPENTRY2PEGSM32 Enclosure: for Han connectors; Han; size 16B; for cable; high Han B Hoods: Han 16 B Hood Top Entry M32 Harting Han B 系列 顶入 电源连接器

¥247.9008
详情

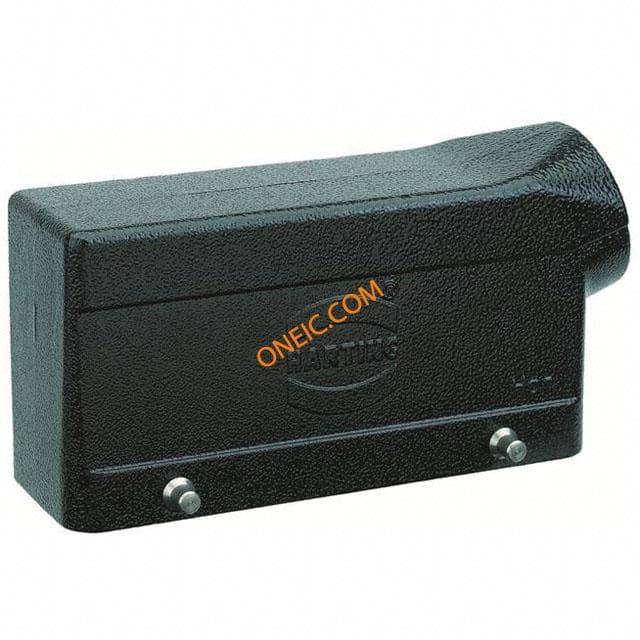

19370161521

19370161521

Harting

HAN M HOOD SIDE LC 4 PEGS M25 Heavy Duty Power Connectors METAL HOOD HAN 16B 2 LVR LCKING Han M Hoods: Han M Hood Side Entry LC 4 Pegs M25 Harting HAN M 系列 侧入 电源连接器外壳

¥349.4364
详情

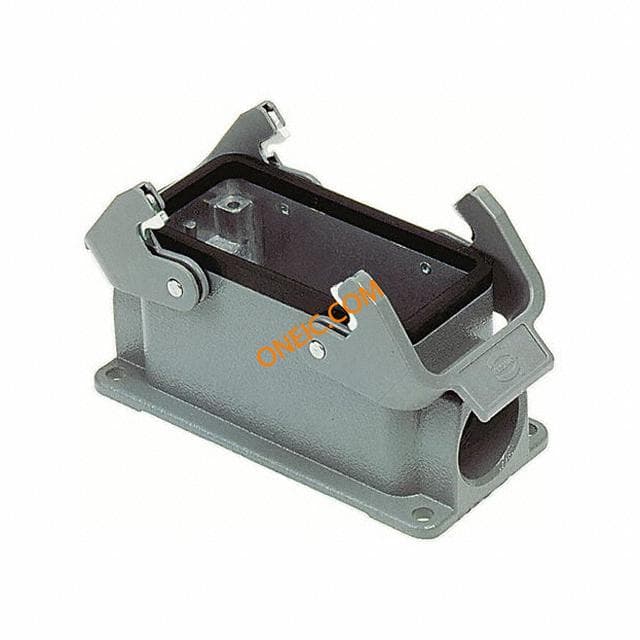

09300161230

09300161230

Harting

HAN B BASE LC 2 LEVERS 1 P Heavy Duty Power Connectors HAN 16B SURFACE MT 1 SIDE ENTRY Surface base housing module,16B Surfacebasehousingmodule,16B Enclosure: for Han connectors; Han; size 16B; with double latch Han B Housings: Han B Base Surface LC 2 Levers 1 Entry P Harting Han B 系列 电源连接器外壳

¥191.4880
详情

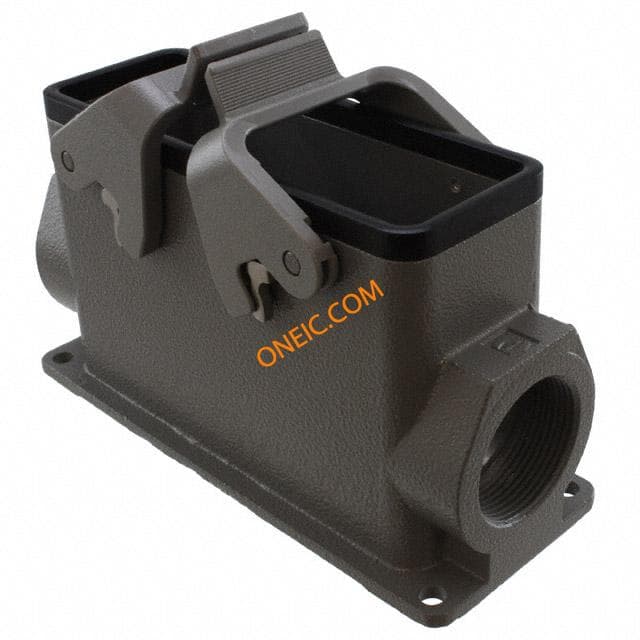

19300240272

19300240272

Harting

HAN B BASE HC 2 LEVERS 2 X M32 Heavy Duty Power Connectors SURFACE MOUNTING HSG HAN 24B 2 SIDE ENTRY High SMT 24B housing w/2levers,M32 SIDEENTRYHOOD,SIZE24B,METAL,Each Enclosure: for Han connectors; Han; size 24B; with double latch Han B Housings: Han B Base Surface HC 2 Levers 2 x M32 Harting Han B 系列 电源连接器

¥144.6823
详情
19300160232

19300160232

Harting

HAN 16B SM BASE HC 1 X M32 Heavy Duty Power Connectors HAN16B HC2 HAN16BSMBaseHC1xM32 Enclosure: for Han connectors; Han; size 16B; with double latch Han B Housings: Han 16B SM Base HC 1 x M32 Harting Han B 系列 电源连接器

¥119.5600
详情
19300320527

19300320527

Harting

HAN B HOOD SIDE HC 4 PEGS M32 Heavy Duty Power Connectors HAN 32B M32 SIDE METAL HOOD HANBHoodSideEntryHC4pegsM32 Han B Hoods: Han B Hood Side Entry HC 4 pegs M32 Harting Han B 系列 侧入 电源连接器

¥340.6800
详情

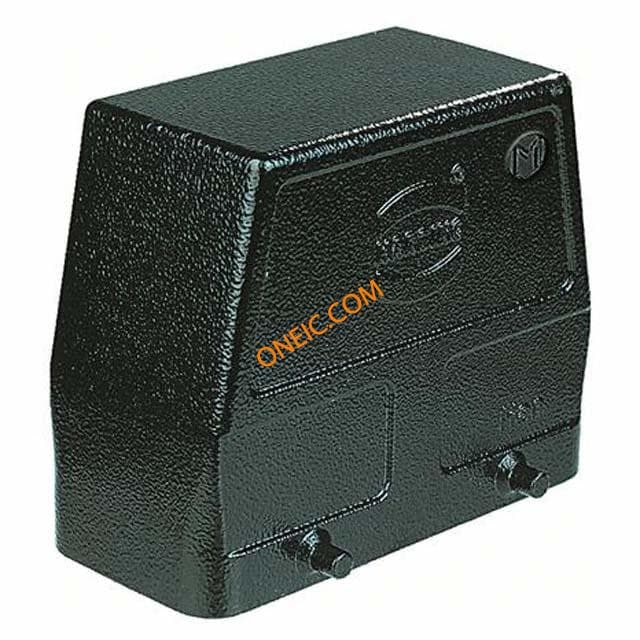

19370160527

19370160527

Harting

HAN 16M-GS-M32 Heavy Duty Power Connectors METAL HOOD HAN 16B 2 LVR LCKING Han M Hoods: Han 16M-gs-M32

¥295.8700
详情
09400160311

09400160311

Harting

HAN 16 HPR BASE PANEL SCREW LOC Heavy Duty Power Connectors BULKHEAD MOUNTING MTL SCRW LOCKING HPR IP68 panel mount housing,16B HAN16HPRBASEPANELSCREWLOCKING Han HPR Housings: Han 16 HPR Base Panel Screw Locking Harting Han B, Han HPR 系列 电源连接器

¥237.2336
详情

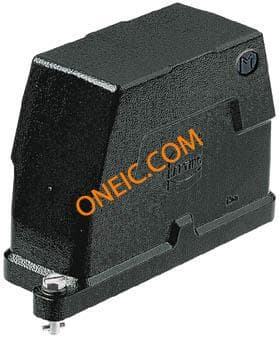

19400160512

19400160512

Harting

HAN 16 HPR HOOD SIDE M32 SCREW Heavy Duty Power Connectors METAL HOOD HAN 16B SCRW LCK Metric side entry IP68 hood,M32 16B 16BHPRS-HOODM32 Han HPR Hoods: Han 16 HPR Hood Side Entry M32 Screw Loc Harting Han HPR 系列 侧入 电源连接器

¥429.5995
详情

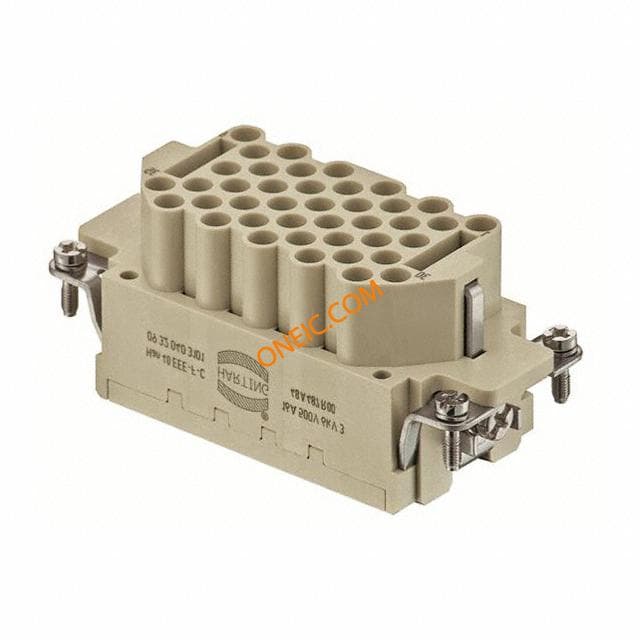

09320403101
