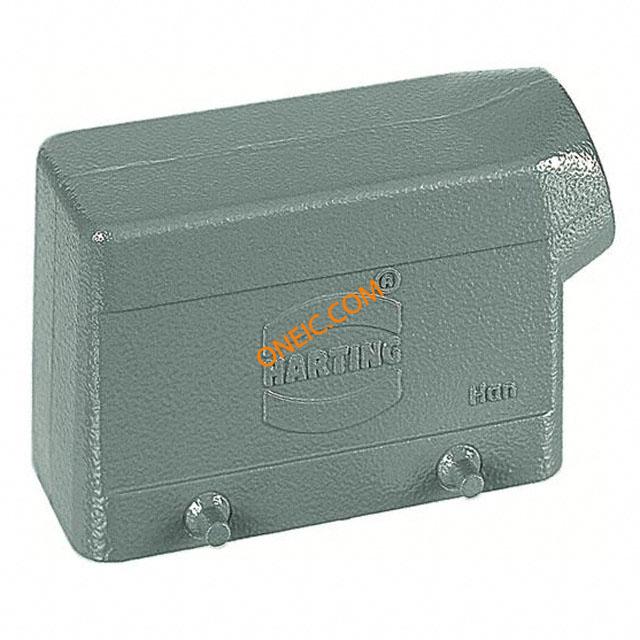

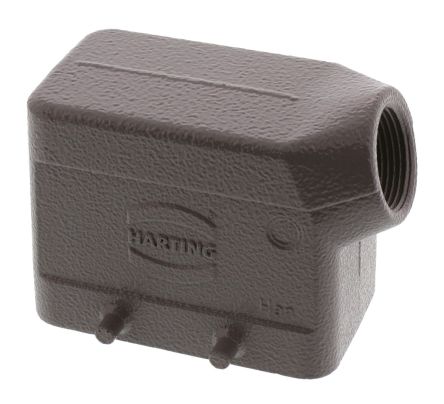

09300101521

制造商	HARTING Technology Group
描述	HAN B HOOD SIDE LC 4 PEGS PG 16 Heavy Duty Power Connectors HAN 10B PG16 SIDE METAL HOOD Low side entry hood for 2 lever PG16 HANBHOODSIDEENTRYLC4PEGSPG16 Enclosure: for Han connectors; Han; size 10B; for cable; angled Han B Hoods: Han B Hood Side Entry LC 4 Pegs PG 16 Harting Han B 系列顶入电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	010 09 09-30-010-1521 1521 30	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

Compliant

电气参数

连接器类型 - 电压输入

angled

机械参数

尺寸	10B	重量	0.14 kg
包装方式	Bulk	方向	angled
螺纹尺寸	PG16	重量（g）	150.00000
外壳颜色	Gray	安装类型	on cable
衬套螺纹	PG16	连接器类型	Hood
外壳涂层	Powder Coated	安装样式	Side
封装形式	size 10B	插入力	Female
锁定特性	for double latch	壳体材料	Aluminum, Die Cast
尺寸/外形	2.858" L x 1.693" W x 2.244" H (72.60mm x 43.00mm x 57.00mm)	端接样式	Cable
触点数	1	供应商器件封装	for Han connectors
外壳与棱镜材料	aluminium alloy

产品信息

类型	CONNECTORS	样式	Side Entry
系列	Han B	产品子类型	Hoods
锁定位置	Locking Clip on Base Bottom	附件类型	Hood
适配器系列	Han	单元数量	1

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
