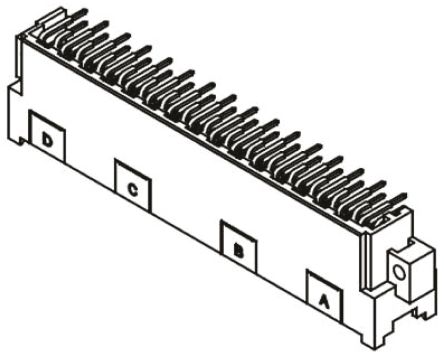

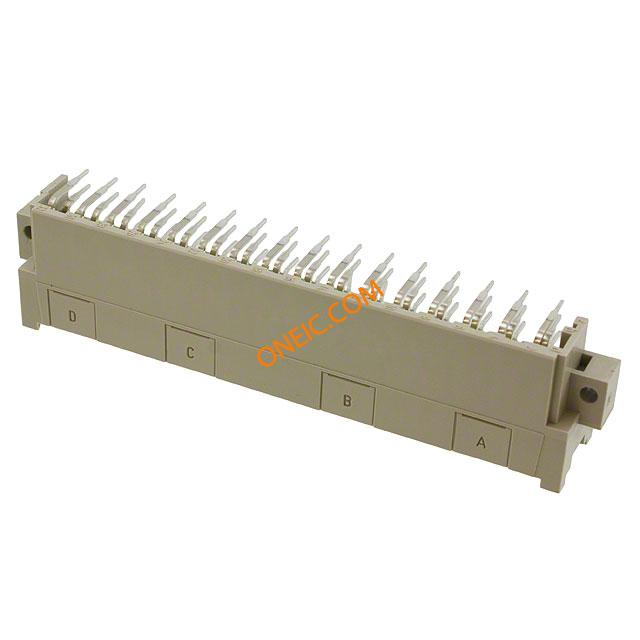

09061486921

制造商	HARTING Technology Group
描述	DIN 41612 Connectors DIN-POWER F048MS-3,0C1-2-V1 DIN-POWER F048MS-3,0C1-2-V1 Connector DIN-Power solder 48-way m ConnectorDIN-Powersolder48-waym Harting 09 06 系列 48 路 2.54 mm, 5.08 mm 节距, F型 C2等级, 3 行 z/b/d, 直角 DIN 41612 插头, 焊接端接
分类	连接器解决方案背板连接器DIN 41612

对参数有疑问？问 AI 助手

商业参数

零件号别名	06 09 09-06-148-6921 148 6921	标准包装数量	1
工厂包装数量	20

合规参数

RoHS

Compliant

材料阻燃等级

UL94 V-0

电气参数

额定电压	125 V ac	接触电阻	15mΩ
最大额定电流	6A

机械参数

间距	0.200" (5.08mm)	包装方式	Bulk
方向	直角	端接方式	Solder
安装类型	Through Hole, Right Angle	连接器类型	Header, Male Pins
接触镀层	Gold	排数	3
触头材料	Copper Alloy	壳体材料	Thermoplastic
端接排数	a/b/c	端接样式	Solder
触点数	48	位数	48 (Power)
绝缘材料 - 材质	Thermoplastic, Glass Filled	接触镀层厚度	Flash

产品信息

类型	F	样式	F
连接器性别	Male	系列	09 06
等级代码	C2	CAD图纸	3D CAD Model
产品子类型	Plugs	插座类型与数量	Z/b/d
加载位置数	All

环境参数

额定等级	C2	级别、等级	2
工作温度	+125°C
