点击放大查看

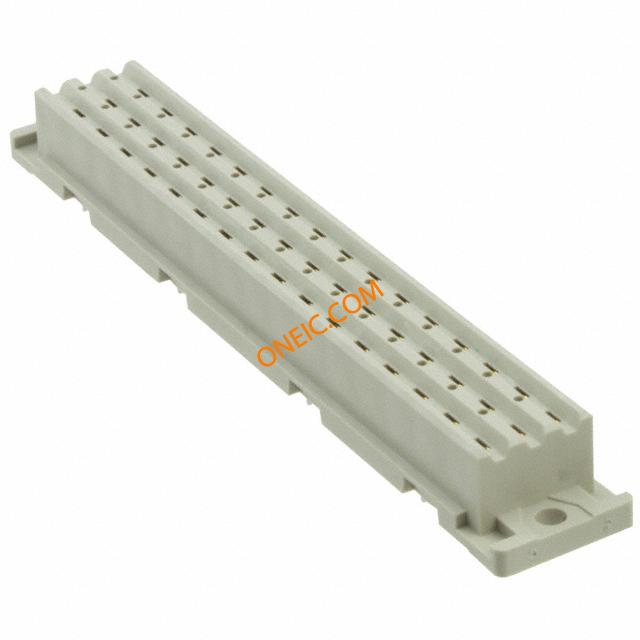

09062486833
| 制造商 | |
| 描述 | Conn Backplane F 48 POS 5.08mm Solder ST Thru-Hole DIN 41612 Connectors FLOW048FS-3,2C1-2 DIN POWER DIN-POWER FLOW048FS-3,2C1-2 Connector DIN-Power Flow solder 48-way f ConnectorDIN-PowerFlowsolder48-wayf Harting 09 06 系列 48 路 3.81 mm, 5.08 mm 节距, F型 C2等级, 3 行 z/b/d 直向 DIN 41612 插座, 焊接端接 |
| 分类 |
商业参数
| 零件号别名 | 06 09 09-06-248-6833 248 6833 | 标准包装数量 | 1 |
| 工厂包装数量 | 20 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 125 V ac | 接触电阻 | 15mΩ |
| 最大额定电流 | 6A | ||
机械参数
| 深度 | 14.8 | 间距 | 0.200" (5.08mm) |
| 高度 | 10.1 | 包装方式 | Bulk |
| 方向 | 直 | 端接方式 | Solder |
| 安装类型 | Straight | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold Over Nickel | 排数 | 3 |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 总长度 | 94.9 | 端接排数 | a/b/c |
| 端接样式 | Press In | 触点数 | 48 |
| 位数 | 48 (Power) | 绝缘材料 - 材质 | Thermoplastic, Glass Filled |
产品信息
| 类型 | Backplane | 样式 | F |
| 连接器性别 | F | 系列 | 09 06 |
| 等级代码 | C2 | 产品子类型 | Receptacles |
| 插座类型与数量 | Z/b/d | 加载位置数 | All |
环境参数
| 额定等级 | C2 | 级别、等级 | 2 |
| 工作温度 | +125°C | ||
