点击放大查看

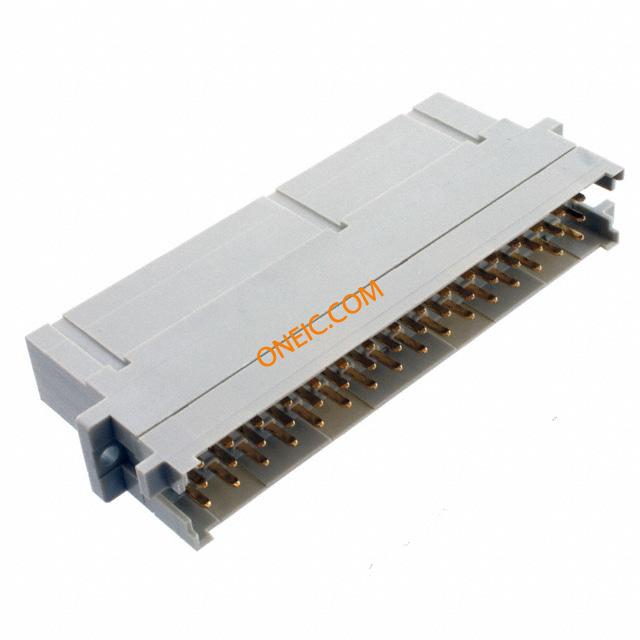

09060482906

制造商	HARTING Technology Group
描述	Conn DIN 41612 F 48 POS 5.08mm Crimp ST Cable Mount DIN 41612 Connectors 48P 6A FEMALE CBLMNT ORDER CONTACTS SEP. DIN-POWER F48MW-C1-1 Connector DIN-Power crimp 48-way ConnectorDIN-Powercrimp48-way Harting 09 06 系列 48 路 5.08mm 节距, F型 C1等级, 3 行 a/b/c 直向 DIN 连接器插头, 压接端接
分类	连接器解决方案背板连接器DIN 41612

对参数有疑问？问 AI 助手

商业参数

零件号别名	048 06 09 09-06-048-2906 2906	产品类别	DIN 41612 Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
材料阻燃等级	UL94 V-0

电气参数

额定电压	125 V ac	接触电阻	20mΩ
最大额定电流	6A

机械参数

深度	37.7	间距	0.200" (5.08mm)
高度	14.7	包装方式	Bulk
方向	直	端接方式	Crimp
重量（g）	38.00000	安装类型	Straight
连接器类型	Header, Male Pins	排数	3
触头材料	Copper Alloy	壳体材料	Glass Fibre Reinforced Thermoplastic
总长度	94.8	端接排数	a/b/c
端接样式	Crimp	触点数	48
位数	48 (Power)	绝缘材料 - 材质	Thermoplastic, Glass Filled

产品信息

类型	DIN 41612	样式	F
连接器性别	F	系列	09 06
等级代码	C1	CAD图纸	3D CAD Model
插座类型与数量	A/b/c	加载位置数	All

环境参数

额定等级	C1	级别、等级	1
工作温度	+125°C
