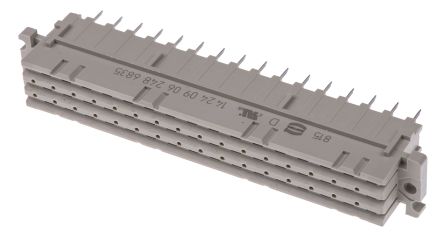

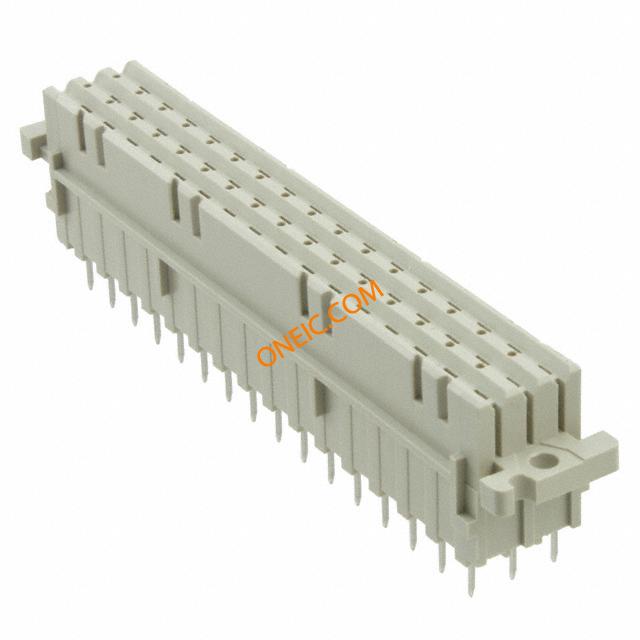

09062486835
| 制造商 | |
| 描述 | Conn DIN 41612 F 48 POS 5.08mm Solder ST Thru-Hole DIN 41612 Connectors 48P 6A FEMALE STRT DIN-POWER F048FS-4,5C1-2 Plug; DIN 41612,type F; female; PIN:48; d+b+z; THT; straight; 6A Harting 48 路 5.08mm 节距 C2等级, 3 行 z/b/d 直向 DIN 41612 插座, 焊接端接 |
| 分类 |
商业参数
| 零件号别名 | 06 09 09-06-248-6835 248 6835 | 产品类别 | DIN 41612 Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 20 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 最大额定电流 | 6A | ||
机械参数
| 深度 | 14.7 | 间距 | 0.200" (5.08mm) |
| 高度 | 20 | 重量 | 0.03 kg |
| 包装方式 | Bulk | 方向 | straight |
| 端接方式 | Solder | 引脚间距 | len. 4.5mm |
| 尾部长度 | 4.5 mm | 安装类型 | Straight |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold Over Nickel |
| 排数 | 3 | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 总长度 | 94.9 |
| 包装数量 | 20 | 端接排数 | 焊接 |
| 连接器 - 电缆 | plug | 端接样式 | Solder Pin |
| 触点数 | 48 | 位数 | 48 (Power) |
| 绝缘材料 - 材质 | Thermoplastic, Glass Filled | 触点材料 - 镀层 | gold plated |
| 外壳与棱镜材料 | thermoplastic | 第一连接器安装特征 | d+b+z |
产品信息
| SPG | 20 | 类型 | DIN 41612 |
| 样式 | F | 连接器性别 | F |
| 系列 | 9 | 已删除 | Compliant |
| 单元数量 | 1 | 插座类型与数量 | Z/b/d |
| 加载位置数 | All | ||
环境参数
| 额定等级 | C2 | 级别、等级 | 2 |
| 机械寿命 | 400cycles | 工作温度 | -55...125°C |
