09061486901

制造商	HARTING Technology Group
描述	DIN-POWER F048MS-3,0C1-2 DIN 41612 Connectors 48P 6A MALE R/A SLDR 48 way DIN41612 plug Connector;GdsA-DSeries;5mm;87.5mmLx14.8mmWx22.1mmH;48;IEC Socket; DIN 41612,type F; male; PIN:48; d+b+z; THT; angled 90° Harting 48 路 5.08mm 节距, F型 C2等级, 3 行 z/b/d, 直角 DIN 41612 插头, 焊接端接
分类	连接器解决方案背板连接器DIN 41612

对参数有疑问？问 AI 助手

商业参数

零件号别名	06 09 09-06-148-6901 148 6901	产品类别	DIN 41612 Connectors
标准包装数量	1	工厂包装数量	20

合规参数

RoHS

Compliant

材料阻燃等级

UL94 V-0

电气参数

最大额定电流

机械参数

间距	0.200" (5.08mm)	重量	0.03 kg
包装方式	Bulk	方向	angled 90°
端接方式	Solder	引脚间距	len. 3mm
尾部长度	3 mm	安装类型	Through Hole, Right Angle
连接器类型	Header, Male Pins	接触镀层	Gold over Palladium Nickel
排数	3	触头材料	Copper Alloy
壳体材料	Thermoplastic	包装数量	11
端接排数	焊接	连接器 - 电缆	socket
端接样式	Solder Pin	触点数	48
位数	48 (Power)	绝缘材料 - 材质	Thermoplastic, Glass Filled
触点材料 - 镀层	gold plated	外壳与棱镜材料	thermoplastic
第一连接器安装特征	d+b+z

产品信息

SPG	11	类型	F
样式	F	连接器性别	Male
系列	9	CAD图纸	3D CAD Model
单元数量	1	插座类型与数量	Z/b/d
加载位置数	All

环境参数

额定等级	C2	级别、等级	2
机械寿命	400cycles	工作温度	-55...125°C

文档与媒体

PDF 文档

TB_0906148x901_BL01_R33143.pdf

相关型号

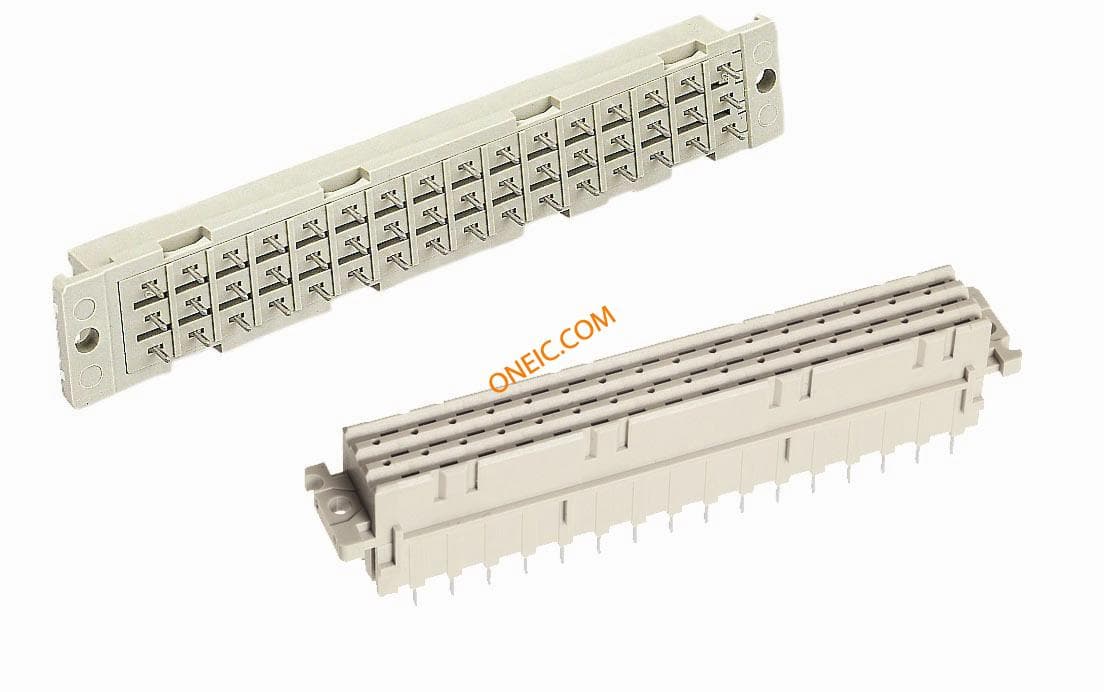

09062486833

Harting Technology Group

Conn Backplane F 48 POS 5.08mm Solder ST Thru-Hole DIN 41612 Connectors FLOW048FS-3,2C1-2 DIN POWER DIN-POWER FLOW048FS-3,2C1-2 Connector DIN-Power Flow solder 48-way f ConnectorDIN-PowerFlowsolder48-wayf Harting 09 06 系列 48 路 3.81 mm, 5.08 mm 节距, F型 C2等级, 3 行 z/b/d 直向 DIN 41612 插座, 焊接端接

¥30.6927

详情

09062486836

Harting Technology Group

Conn DIN 41612 F 48 POS 5.08mm Solder RA Thru-Hole DIN 41612 Connectors DIN-POWER F048FS-3,0C1-2 DIN-POWER F048FS-3,0C1-2 Connector DIN-Power solder 48-way f ConnectorDIN-Powersolder48-wayf Harting 09 06 系列 48 路 5.08mm 节距, F型 C2等级, 3 行 z/b/d, 直角 DIN 41612 插座, 焊接端接

¥106.8200

详情

09062486826

Harting Technology Group

Conn Backplane F 48 POS 5.08mm Solder RA SMD/Thru-Hole DIN 41612 Connectors 48P TYPE F FEMALE INVERSE 5.08MM DIN-POWER F048FS-3,0C1-2

¥100.4788

详情

09060009907

Harting Technology Group

Connector Accessories Male Connector Left Fixing Bracket DIN 41612 Connectors LEFT FIXING BRKT TYPE MH FOR MALE DIN-POWER FIXING BRACKET B LEFT FixingBracket;Fixing;Male;WithoutHousing;RoHSCompliant Harting 09 06 系列固定支架, 使用于 DIN 41612 连接器

¥6.8680

详情

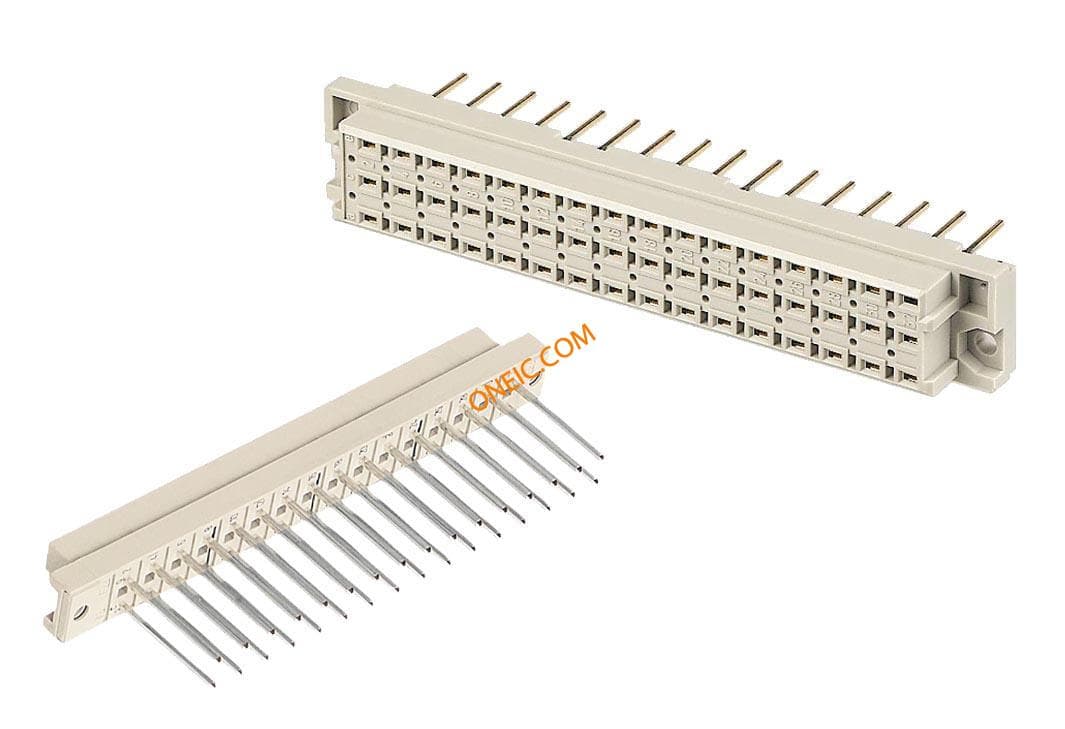

09062486848

Harting Technology Group

Conn DIN 41612 F 48 POS 5.08mm Solder ST Thru-Hole DIN 41612 Connectors DINPWRF048FS-3,7C1-2 DIN-POWER F048FS-3,7C1-2

¥28.4240

详情

09060009908

Harting Technology Group

Connector Accessories Male Connector Right Fixing Bracket DIN 41612 Connectors RIGHT FIXING BRKT TYPE MH FOR MALE DIN-POWER FIXING BRACKET B RIGHT FixingBracket;Fixing;Male;WithoutHousing;RoHSCompliant Harting 09 06 系列固定支架, 使用于 DIN 41612 连接器

¥11.7300

详情

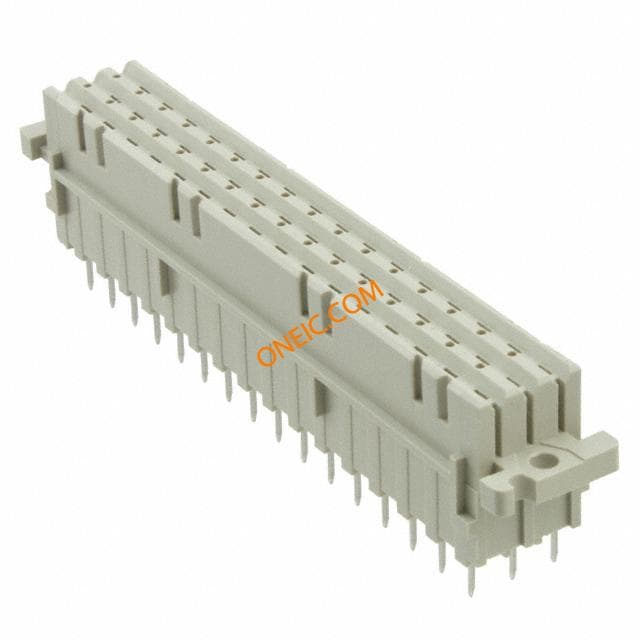

09062486835

Harting Technology Group

Conn DIN 41612 F 48 POS 5.08mm Solder ST Thru-Hole DIN 41612 Connectors 48P 6A FEMALE STRT DIN-POWER F048FS-4,5C1-2 Plug; DIN 41612,type F; female; PIN:48; d+b+z; THT; straight; 6A Harting 48 路 5.08mm 节距 C2等级, 3 行 z/b/d 直向 DIN 41612 插座, 焊接端接

¥45.8320

详情

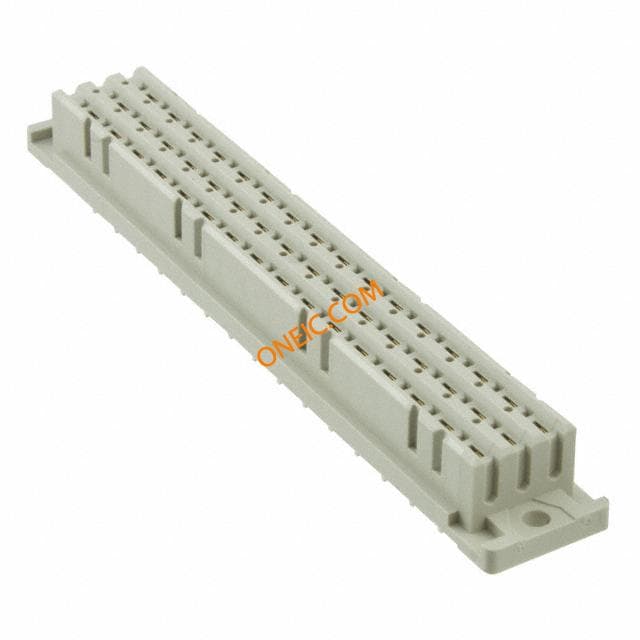

09062486834

Harting Technology Group

Conn DIN 41612 F 48 POS 5.08mm Solder ST Thru-Hole DIN 41612 Connectors 48P 6A FEMALE STRT DIN-POWER FLOW048FS-4,5C1-2 41612FBODY LOWPROF SK Harting 48 路 5.08mm 节距, 3 行直向 DIN 41612 插座, 焊接端接

¥40.1492

详情

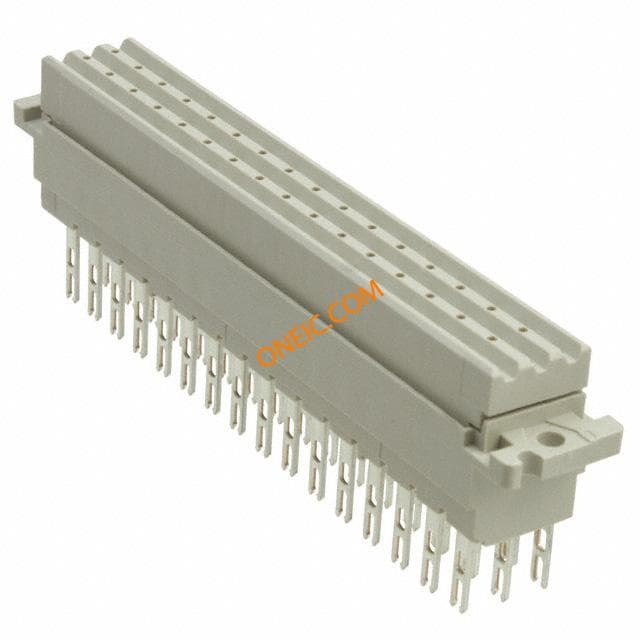

09062486823

Harting Technology Group

Conn DIN 41612 F 48 POS 5.08mm Solder ST Panel Mount DIN 41612 Connectors 48P TYPE F FEMALE SOLDER LUG DIN-POWER F048FL-9,0C1-2 48 way DIN41612 solder lug socket Plug; DIN 41612,type F; female; PIN:48; d+b+z; for cable; straight Harting 48 路 5.08mm 节距, F型 C2等级, 3 行 z/b/d 直向 DIN 41612 插座, 焊接端接

¥34.1040

详情

09060009909

Harting

DIN-POWER FIXING BRACKET BL 15MM DIN 41612 Connectors FIXING BRKT LEFT TYPE MH STANDARD Harting 09 06 系列固定支架, 使用于 DIN 41612 连接器

¥8.2960

详情

09060009910

Harting

DIN-POWER FIXING BRACKET BR 15MM DIN 41612 Connectors FIXING BRKT RIGHT TYPE MH STANDARD Fixing element; right sale Harting 09 06 系列固定支架, 使用于 DIN 41612 连接器

¥22.0320

详情

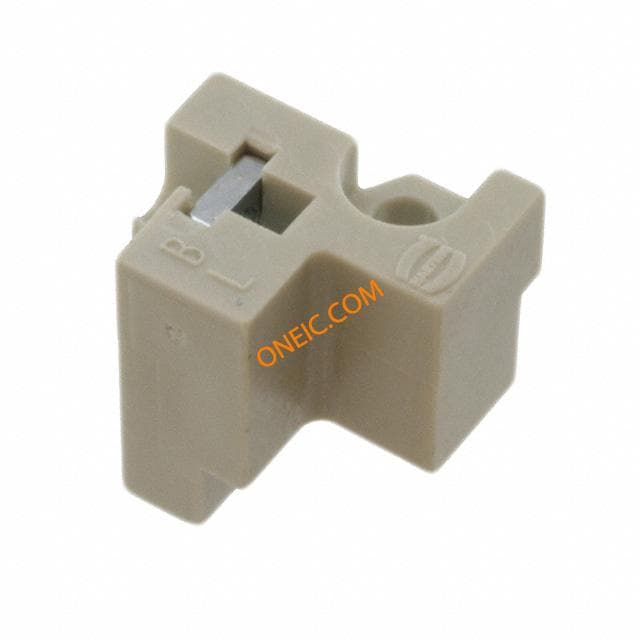

09060009966

Harting

DIN-POWER FIXING BRACKET B LEFT DIN 41612 Connectors DIN PWR FIXING BRKT B LT Harting 09 06 系列固定支架, 使用于 DIN 41612 连接器

¥16.0760

详情

09060009967

Harting

DIN-POWER FIXING BRACKET B RIGHT DIN 41612 Connectors DIN PWR FIXING BRKT B RT Harting 09 06 系列固定支架, 使用于 DIN 41612 连接器

¥24.7297

详情

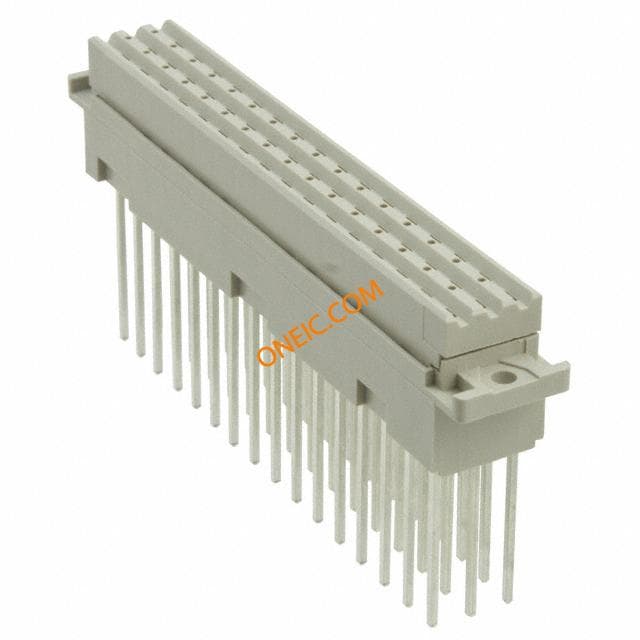

09062486821
