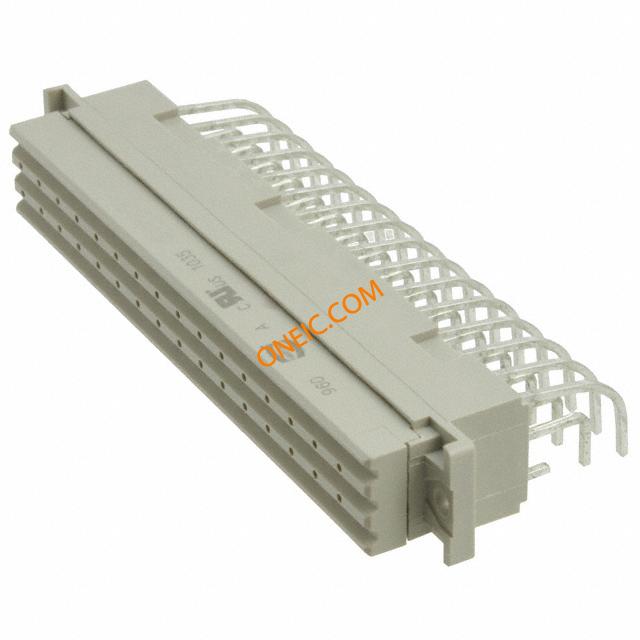

点击放大查看
09062486826
| 制造商 | |
| 描述 | Conn Backplane F 48 POS 5.08mm Solder RA SMD/Thru-Hole DIN 41612 Connectors 48P TYPE F FEMALE INVERSE 5.08MM DIN-POWER F048FS-3,0C1-2 |
| 分类 |
商业参数
| 零件号别名 | 06 09 09-06-248-6826 248 6826 | 产品类别 | DIN 41612 Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 20 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 最大额定电流 | 6 A | ||
机械参数
| 深度 | 42.68 | 间距 | 0.200" (5.08mm) |
| 高度 | 14.75 | 包装方式 | Bulk |
| 端接方式 | Solder | 安装类型 | Right Angle |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold Over Nickel |
| 排数 | 3 | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 总长度 | 94.8 |
| 端接样式 | Solder Pin | 触点数 | 48 |
| 位数 | 48 (Power) | 绝缘材料 - 材质 | Thermoplastic, Glass Filled |
产品信息
| 类型 | Backplane | 样式 | F |
| 连接器性别 | F | 产品子类型 | Receptacles |
| 加载位置数 | All | ||
环境参数
| 级别、等级 | 2 | ||
