点击放大查看

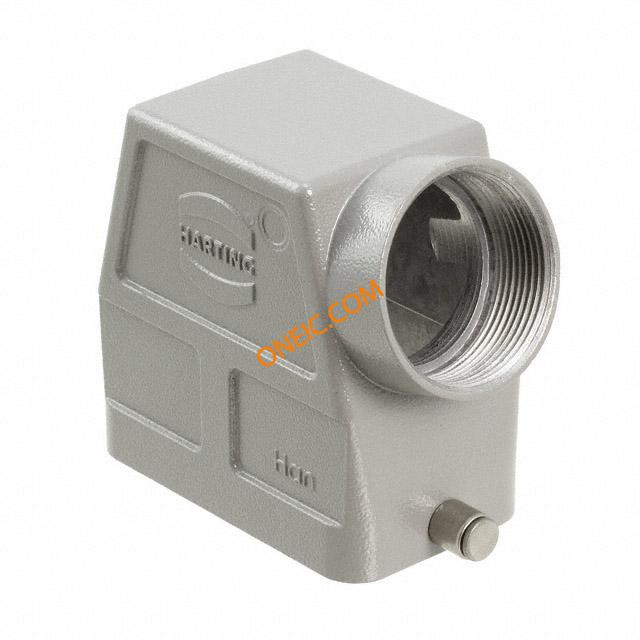

09300100543

制造商	HARTING Technology Group
描述	Connector Accessories 9 POS Hood Metal Heavy Duty Power Connectors HAN 10B PG29 SIDE METAL HOOD CONN HAN 10B HOOD SIDE PG29 HAN10BHood(SideEntry,SingleLeverPeg)PGThread Enclosure: for Han connectors; Han; size 10B; for cable; high Han B Hoods: Han B Hood Side Entry HC 2 Reels PG 29 Harting Han B 系列侧入电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	1195-3462	零件号别名	010 0543 09 09-30-010-0543 30
产品类别	Heavy Duty Power Connectors	标准包装数量	1
工厂包装数量	10

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

连接器类型 - 电压输入

high

机械参数

尺寸	10B	高度	45
重量	0.17 kg	包装方式	Bulk
方向	angled	螺纹尺寸	PG29
外壳颜色	Gray	安装类型	on cable
衬套螺纹	PG29	连接器类型	Hood
外壳涂层	Powder Coated	安装样式	Side
封装形式	size 10B	锁定特性	for latch
壳体材料	Aluminum, Die Cast	包装数量	2
尺寸/外形	2.858" L x 1.693" W x 2.835" H (72.60mm x 43.00mm x 72.00mm)	供应商器件封装	for Han connectors
外壳与棱镜材料	aluminium alloy

产品信息

SPG	2	类型	Hood
样式	Side Entry	系列	Han C
产品子类型	Hoods	锁定位置	Side Clip on Base Bottom
适配器系列	Han	单元数量	1
基础产品编号	930

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
