点击放大查看

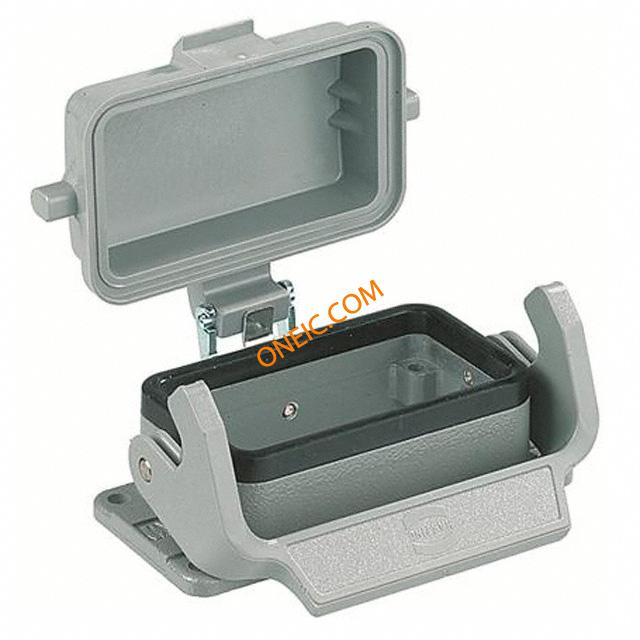

09300100303

制造商	HARTING Technology Group
描述	Connector Accessories 9 POS Housing Metal Heavy Duty Power Connectors HAN 10B BULKHEAD MNT 1 LEVER METAL W/CVR HAN B BASE PANEL 1 LEVER THERMO Low panel housing,cover for 1 lever BULKHEAD HOUSING, SIZE 10B, METAL HOUSING,HAN10E,PANELMOUNT,SINGLELEVER Han B Housings: Han B Base Panel 1 Lever Thermoplastic C Harting Han B 系列电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	010 0303 09 09-30-010-0303 30	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
海关税号	85369010

机械参数

尺寸	10B	重量	0.127
包装方式	Bulk	重量（g）	128.00000
外壳颜色	Gray	连接器类型	Base - Panel Mount with Cover
外壳涂层	Powder Coated	安装样式	Vertical
锁定特性	:1 Lever	本体材料	:Metal
壳体材料	Aluminum, Die Cast	总长度	93
尺寸/外形	3.661" L x 1.709" W x 1.138" H (93.00mm x 43.40mm x 28.90mm)	外壳尺寸-插件	:10B
第一连接器安装类型	:Bulkhead

产品信息

类型	Housing	样式	Bottom Entry
系列	Han C	CAD图纸	3D CAD Model
产品子类型	Housings	锁定位置	Side Clip on Base Bottom
附件类型	:Bulkhead Housing	适用产品/相关产品	:Han 10B, Single Lever

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
