芯天下
09200163101

点击放大查看

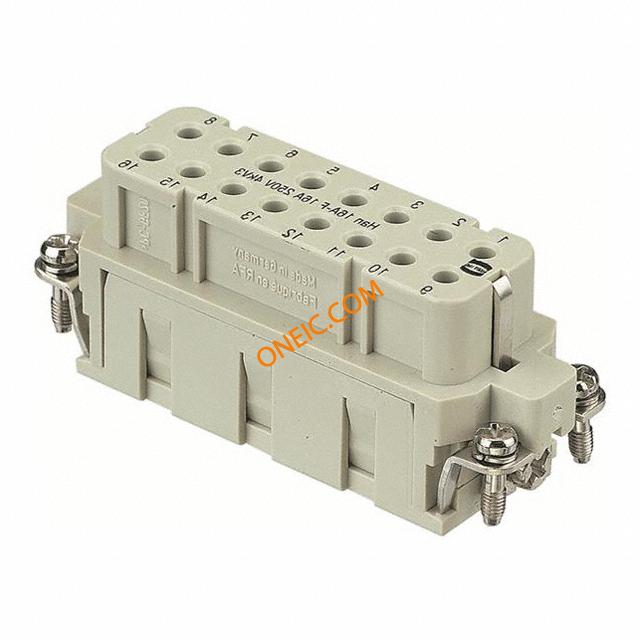

09200163101

制造商
HARTING Technology Group
描述
Connector Accessories Female Insert Heavy Duty Power Connectors FEMALE INSERT HAN 16A CRIMP TERM HAN A 16 POS. F INSERT CRIMP HANA16POS.FINSERTCRIMP Connector: HAN; female; PIN:16; 16+PE; size 16A; 250V Han A Female Insert-Crimp: Han A 16 Position F Insert Crimp Harting Han-A 系列 2 行 16 路 母座 插片 , 额定电流 16A/ 250 V
分类
连接器解决方案重载连接器重载连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名016 09 09-20-016-3101 20 3101产品类别Heavy Duty Power Connectors
标准包装数量1工厂包装数量10

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
材料阻燃等级UL94 V-0

电气参数

额定电压600V最大额定电流16A
连接器类型 - 电压输入for HAN Eterminals

机械参数

尺寸16A颜色Gray
深度30.1高度22.8
重量0.04 kg包装方式Bulk
触头类型Han®连接器类型Insert without Contacts
安装样式Straight排数2
封装形式size 16A插入力Female
壳体材料Polycarbonate (PC)总长度72.4
包装数量5尺寸/外形16A
端接样式Crimp触点数17
位数16+Ground第一连接器安装特征16+PE

产品信息

SPG5类型Insert
连接器性别Female系列Han A
产品子类型Inserts附件类型插片压接
单元数量1

环境参数

工作温度-40°C ~ 125°C
