制造商
HARTING Technology Group
描述

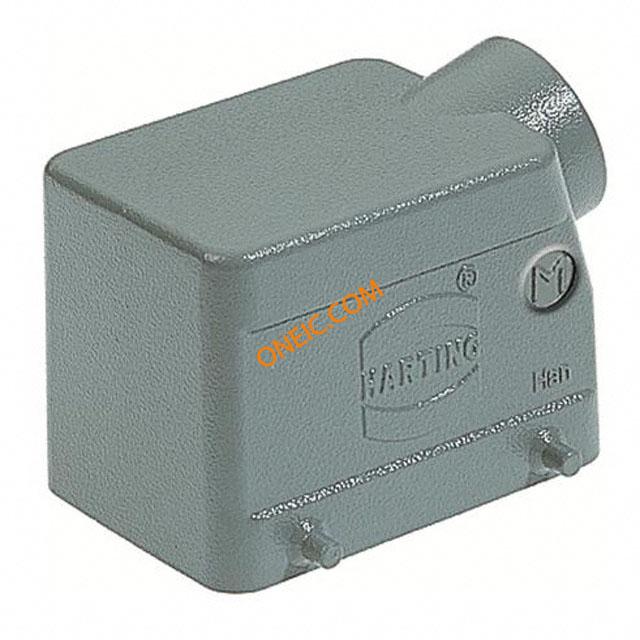

HAN 3A-GS-M25 HOOD Heavy Duty Power Connectors HAN A SIDE ENTRY HAN A HOOD SIDE LC 4 PEGS M25 HANAHOODSIDEENTRYLC4PEGSM25 Enclosure: for Han connectors; Han; size 32A (2 x 16A); angled Han A Hoods: Han A Hood Side Entry LC 4 Pegs M25 Harting Han A 系列 侧入 电源连接器
分类
连接器解决方案重载连接器重载连接器
对参数有疑问？问 AI 助手

商业参数

其他名称1195-3084零件号别名019 019-20-032-1521 032 1521 20
产品类别Heavy Duty Power Connectors标准包装数量1
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant

机械参数

尺寸32A重量0.2 kg
包装方式Bulk方向angled
螺纹尺寸M25外壳颜色Gray
衬套螺纹M25连接器类型Hood
外壳涂层Powder Coated安装样式Side
封装形式size 32A (2 x 16A)插入力Female
锁定特性for double latch壳体材料Aluminum, Die Cast
包装数量2尺寸/外形3.228" L x 2.204" W x 2.362" H (82.00mm x 56.00mm x 60.00mm)
端接样式Cable触点数1
供应商器件封装for Han connectors外壳与棱镜材料aluminium alloy

产品信息

SPG2类型CONNECTORS
样式Side Entry系列Han A
产品子类型Hoods锁定位置Locking Clip on Base Bottom
适配器系列Han单元数量1
基础产品编号1920000

环境参数

防护等级IP65 - Dust Tight, Water Resistant工作温度-40°C ~ 125°C

相关型号

09200162612

09200162612

Harting Technology Group

Conn Housing M 17 POS Crimp ST Heavy Duty Power Connectors HAN A 16P M SCREW SCREW TERMINATION HAN A 16POS. M INSERT SCREW Han A 16 2 Male Straight, Panel Mount 16A,600V Insert;250V;16A;Male;16;RoHSCompliant;HanASeries;16AProductSize Connector: HAN; male; Han A; PIN:16; 16+PE; size 16A; 16A; 250V; 1mΩ Han A Male Insert-Screw: Han A 16 Position M Insert Screw Harting Han A 系列 2行 16针 16P+E极 插头 电源连接器插件 , 面板安装

¥73.5000
详情
09200162812

09200162812

Harting Technology Group

Conn Housing F 17 POS Crimp ST Heavy Duty Power Connectors HAN A 16P F SCREW SCREW TERMINATION HAN A 16 POS. F INSERT SCREW Han A 16 2 Female Straight, Panel Mount 16A,600V PowerConnectorInsert;Female;16 Connector: HAN; female; Han A; PIN:16; 16+PE; size 16A; 16A; 250V Han A Female Insert-Screw: Han A 16 Position F Insert Screw Harting Han A 系列 2行 16针 16P+E极 插座 电源连接器插件 , 面板安装

¥142.0520
详情
09200163111

09200163111

Harting Technology Group

Conn Housing F 16 POS Crimp ST Panel Mount Heavy Duty Power Connectors FEMALE INSERT HAN 32A CRIMP TERM HAN A 16 POS. F INSERT CRIMP INSERT FEMALE 16POS+1GND CRIMP HanA,16Position,Female,Insert,Crimp Harting Han-A 系列 2 行 16 路 母座 插片 , 额定电流 16A/ 250 V

¥101.2900
详情
09200163101

09200163101

Harting Technology Group

Connector Accessories Female Insert Heavy Duty Power Connectors FEMALE INSERT HAN 16A CRIMP TERM HAN A 16 POS. F INSERT CRIMP HANA16POS.FINSERTCRIMP Connector: HAN; female; PIN:16; 16+PE; size 16A; 250V Han A Female Insert-Crimp: Han A 16 Position F Insert Crimp Harting Han-A 系列 2 行 16 路 母座 插片 , 额定电流 16A/ 250 V

¥172.2400
详情
09210253001

09210253001

Harting Technology Group

Connector Accessories Male Insert 25 POS Heavy Duty Power Connectors HAN D 25P M CRIMP ORDER CONTACTS SEP HAN D 25 POS. M INSERT CRIMP Han D 25 Male 2A,600V Insert;250V;10A;Male;25;RoHSCompliant;HanD,HanDAVSeries Connector: HAN; male; Han D; PIN:25; 25+PE; size 16A; w/o terminals Han D Male Insert: Han D 25 Position M Insert Crimp Harting Han D 系列 25P+E 3 行 25 路 公插 触点插件 , M3 x 10螺纹, 额定电流 10A/ 250 V, 适用于大负荷电源连接器

¥81.5400
详情
19000005092

19000005092

Harting Technology Group

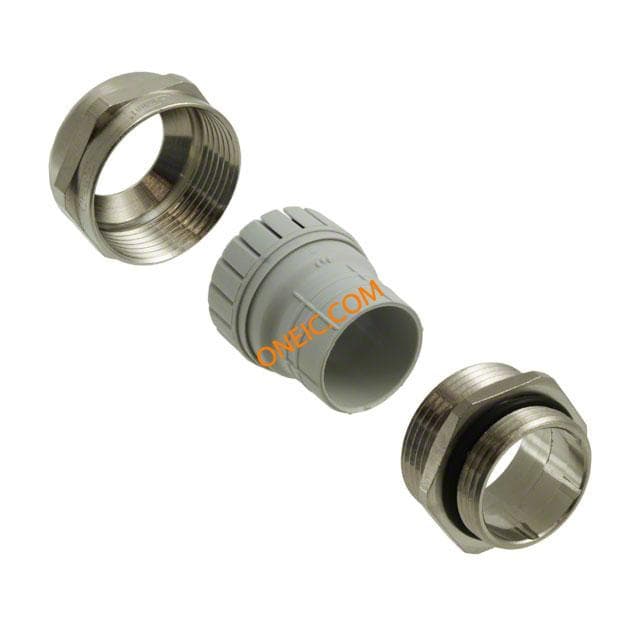

Cable Accessories Cable Gland Metal Heavy Duty Power Connectors CABL CLAMP M25 BRASS 13-18mm CAB DIA IP68 CBL CLAMP M25 13-18MM BRASS IP68 Gland; Cable; Metal; M25 x 1.5; 26 mm; 30 mm CBLCLAMPM2513-18MMBRASSIP68 Cable Glands metal: Cable clamp M25, 13-18mm, brass, IP 68 Harting IP68 金属 金属 电缆固定头 , 13mm 至 18mm电缆直径, -40°C至+125°C, M25螺纹

¥39.1295
详情
09200163001

09200163001

Harting Technology Group

Conn Housing M 17 POS Crimp ST Heavy Duty Power Connectors MALE INSERT HAN 16A CRIMP TERM HAN A 16 POS. M INSERT CRIMP HanA16Pos.MInsertCrimp Connector: HAN; male; PIN:16; 16+PE; size 16A; 250V Han A Male Insert-Crimp: Han A 16 Position M Insert Crimp Harting Han-A 系列 2 行 16 路 公插 插片 , 额定电流 16A/ 250 V

¥214.3505
详情
19000005190

19000005190

Harting Technology Group

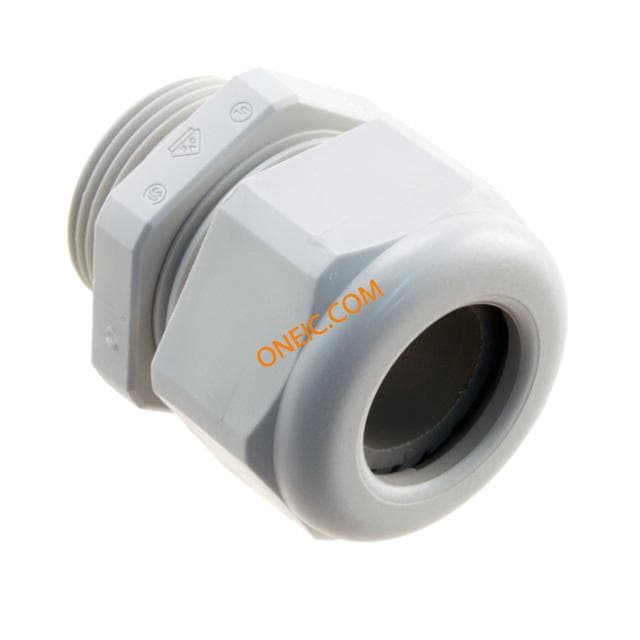

CABLE GLAND PLASTIC Heavy Duty Power Connectors Cable Clamp M25 IP68 9-16mm Plastic CBL CLAMP M25 9-16MM PLAST IP68 CABLECLAMPM25,9-16MM,PLASTIC,IP68 Gland; M25; IP68; Dcable:9÷16mm; Mat: thermoplastic; Spanner:33mm Harting IP68 灰色 热塑塑料 电缆固定头 , 9mm 至 16mm电缆直径, -40°C至+125°C, M25螺纹

¥31.0352
详情
19000005090

19000005090

Harting

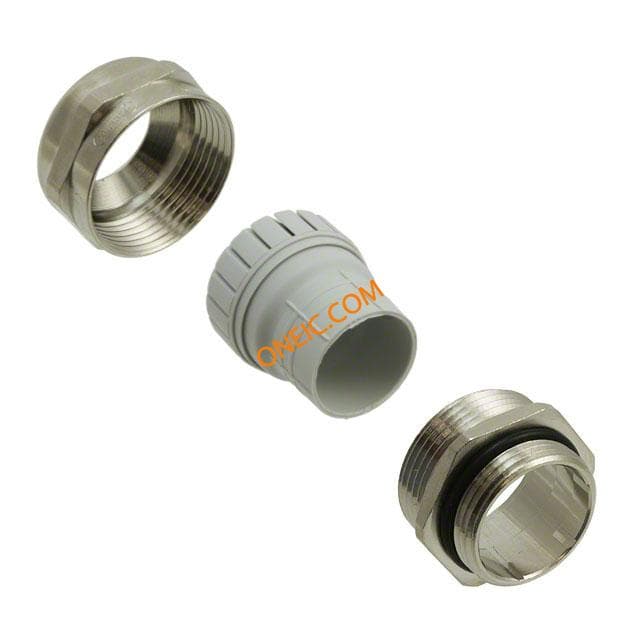

CBL CLAMP M25 9-16 BRASS IP68 Heavy Duty Power Connectors CABL CLAMP M25 BRASS 9-16mm CABL DIA IP68 Gland; Cable; Metal; M25 x 1.5; 26 mm; 30 mm CABLE CLAMP, M25, 9-16MM Gland,Cable;Metal;M25x1.5;26mm;30mm Gland; M25; IP68; 9÷16mm; Mat: metal Cable Glands metal: Cable clamp M25, 9-16, brass, IP 68

¥75.5235
详情
09210253101

09210253101

Harting

HAN D 25 POS. F INSERT CRIMP Heavy Duty Power Connectors HAN D 25P F CRIMP ORDER CONTACTS SEP Han(R) D 25P+E socket insert, 250Vac PowerConnectorInsert;Female;25 Connector: HAN; female; Han D; PIN:25; 25+PE; size 16A; 250V Han D Female Insert: Han D 25 Position F Insert Crimp Harting Han D 系列 3行 26针 插座 电源连接器

¥47.0400
详情
09210253011

09210253011

Harting

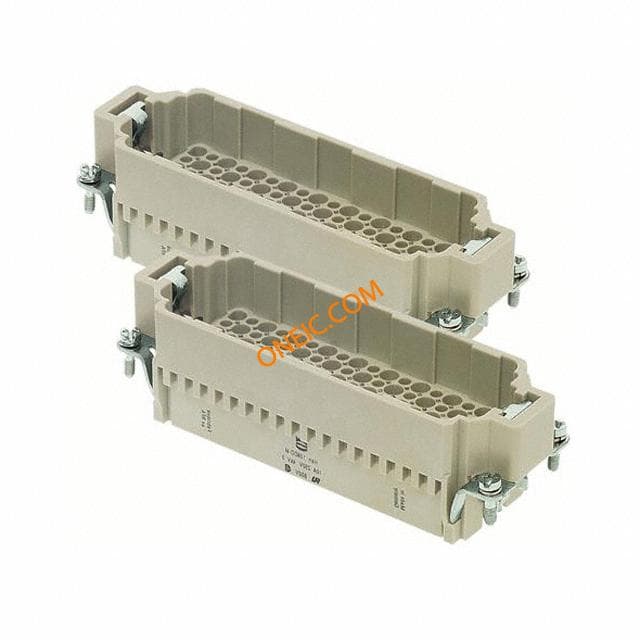

HAN D 25 POS. M INSERT CRIMP Heavy Duty Power Connectors 25P M. INSERT CRIMP HAN D Han D Male Insert: Han D 25 Position M Insert Crimp
