点击放大查看

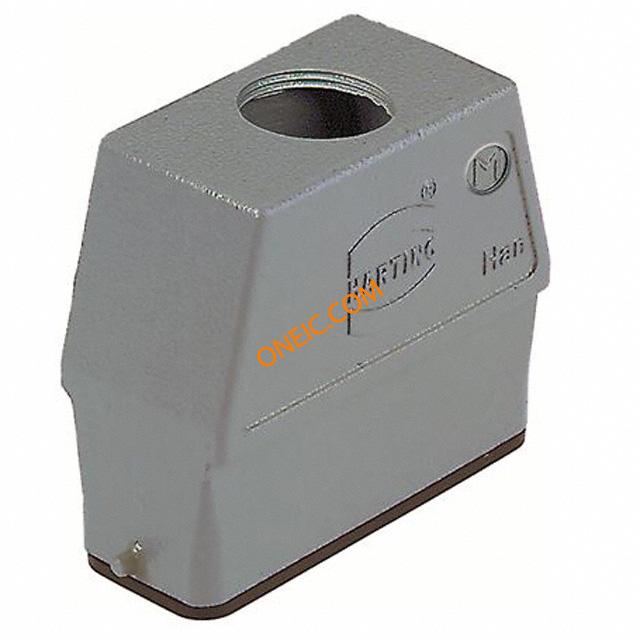

19200160446

制造商	HARTING Technology Group
描述	Connector Accessories 20 POS Hood Metal Heavy Duty Power Connectors HAN 16A M25 TOP ENT METAL HOOD HAN A HOOD TOP HC 2 PEGS M25 Industrial hood,top entry,M25,16A HANAHOODTOPENTRYHC2PEGSM25 Enclosure: for Han connectors; Han; size 16A; for cable; high Han A Hoods: Han A Hood Top Entry HC 2 Pegs M25 Harting Han A 系列顶入电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	1195-3079	零件号别名	016 019 019-20-016-0446 0446 20
产品类别	Heavy Duty Power Connectors	标准包装数量	1
工厂包装数量	1

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

频率	Side Clip on Base Bottom	最大额定电流	16 A
连接器类型 - 电压输入	high

机械参数

尺寸	16A	深度	36
高度	70.5	重量	0.17 kg
包装方式	Bulk	方向	straight
螺纹尺寸	M25	外壳表面处理	Powder Coated
外壳颜色	Gray	衬套螺纹	M25
连接器类型	Hood	外壳涂层	Powder Coated
安装样式	Straight	封装形式	size 16A
插入力	Female	锁定特性	for latch
壳体材料	Aluminum, Die Cast	尺寸/外形	3.118" L x 1.417" W x 2.764" H (79.20mm x 36.00mm x 70.20mm)
端接样式	Cable	触点数	20
外部壳体颜色	Gray	供应商器件封装	for Han connectors
外壳与棱镜材料	aluminium alloy

产品信息

类型	Hood	样式	Top Entry
系列	Han Snap	CAD图纸	3D CAD Model
产品子类型	Hoods	锁定位置	Side Clip on Base Bottom
附件类型	Hood	适配器系列	Han
单元数量	1

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
