点击放大查看

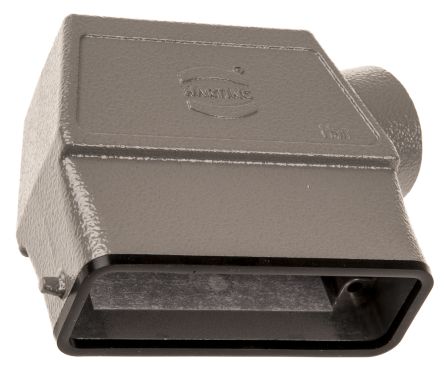

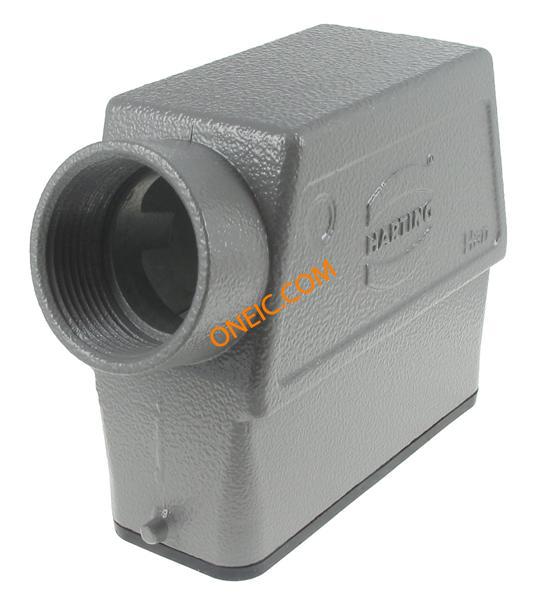

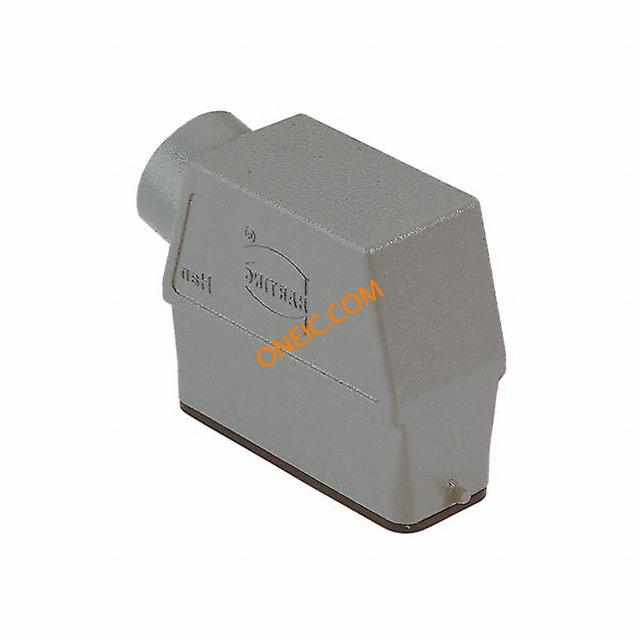

09200160541

制造商	HARTING Technology Group
描述	HAN A HOOD SIDE HC 2 PEGS PG 21 Heavy Duty Power Connectors HAN 16A PG21 SIDE METAL HOOD High type side entry hood,PG21 size 16A HAN16AHood(SideEntry,SingleLeverPeg)PGThread Han A Hoods: Han A Hood Side Entry HC 2 Pegs PG 21 Harting Han A 系列侧入电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	016 0541 09 09-20-016-0541 20	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

Compliant

电气参数

最大额定电流

16 A

机械参数

尺寸	16A	包装方式	Bulk
方向	侧入	螺纹尺寸	PG21
外壳颜色	Gray	连接器类型	Hood
外壳涂层	Powder Coated	插入力	Female
壳体材料	Aluminum, Die Cast	尺寸/外形	3.118" L x 1.417" W x 2.764" H (79.20mm x 36.00mm x 70.20mm)
端接样式	Cable	触点数	20

产品信息

类型	CONNECTORS	样式	Side Entry
系列	Staf	产品子类型	Hoods
锁定位置	Side Clip on Base Bottom	附件类型	Hood

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
