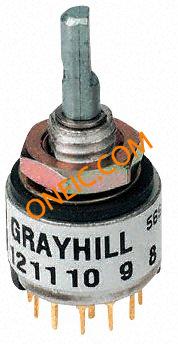

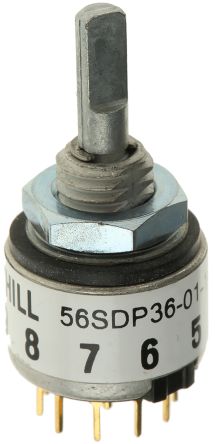

56SDP36-01-1-AJN
| 制造商 | Grayhill, Inc. |
| 描述 | Rotary Switch, 200 mA, 30, 115V dc, V ac SWITCH, 1POLE, 10 POS ROTSWT56,36,2-10POS1P Grayhill 10位置 旋转开关 , SP 触点配置, 30 V dc, 115 V ac额定电压, 200 mA @ 30 V 直流 |
| 分类 |
商业参数
| 交货时间 | 70 Days | 子类别 | Switch Rotary |
合规参数
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85365007 | ||
电气参数
| 核心电压 | :115V | 额定电压 | 115 V ac, 30 V dc |
| 极数 | :1 | 接触电阻 | :100mohm |
| 最大触点电流 | :200mA | 绝缘电阻 | :10000Mohm |
| 开关功能/额定值 | :Off-On | 触点额定电流 | 200 mA |
| 供电电压 (Vcc/Vdd) | :30V | ||
机械参数
| 深度 | 12.7mm | 宽度 | 12.7mm |
| 高度 | 28.07mm | 重量 | 0.018 |
| 端接方式 | :Through Hole | 螺纹尺寸 | :1/4 28 UNF - 2A |
| 安装类型 | Panel Mount | 端子类型 | Solder |
| 行程角度 | :36° | 旋转角度 | :36° |
| 轴直径 | :3.18mm | 触头材料 | Silver Over Nickel Plated Brass |
| 面板后深度 | :12.37mm | 外径 | :12.7mm |
| 触点数 | 1 | 位数 | :10 |
| 典型触点布局 | SP | 轴和轴承长度 | :9.53mm |
| 外壳与棱镜材料 | Die Cast Zinc | ||
产品信息
| 系列 | :56 | ||
环境参数
| NEMA 机架尺寸 | :IP67 | ||
文档与媒体
相关型号
