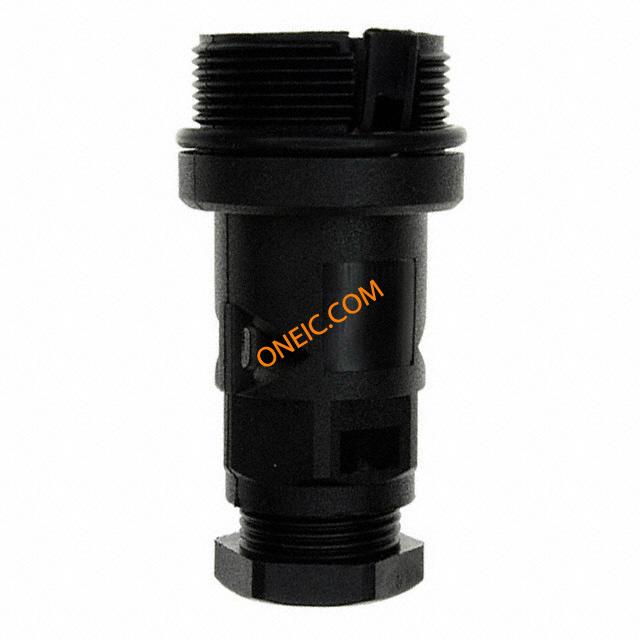

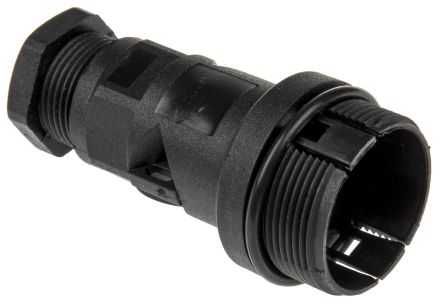

点击放大查看
商业参数
| 其他名称 | 708-1239 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Compliant | 认证机构 | ULRecognized |
| 材料阻燃等级 | UL94-V0 | ||
电气参数
| 额定电压 | 380 V | 最大额定电流 | 5 A |
| 连接器类型 - 电压输入 | Male | ||
机械参数

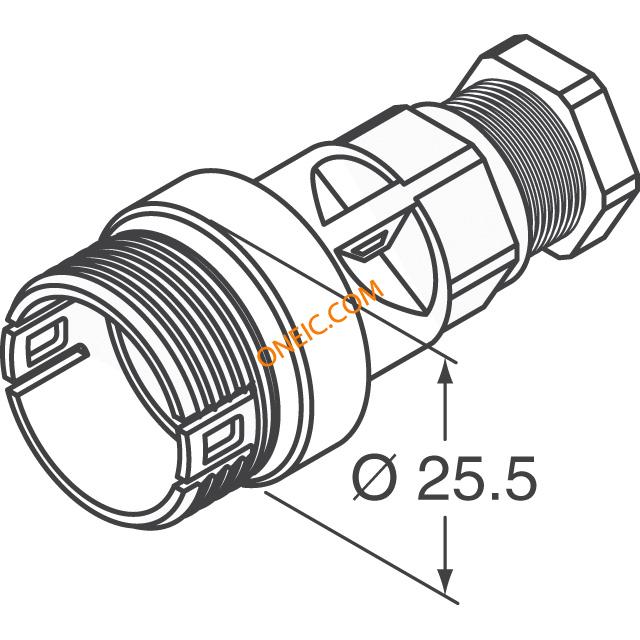

| 长度 | 61.5mm | 包装方式 | Bulk |
| 导线线规 | 20-24 | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Crimp/Solder |
| 触头类型 | Crimp and Solder Cup | 安装类型 | Free Hanging (In-Line) |
| 行程角度 | Straight | 电缆直径 | 3.5 mm to 9 mm |
| 连接器类型 | Insert Shell | 接触镀层 | Gold |
| 紧固类型 | Threaded | 壳体材料 | Polyamide (PA) |
| 主要材料 | CircularPlasticConnector | 配接方向 | Threaded |
| 位数 | Multiple | 外壳材料及表面处理 | Polyamide |
产品信息
| 备注 | Contacts Not Provided | 类型 | PlugShellOnly |
| 系列 | Buccaneer Mini | 产品子类型 | Plugs |
环境参数
| 防护等级 | IP68 - Dust Tight, Waterproof | ||
文档与媒体
相关型号
12023
Bulgin
Cable Mounting & Accessories CABLE GLAND 6-8MM COLOR BLACK SEALING GLAND BLACK
12023/1
Bulgin
Cable Mounting & Accessories CABLE GLAND 5-7MM COLOR WHITE SEALING GLAND WHITE BUSHES 5-7MM Cable Accessories Gland White SEALINGGLAND Bulgin 电缆固定头
12734/3/1
Bulgin
Standard Circular Connector CONTACT INSERT 3 PIN CONN HSNG INSERT 3POS PIN Male Circular Connector Insert 3 Way For Use With Mini Buccaneer Connector Conn Mini Buccaneer PIN 3 POS Solder ST Cable Mount 3 Terminal 1 Port CARRIER, PIN, 3WAY Bulgin 3路 公 连接器插芯, 使用于Mini Buccaneer 连接器, -20 → +70 °C

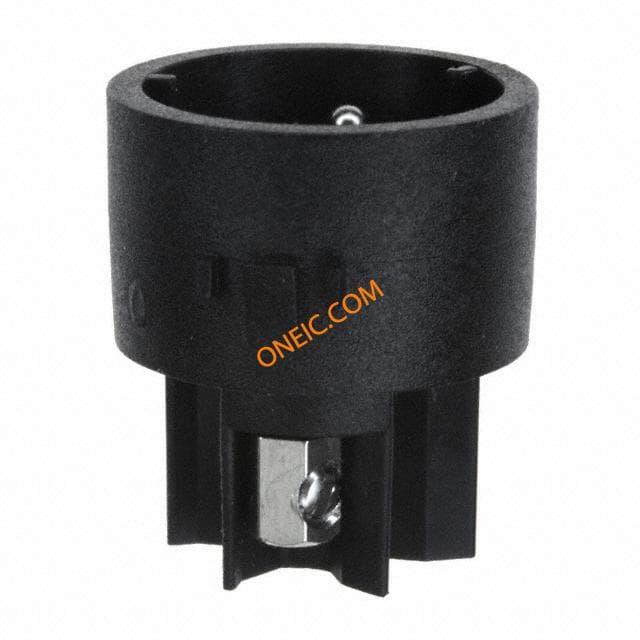

SA3320
Bulgin
Standard Circular Connector 2 POLE PLUG INSERT CONN TERM INSERT 2POS PIN SCREW Male Circular Connector Insert 2 Way For Use With Mini Buccaneer Connector Conn Mini Buccaneer PIN 2 POS Screw ST Cable Mount 2 Terminal 1 Port INSERT, PLUG, 2WAY MiniBuccaneer,ScrewTerminalInserts,IP68,Pin,2Poles,NickelPltdContcts Bulgin 2路 公 连接器插芯, 使用于Mini Buccaneer 连接器, -20 → +70 °C
PX0812
Bulgin
Standard Circular Connector GLAND PACK MINI BUCCANEER GLAND PACK Alternative Gland pack; 3/pk; suits cables 3.5-5mm; 6-8mm; 7-9mm dia. Cable Accessories Cable Gland AlternativeGlandpack,3/pk,suitscables3.5-5mm,6-8mm,7-9mmdia. Bulgin 连接器

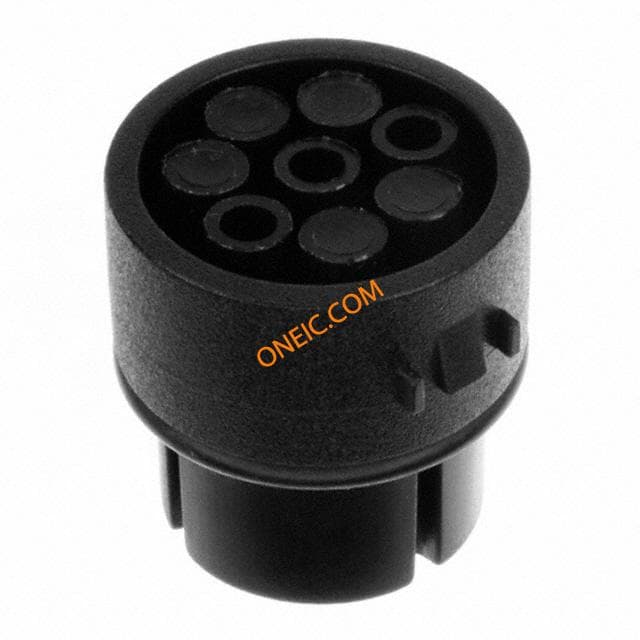

12735/3/1
Bulgin
Standard Circular Connector CONTACT INSERT 3 SOC CONN HSNG INSERT 3POS SKT Female Circular Connector Insert 3 Way For Use With Mini Buccaneer Connector Conn Mini Buccaneer SKT 3 POS Solder ST Cable Mount 3 Terminal 1 Port SOCKET, CARRIER, 3WAY Bulgin 3路 母 连接器插芯, 使用于Mini Buccaneer 连接器, -20 → +70 °C

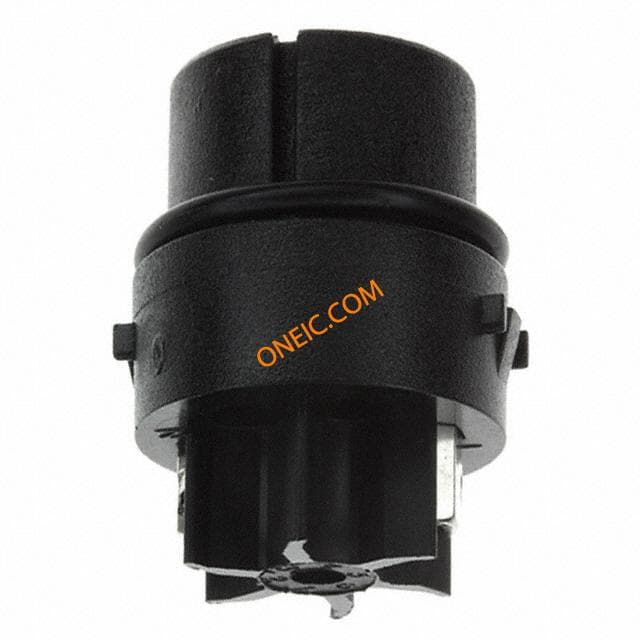

SA3319
Bulgin
Standard Circular Connector 2 POLE SKT INSERT CONN TERM INSERT 2POS SCKT SCREW Female Circular Connector Insert 2 Way For Use With Mini Buccaneer Connector Conn Mini Buccaneer SKT 2 POS Screw ST Cable Mount 2 Terminal 1 Port INSERT, SOCKET, 2WAY MiniBuccaner,ScrewTerminalInserts,IP68,Socket,2Poles,NickpltdContacts Bulgin 2路 母 连接器插芯, 使用于Mini Buccaneer 连接器, -20 → +70 °C
PX0810
Bulgin
Standard Circular Connector SEALING CAP CAP SEAL - PX0801/0802/0803/0804 Chassis mount sealing cap for IP68 conn Connector Accessories Sealing Cap SEALING CAP, INLINE/CHASSIS CircularConnectorSealingCap;FitsPX0801,PX0803,PX0804andPX0805;24mm

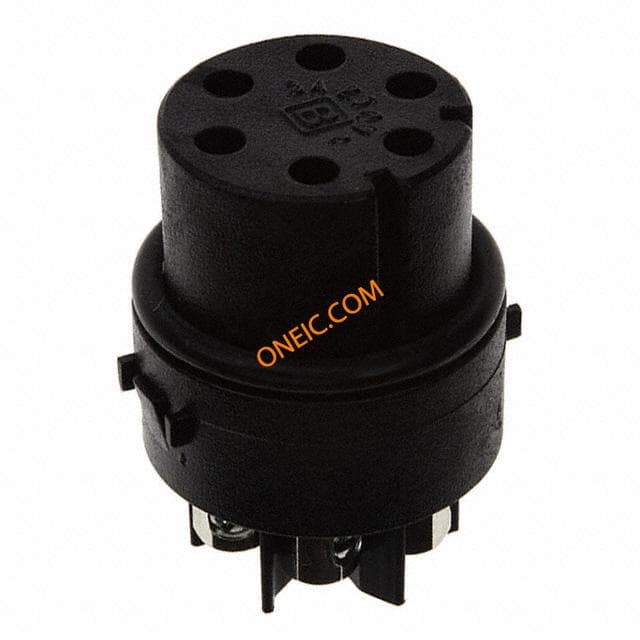

SA3244
Bulgin
Standard Circular Connector 6 POLE SKT INSERT CONN TERM INSERT 6POS SCKT SCREW Female Circular Connector Insert 6 Way For Use With Mini Buccaneer Connector Conn Mini Buccaneer SKT 6 POS Screw ST Cable Mount 6 Terminal 1 Port INSERT, SOCKET, 6WAY INSERT,SOCKET,6CONTACTS Bulgin 6路 母 连接器插芯, 使用于Mini Buccaneer 连接器, -20 → +70 °C

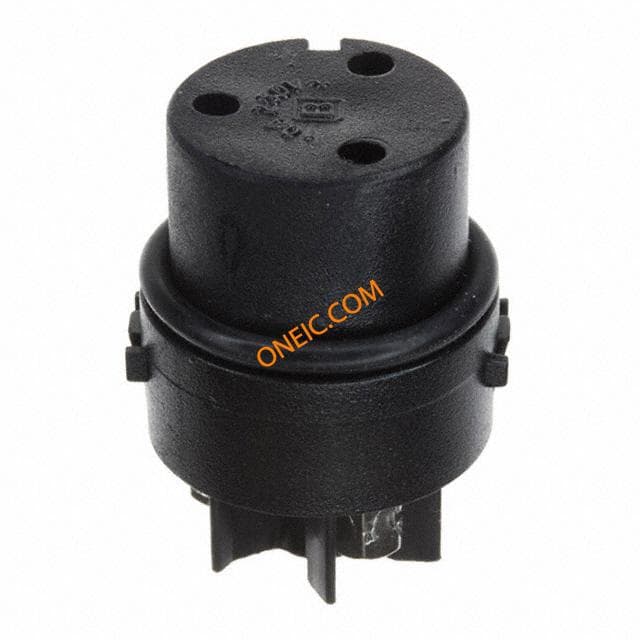

SA3229
Bulgin
Standard Circular Connector 3 POLE SKT INSERT CONN TERM INSERT 3POS SCKT SCREW Female Circular Connector Insert 3 Way For Use With Mini Buccaneer Connector Conn Mini Buccaneer SKT 3 POS Screw ST Cable Mount 3 Terminal 1 Port INSERT, SOCKET, 3WAY Insert;Socket;3-Pole Bulgin 3路 母 连接器插芯, 使用于Mini Buccaneer 连接器, -20 → +70 °C

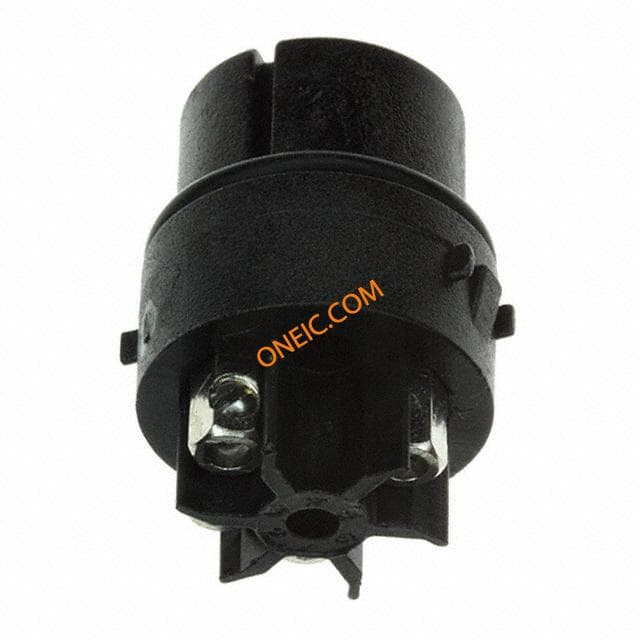

SA3242
Bulgin
Standard Circular Connector 4 POLE SKT INSERT CONN TERM INSERT 4POS SCKT SCREW Female Circular Connector Insert 4 Way For Use With Mini Buccaneer Connector INSERT, SOCKET, 4WAY INSERT,SOCKET,4CONTACTS Bulgin 4路 母 连接器插芯, 使用于Mini Buccaneer 连接器, -20 → +70 °C
12735/1
Bulgin
Standard Circular Contacts CONTACT INSERT 8 SOC CONN HSNG INSERT 8POS SKT Female Circular Connector Insert 8 Way For Use With Mini Buccaneer Connector Conn Mini Buccaneer SKT 8 POS Solder ST Cable Mount 8 Terminal 1 Port SOCKET, CARRIER, 8WAY Bulgin 8路 母 连接器插芯, 使用于Mini Buccaneer 连接器, -20 → +70 °C

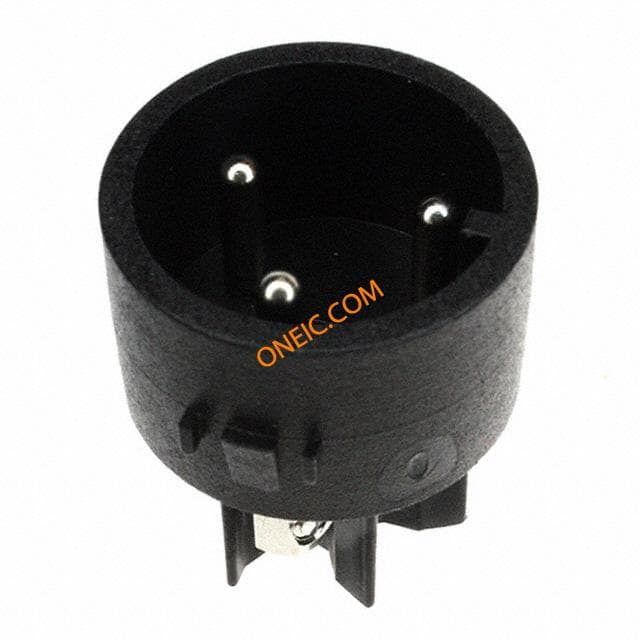

SA3230
Bulgin
Standard Circular Connector 3 POLE PLUG INSERT CONN TERM INSERT 3POS PIN SCREW Male Circular Connector Insert 3 Way For Use With Mini Buccaneer Connector Conn Mini Buccaneer PIN 3 POS Screw ST Cable Mount 3 Terminal 1 Port CIRCULAR INSERT, PIN CONTACT, 3 WAY Insert;Plug;3-PinContacts Bulgin 3路 公 连接器插芯, 使用于Mini Buccaneer 连接器, -20 → +70 °C

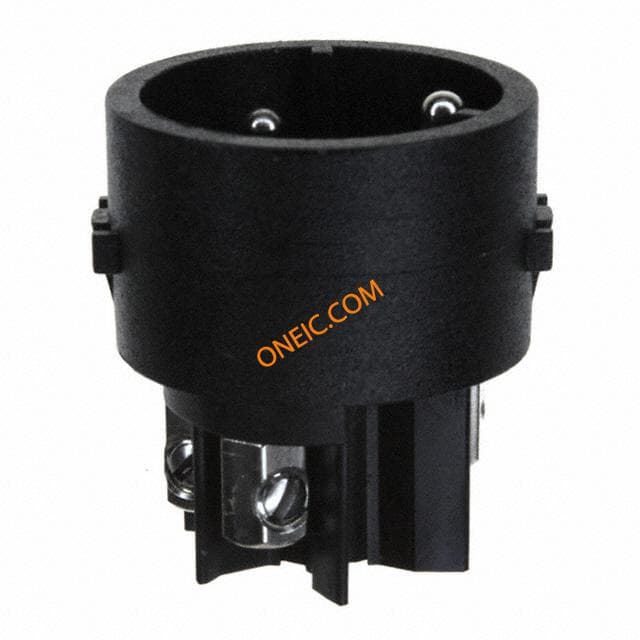

SA3241
Bulgin
Standard Circular Connector 4 POLE PLUG INSERT CONN TERM INSERT 4POS PIN SCREW Male Circular Connector Insert 4 Way For Use With Mini Buccaneer Connector Conn Mini Buccaneer PIN 4 POS Screw ST Cable Mount 4 Terminal 1 Port INSERT, PLUG, 4WAY INSERT,PLUG,4CONTACTS Bulgin 4路 公 连接器插芯, 使用于Mini Buccaneer 连接器, -20 → +70 °C

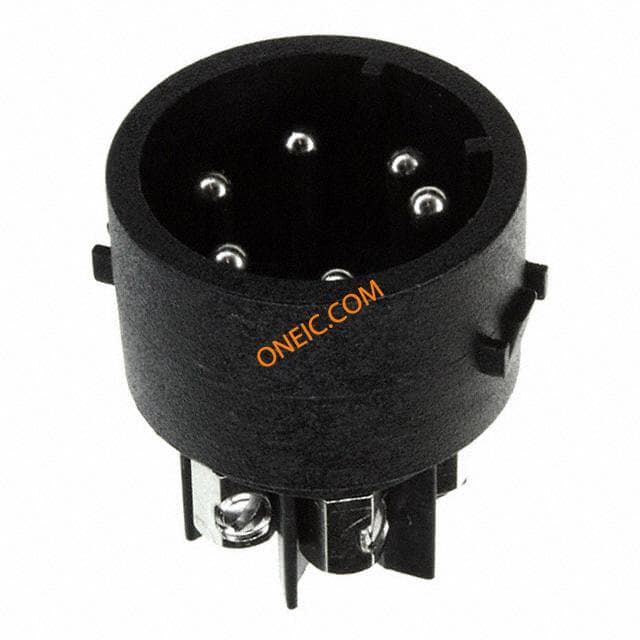

SA3243
Bulgin
Standard Circular Connector 6 POLE PLUG INSERT CONN TERM INSERT 6POS PIN SCREW Male Circular Connector Insert 6 Way For Use With Mini Buccaneer Connector Conn Mini Buccaneer PIN 6 POS Screw ST Cable Mount 6 Terminal 1 Port INSERT, PLUG, 6WAY INSERT,PLUG,6CONTACTS Bulgin 6路 公 连接器插芯, 使用于Mini Buccaneer 连接器, -20 → +70 °C
12734
Bulgin
Standard Circular Connector CARRIER INSERT 8 PIN COLOR GRAY CONN HSNG INSERT 8POS PIN Conn Mini Buccaneer PIN 8 POS Crimp ST Cable Mount 8 Terminal 1 Port
12734/1
Bulgin
Standard Circular Contacts CONTACT INSERT 8 PIN CONN HSNG INSERT 8POS PIN Male Circular Connector Insert 8 Way For Use With Mini Buccaneer Connector Standard Circular Connector CONTACT INSERT 8 PIN Conn Mini Buccaneer PIN 8 POS Solder ST Cable Mount 8 Terminal 1 Port CARRIER, PIN, 8WAY Bulgin 8路 公 连接器插芯, 使用于Mini Buccaneer 连接器, -20 → +70 °C

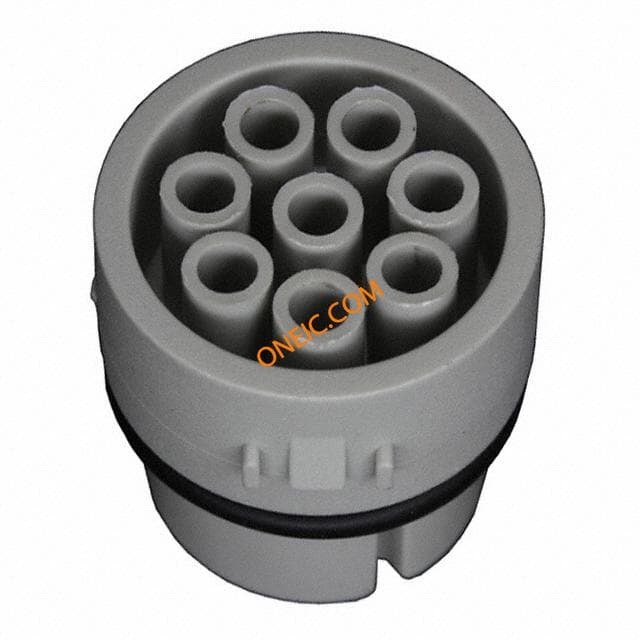

12735
Bulgin
Standard Circular Connector CARRIER INSERT 8 SKT COLOR GRAY CONN HSNG INSERT 8POS SKT Conn Mini Buccaneer SKT 8 POS Crimp ST Cable Mount 8 Terminal 1 Port Contact,Crimp;20-24AWG;Female;ULRecognized

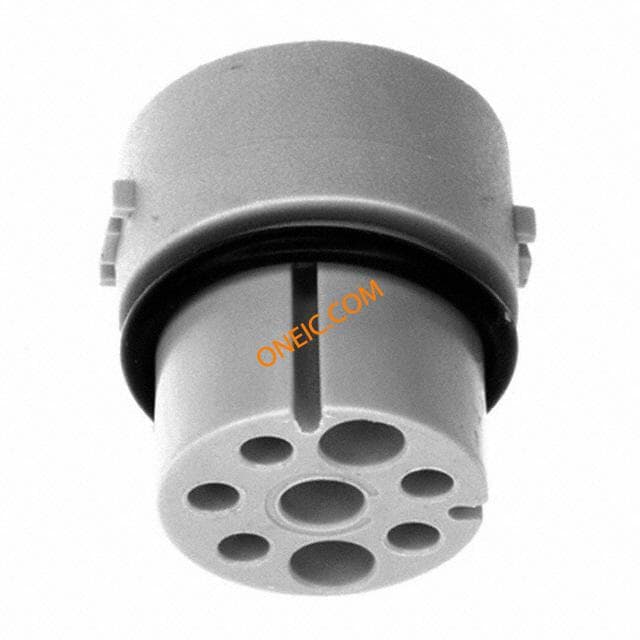

12735/3
Bulgin
Standard Circular Connector CARRIER INSERT 3 SKT COLOR GRAY CONN HSNG INSERT 3POS SKT Conn Mini Buccaneer SKT 3 POS Crimp ST Cable Mount 3 Terminal 1 Port

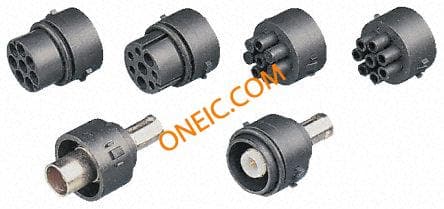

SA3159/1
