点击放大查看

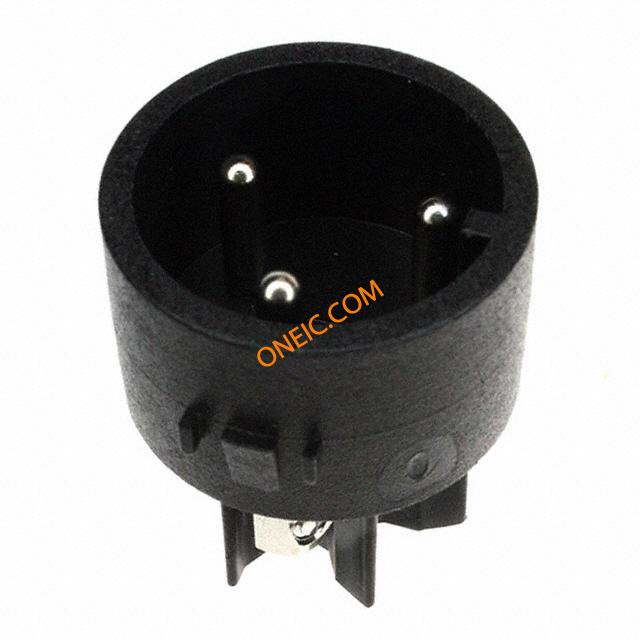

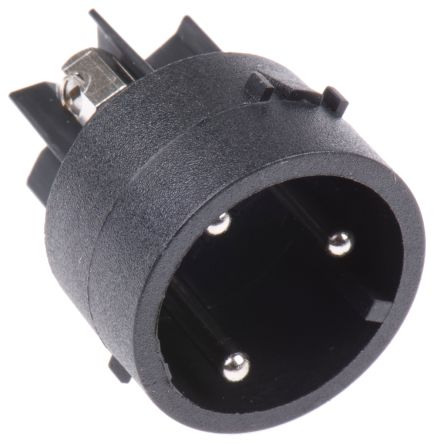

SA3230
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 3 POLE PLUG INSERT CONN TERM INSERT 3POS PIN SCREW Male Circular Connector Insert 3 Way For Use With Mini Buccaneer Connector Conn Mini Buccaneer PIN 3 POS Screw ST Cable Mount 3 Terminal 1 Port CIRCULAR INSERT, PIN CONTACT, 3 WAY Insert;Plug;3-PinContacts Bulgin 3路 公 连接器插芯, 使用于Mini Buccaneer 连接器, -20 → +70 °C |
| 分类 |
商业参数
| 其他名称 | 708-1248 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | 250VAC | 接触电阻 | :5mohm |
| 最大额定电流 | 10A | ||
机械参数
| 重量 | 0.004 | 包装方式 | Bulk |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Screw | 外壳镀层 | Gold over Nickel |
| 连接器类型 | Insert, Male Pins | 接触镀层 | Nickel |
| 安装样式 | Free Hanging | 插入角度 | :- |
| 触头材料 | :Brass | 端接样式 | Screw |
| 第一触头极性 | :Pin | 触点数 | 3 |
| 接触件端接 | :Screw | 位数 | 3 |
| 外壳尺寸-插件 | :- | 线规或范围 - mm² | :1mm² |
| 外径-未扩张 | :7mm | ||
产品信息
| 连接器性别 | Male | 系列 | Buccaneer Mini |
| 产品特性 | Insert Only, Requires Shell | 产品子类型 | Connectors |
| 适用产品/相关产品 | Mini Buccaneer Connector | ||
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68 - Dust Tight, Waterproof |
| 工作温度 | -20°C ~ 70°C | ||
