点击放大查看

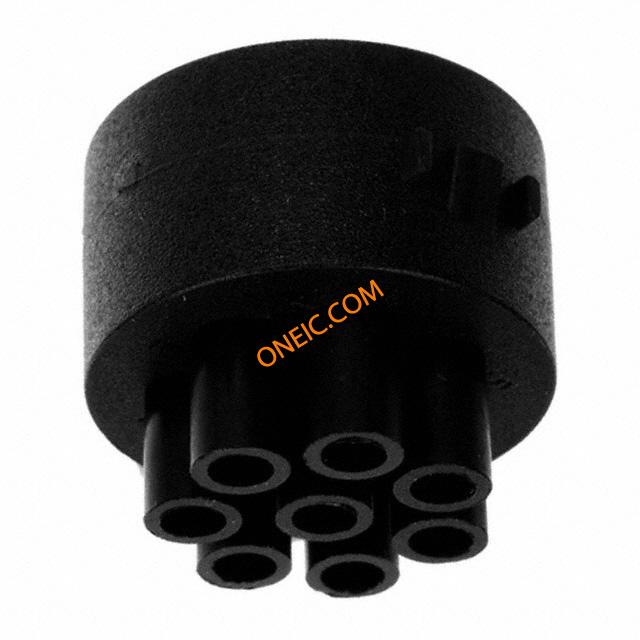

12734/1

制造商	Bulgin
描述	Standard Circular Contacts CONTACT INSERT 8 PIN CONN HSNG INSERT 8POS PIN Male Circular Connector Insert 8 Way For Use With Mini Buccaneer Connector Standard Circular Connector CONTACT INSERT 8 PIN Conn Mini Buccaneer PIN 8 POS Solder ST Cable Mount 8 Terminal 1 Port CARRIER, PIN, 8WAY Bulgin 8路公连接器插芯, 使用于Mini Buccaneer 连接器, -20 → +70 °C
分类	连接器解决方案圆形连接器标准圆形连接器

对参数有疑问？问 AI 助手

商业参数

产品类别	Standard Circular Connector	标准包装数量	50
工厂包装数量	50

合规参数

RoHS

Compliant

海关税号

85369010

电气参数

额定电压	380 V	工作电压	:380V
接触电阻	:5mohm	最大额定电流	10 A

机械参数

重量	0.002	材料（通用）	:Black Nylon
包装方式	Bulk	导线线规	:0.2m²
方向	Keyed	触头类型	Solder Cup
连接器类型	Insert for Male Contacts	接触镀层	:Gold
插入角度	:-	触头材料	:Copper
壳体材料	Polyamide (PA)	第一触头极性	Pin
触点数	8	接触件端接	:Crimp / Solder
位数	8	外壳尺寸-插件	:-
外壳材料及表面处理	Polyamide	线规或范围 - mm²	:1m²
外径-未扩张	:7mm

产品信息

备注	Contacts Not Provided	连接器性别	Male
系列	Buccaneer	产品特性	Insert Only, Requires Shell
附件类型	Contact Carrier Inserts	适用产品/相关产品	Mini Buccaneer Connector

环境参数

NEMA 机架尺寸	:IP68	防护等级	IP68 - Dust Tight, Waterproof
工作温度	+70°C

文档与媒体

PDF 文档

Mini Buccaneer

PDF 文档

308317.pdf

在线文档

BuccaneerMini.html

相关型号

SA3148/1

Bulgin

Standard Circular Contacts GOLD PLATED PIN SOLD 1 = 1 PKT of 10/pcs CONT PIN SOLDER 20-24AWG 1=10PC Contact PIN Solder ST Cable Mount CIRCULAR CONTACT, PIN, 24-20 AWG, SOLDER

¥11.0840

详情

暂无图片

PX0800/07

Bulgin

Standard Circular Connector FLEX CBL CON BODY CONN HSNG INSERT SHELL CABLE Connector Accessories Circular Body With Cable Gland Polyamide

¥22.9840

详情

PX0803

Bulgin

Standard Circular Connector CHAS MT R/A BODY CONN HSNG INSERT SHELL PNL R/A Connector; Flux In-Line; Screw; lt 5; -20 to degC; Copper Alloy; Gold; UL94V-0 Connector Accessories Circular Body Polyamide BODY, CHASSIS, R/A Connector;FluxIn-Line;Screw;lt5;-20todegC;CopperAlloy;Gold;UL94V-0

¥27.1800

详情

PX0802

Bulgin

Standard Circular Connector CHASSIS MT BODY CONN HSNG INSERT SHELL PNL MNT Industrial & Automation Circular Connector Connector Accessories Circular Body Polyamide BODY, CHASSIS Bulgin 连接器

¥18.1200

详情

PX0801

Bulgin

Standard Circular Connector IN-LINE CONN. BODY CONN HSNG INSERT SHELL INLINE IP68 compact inline coupler shell Connector Accessories Circular Body Polyamide CircularCableConnector;3.5to9mm;ULListed

¥18.1200

详情

PX0800

Bulgin

Standard Circular Connector FLEX CBL CON BODY CONN HSNG INSERT SHELL CABLE Industrial & Automation Circular Connector Connector Accessories Circular Body Polyamide CIRCULAR SHELL, 26X61.5MM, POLYAMIDE CircularCableConnector;3.5to9mm;ULListed Bulgin Buccaneer 系列直向连接器

¥18.1200

详情

PX0805

Bulgin

Standard Circular Connector CHASSIS MT BODY CONN HSNG INSERT SHELL PNL MNT Industrial & Automation Circular Connector Connector Accessories Circular Body Polyamide CIRCULAR CHASSIS, POLYAMIDE Connector;FluxIn-Line;Screw;lt5;-20todegC;CopperAlloy;Gold;UL94V-0 Bulgin 连接器

¥18.1200

详情

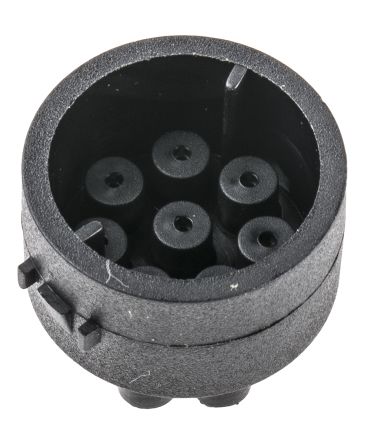

12735/1
