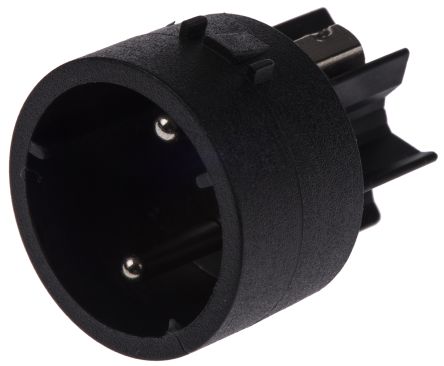

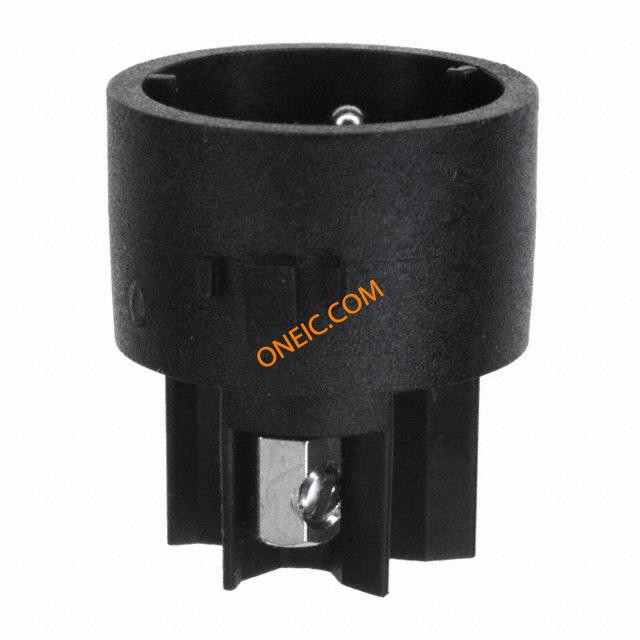

SA3320
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 2 POLE PLUG INSERT CONN TERM INSERT 2POS PIN SCREW Male Circular Connector Insert 2 Way For Use With Mini Buccaneer Connector Conn Mini Buccaneer PIN 2 POS Screw ST Cable Mount 2 Terminal 1 Port INSERT, PLUG, 2WAY MiniBuccaneer,ScrewTerminalInserts,IP68,Pin,2Poles,NickelPltdContcts Bulgin 2路 公 连接器插芯, 使用于Mini Buccaneer 连接器, -20 → +70 °C |
| 分类 |
商业参数
| 其他名称 | 708-1247 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Compliant | 海关税号 | 85366990 |
电气参数
| 额定电压 | 250VAC | 工作电压 | :250V |
| 接触电阻 | :5mohm | 最大额定电流 | 10A |
机械参数
| 重量 | 0.004 | 包装方式 | Bulk |
| 导线线规 | :0.2mm² | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Screw |
| 外壳镀层 | Gold over Nickel | 连接器类型 | Insert, Male Pins |
| 接触镀层 | Nickel | 安装样式 | Free Hanging |
| 插入角度 | :- | 触头材料 | :Copper |
| 端接样式 | Screw | 第一触头极性 | :Pin |
| 触点数 | 2 | 接触件端接 | :Screw |
| 位数 | 2 | 外壳尺寸-插件 | :- |
| 线规或范围 - mm² | :1mm² | 外径-未扩张 | :7mm |
产品信息
| 连接器性别 | Male | 系列 | Buccaneer Mini |
| 产品特性 | Insert Only, Requires Shell | 产品子类型 | Connectors |
| 适用产品/相关产品 | Mini Buccaneer Connector | ||
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68 - Dust Tight, Waterproof |
| 工作温度 | -20°C ~ 70°C | ||
