点击放大查看
1673J 010100
| 制造商 | |
| 描述 | Coaxial Cables 19AWG 1C SHIELD 100ft SPOOL BLACK COAXIAL CABLE; 19AWG; SOLID; 50 OHM; CONFORMABLE; RG-402/U; PVC JACKET BLACK; 30m COAXIAL CABLE, 19AWG, SOLID, 50 OHM, CONFORMABLE, RG-402/U, PVC JACKET BLACK |
| 分类 |
商业参数
| 产品类别 | Coaxial Cables | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 阻抗 | 50 Ohms | 连接器阻抗 | RG402 / U |
机械参数
| 长度 | 100 ft | 重量 | 5 lbs |
| 屏蔽 | Shielded | 导线线规 | 19 |
| 导体材料 | Silver Plated Copper Covered Steel | 外径 | 0.178 in |
| 电缆对数 | Solid | 护套（绝缘）材料 | Polyvinyl Chloride - PVC |
产品信息
| 系列 | 1673J | 位置/触点数量 | 1 |
环境参数
| 最高温度限值 | + 105 C | ||
文档与媒体
相关型号

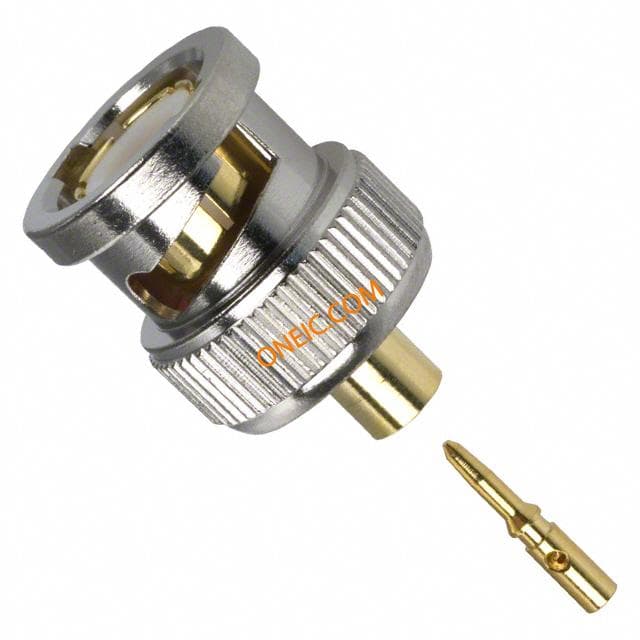

112551
amphenol connex
Conn BNC PL 0Hz to 4GHz 50Ohm Solder ST Cable Mount Gold CONN BNC PLUG STR 50 OHM SOLDER connector;rf coaxial;bnc str solder plug;for 0.141 semi-rigid cable;50 ohm RF Connectors / Coaxial Connectors BNC STRAIGHT SOLDER PLUG .141 SEMI RIGID RF/COAXIAL, BNC PLUG, STR, 50 OHM, SOLDER connector, rf coaxial, bnc str solder plug, for 0.141 semi-rigid cable, 50 ohm

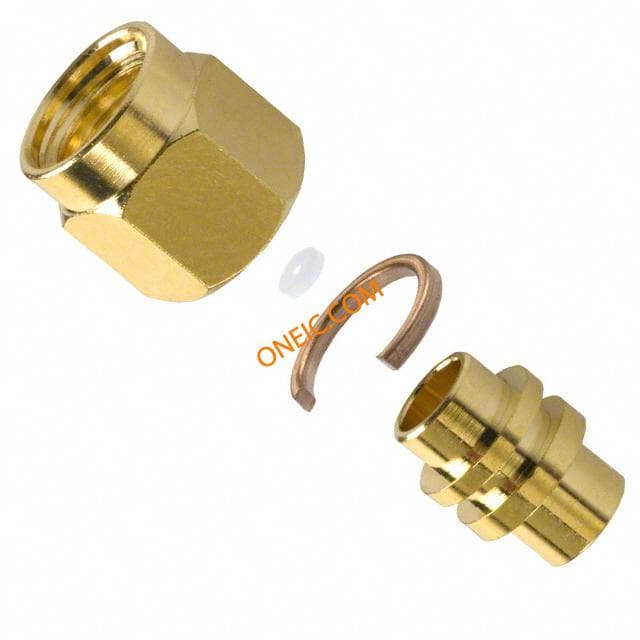

132100
amphenol connex
Conn SMA PL 0Hz to 18GHz 50Ohm Solder ST Cable Mount Gold CONN SMA PLUG STR 50 OHM SOLDER connector;rf coaxial;sma str solder plug;cable center cont;for 0.141 semi-rigid RF Connectors / Coaxial Connectors SMA ST PLUG SOLDER NO CONTACT .141 S/R RF/COAXIAL, SMA PLUG, STR, 50 OHM, SOLDER connector, rf coaxial, sma str solder plug, cable center cont, for 0.141 semi-rigid
122386
amphenol connex
Conn TNC PL 0Hz to 11GHz 50Ohm Solder ST Cable Mount Gold CONN TNC PLUG STR 50 OHM SOLDER connector;rf coaxial;tnc straight solder plug;for .141 semi-rigid cable RF Connectors / Coaxial Connectors TNC STRAIGHT SOLDER PLUG .141 SEMI RIGID connector, rf coaxial, tnc straight solder plug, for .141 semi-rigid cable

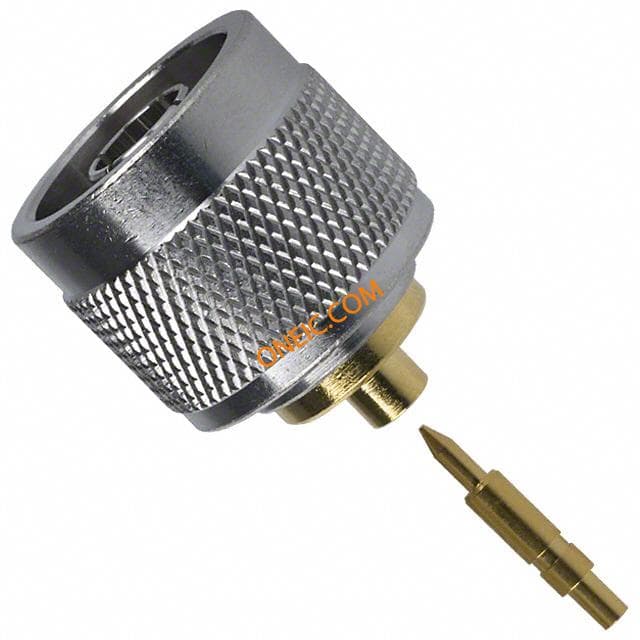

172133
Amphenol Connex
RF Connectors N ST PLUG SOLDER .141 SEMI RIGID Conn Type N PL 0Hz to 11GHz 50Ohm Solder ST Cable Mount Gold CONN N PLUG STR 50 OHM CRIMP connector;rf coaxial;n straight solder plug;for 0.141 semi-rigid cable;50 ohm RF/COAXIAL, N PLUG, STR, 50 OHM, SOLDER
