点击放大查看

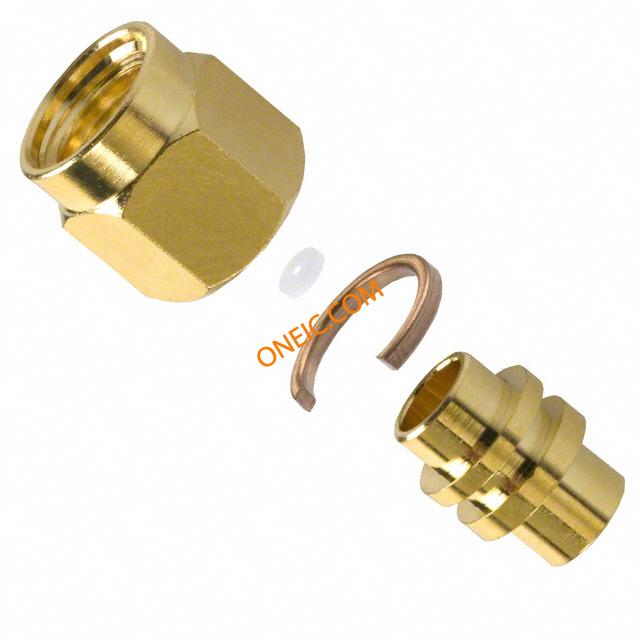

132100
| 制造商 | |
| 描述 | Conn SMA PL 0Hz to 18GHz 50Ohm Solder ST Cable Mount Gold CONN SMA PLUG STR 50 OHM SOLDER connector;rf coaxial;sma str solder plug;cable center cont;for 0.141 semi-rigid RF Connectors / Coaxial Connectors SMA ST PLUG SOLDER NO CONTACT .141 S/R RF/COAXIAL, SMA PLUG, STR, 50 OHM, SOLDER connector, rf coaxial, sma str solder plug, cable center cont, for 0.141 semi-rigid |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Connectors | 其他名称 | ACX1175 |
| 零件号别名 | 319-0140 66H7620 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | ||
电气参数
| 频率 | 0 to 18 GHz | 阻抗 | 50 Ohm |
| 耦合系数 | Threaded | 最大频率 | 18GHz |
机械参数
| 深度 | 8 | 重量 | 0.072664 oz |
| 包装方式 | Bulk | 电缆类型 | RG-402, 0.141 Semi-Rigid |
| 本体表面处理 | Gold | 电缆组 | RG-402 (.141" Semi Rigid) |
| 方向 | Straight | 端接方式 | Solder |
| 基体材料 | Brass | 外壳颜色 | Gold |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Plug, Male Pin | 接触镀层 | Gold |
| 紧固类型 | Threaded | 外壳涂层 | Gold |
| 壳体镀层 | Gold | 连接器样式 | SMA |
| 连接器用途 | Threaded | 触头材料 | Brass |
| 壳体材料 | Brass | 总长度 | 8.6 |
| 主要材料 | SMA | 端接样式 | Cable - Solder |
| 屏蔽层端接方式 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 供应商器件封装 | Straight | ||
产品信息
| 类型 | SMA | 连接器性别 | PL |
| 系列 | :- | 极性 | Standard |
| 连接类型 | Semi-Rigid Cable | 射频系列/标准 | 132100 |
| 应用细节 | Commercial | ||
环境参数
| 插拔次数 | 500 | 防护等级 | Weatherproof |
| 工作温度 | -65°C ~ 165°C | ||
